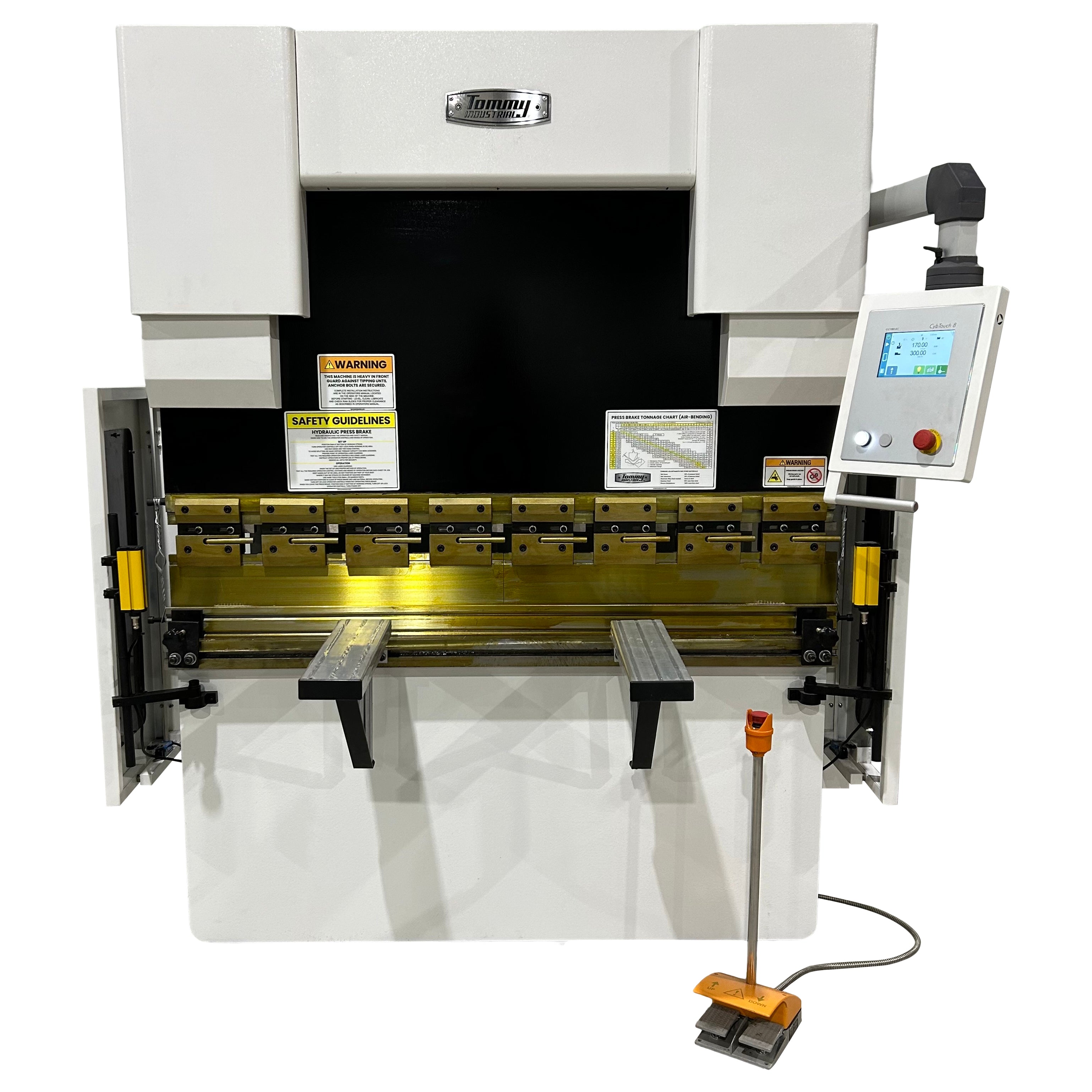

LIMITED-STOCK 70 TON 5' Hydraulic Press Brake

$34,995.00
Sku: TIHB70-5

Power and Capability in Your Shop!

  • 70 Tons of Pressure,
  • 63" Table Length
  • Compact Footprint,
  • 220 volt 3 phase,



Tommy Industrial® hydraulic press brakes provide exceptional performance by utilizing high quality components, resulting in a precise machine that delivers accurate bends time and time again.

All Tommy Industrial® press brakes start out as base machines that include many standard features as listed below.  However, we understand that some customers may require a more advanced press brake; that’s why we offer many advanced controller systems and machine options that will meet and exceed your needs, surpass expectations, and meet your budget.

When manufacturing our Tommy Industrial® press brakes, we only use the best steel and components available, some brand name components included are:

  • Nantong electric motors, CE
  • Schneider electric components, CE
  • NOK cylinder seals
  • HYTEI Sunny Series hydraulic pump
  • Anxie / Chaojie light curtains, CE
  • Rexroth hydraulic valves, CE
  • WEIDMULLER wiring terminal block



STANDARD EQUIPMENT INCLUDES:

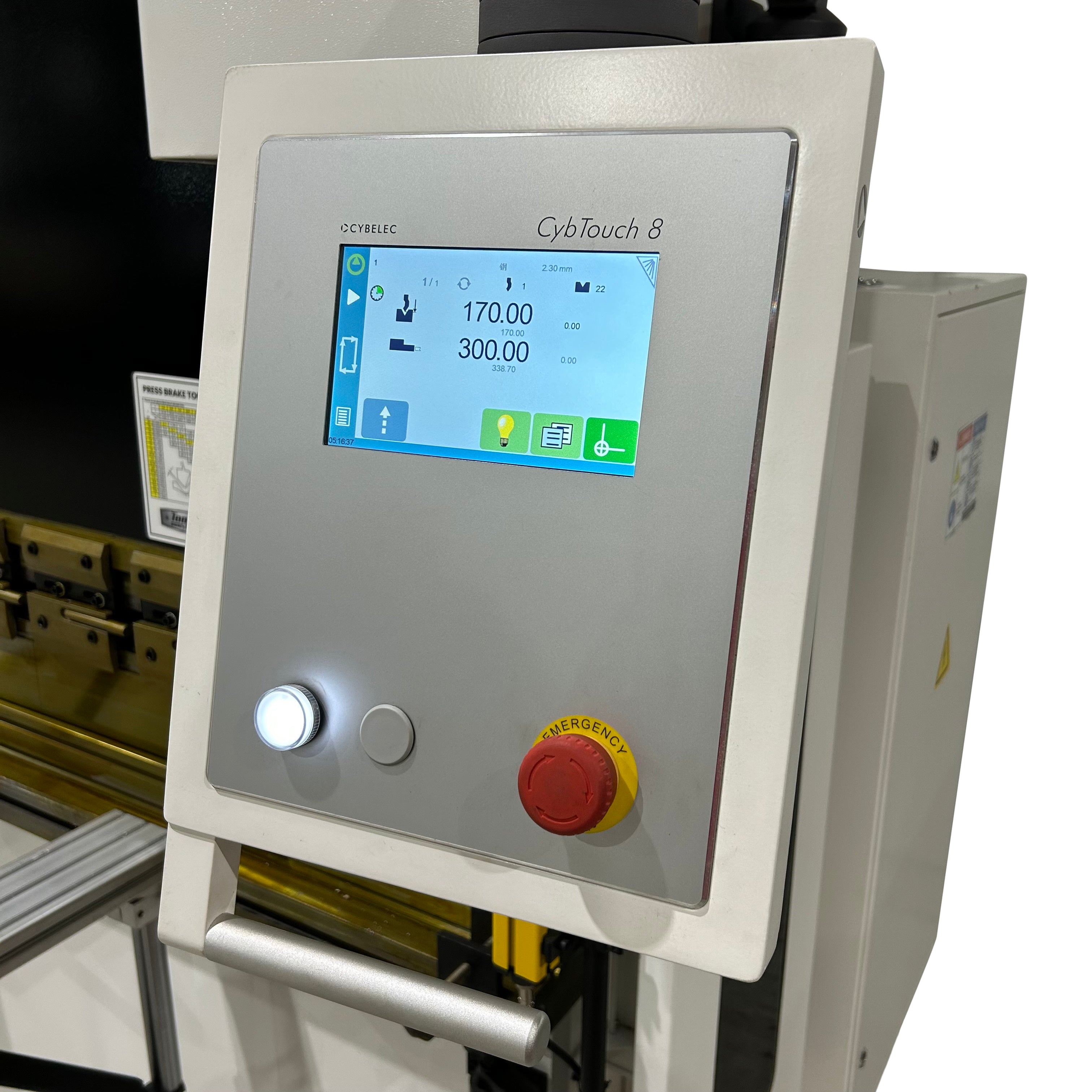

  • Cybelec CT8 control system with three modes of operation: inching, single, continuous.
  • Heavy duty torsion Bar to ensure parallelism
  • Three speed ram, rapid approach, bending cycle with dwell time and rapid retreat.

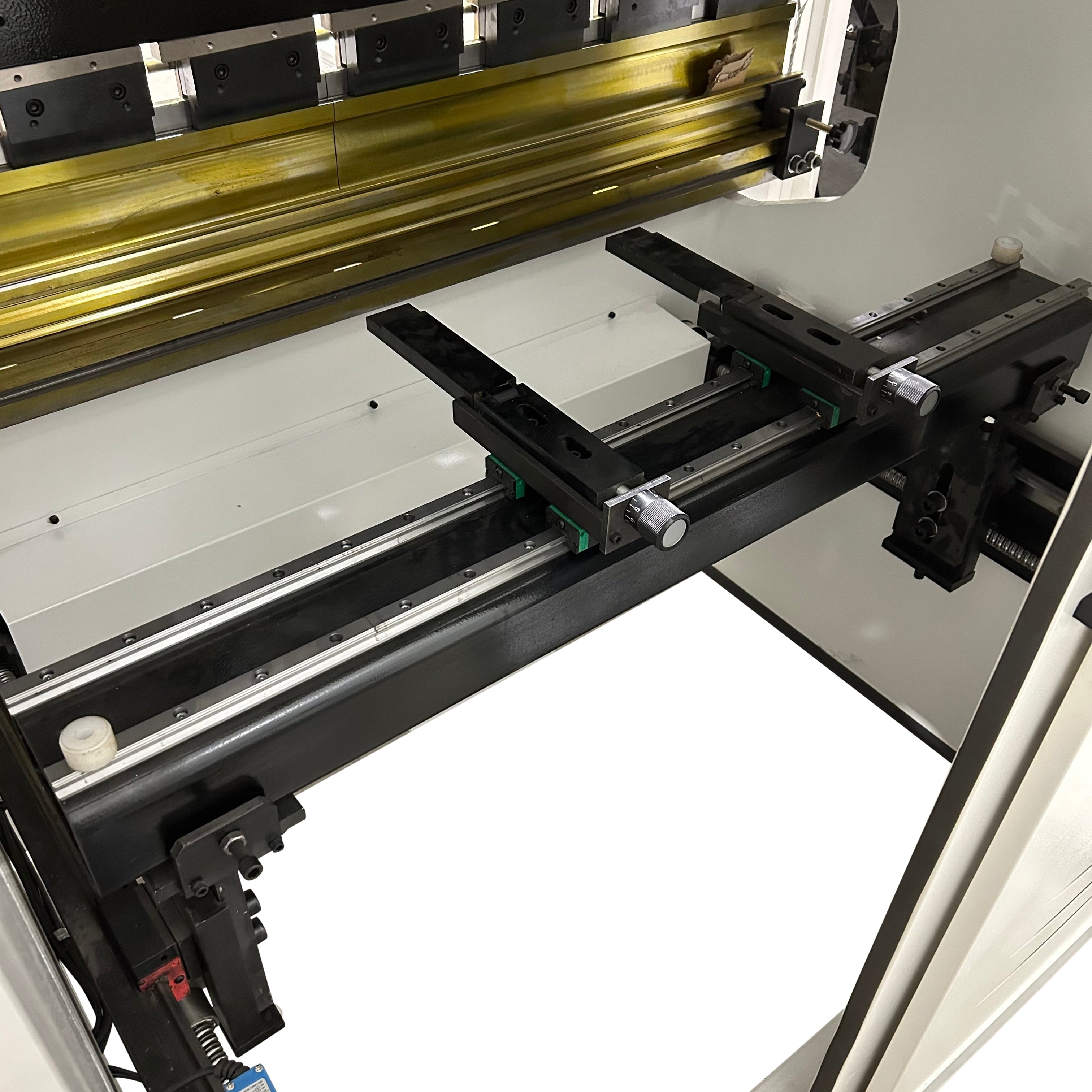

  • Electric motor powered front operated back gauge, with fine adjustment fingers.
  • Power ram depth control, motorized with fine adjustment via control panel.
  • Control panel display for backgauge position and ram position.
  • Heavy duty fully welded all steel frame with ISO marked lifting lugs.
  • Fully adjustable material support arms.
  • Light curtain safety system.
  • Emergency stop buttons conveniently located on control panel and foot control.
  • Quick change top punch holders that allows for deep box bending.
  • Universal flat bed with front T slot for infinite adjustment of die capture clamps.
  • Side guards with acrylic window and safety sensors.
  • Space saving sliding door with safety sensors.
  • General purpose goose-neck punch and multi-opening die with lifting chains (see note below).*



 Common applications for this machine include.**

    • Bending and forming metal
    • End-forming metal pipes with flatten, trim and punch tooling, up to  3" outside diameter
    • Tube and pipe punching with mandrel die set
    • Square tube punching with mandrel die set
    • Punching flat metal plate or bar stock
    • Punching multiple holes simultaneously, 2,3,4,5,6 hole punching.
    • Large radius plate corner rounding die set
    • Broaching with broaching tooling set
    • Straighten metal
    • Metal forming
    • Cold bending
    • Pipe and tube bending
    • Trim and part die set
    • Double trim and part die set
    • Other custom applications

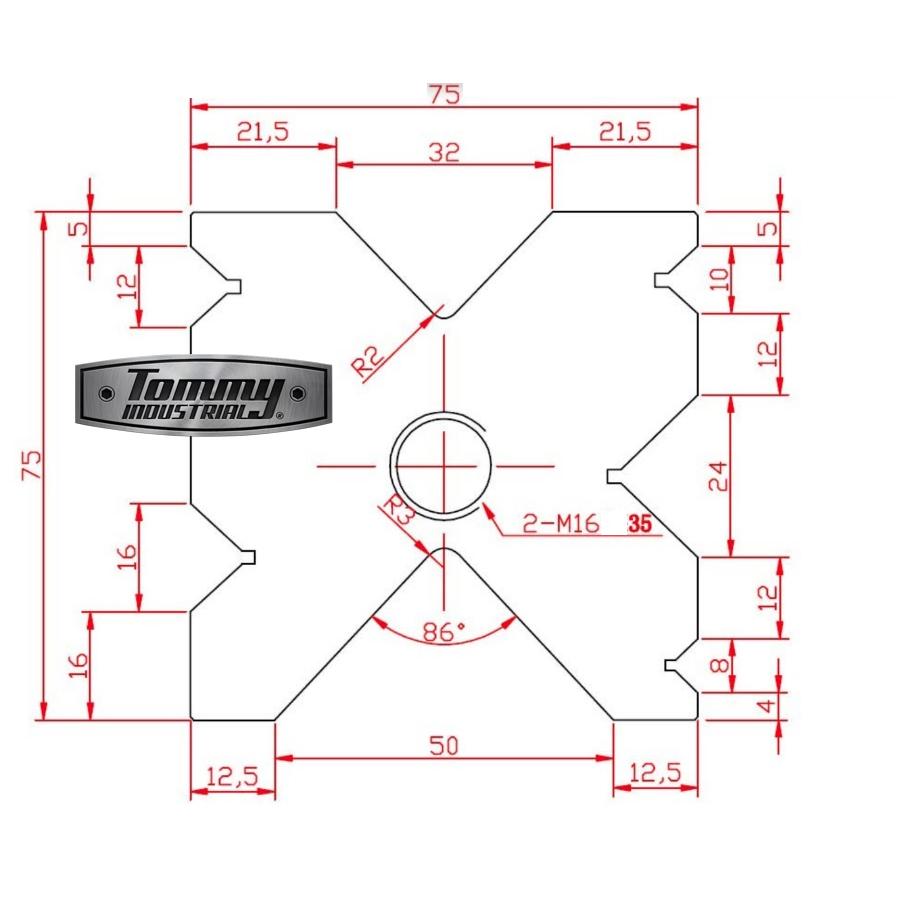

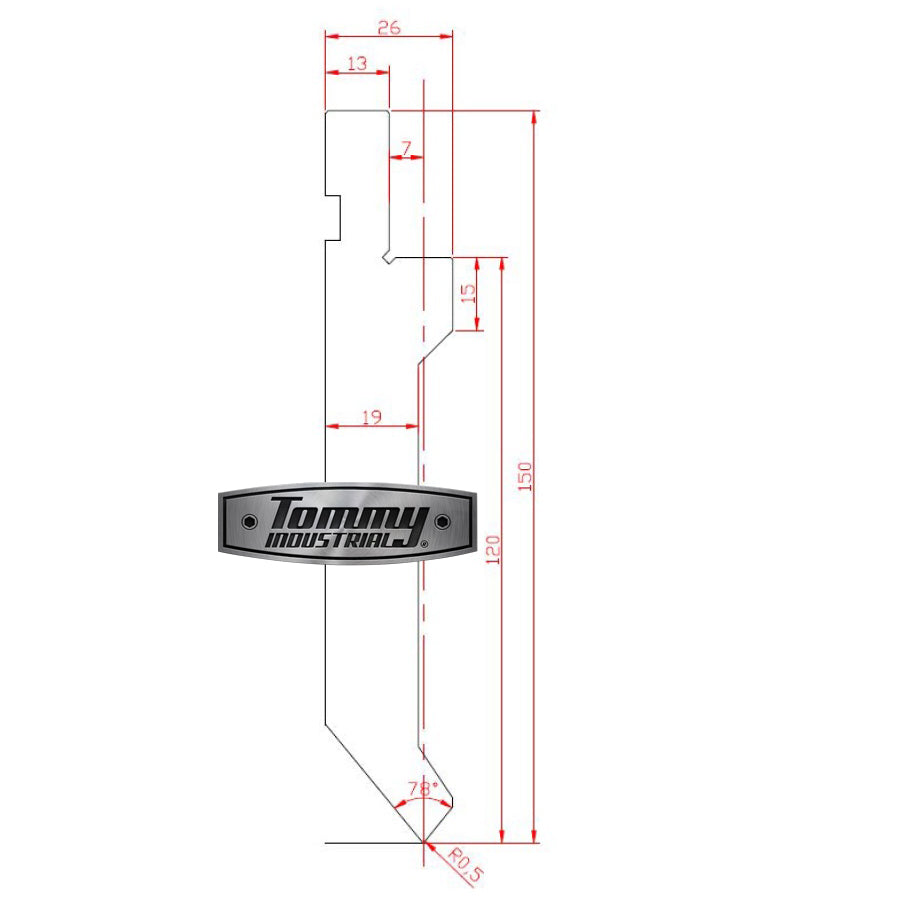

*Note: This Tommy Industrial® press brake includes a general-purpose goose-neck punch and multi-opening die.  The included general-purpose goose-neck punch and multi-opening die are for training purposes only. There is no warranty on these items.  End user should purchase tooling to meet their unique needs and specifications.

**Applications may require additional tooling.

Model TIHB70-5 Specifications
Item Imperial Metric
Working area Pressure force 70 ton 630 kN
Brake length 63in 1600 mm
Distance between columns 51in 1300 mm
Throat 11.02 in 280 mm
Clear opening 14.96” 380mm
Bending speed .35”/sec 9mm/sec
Rapid feed 2.56”/sec 65mm/sec
Return speed 2.36”/sec 60mm/sec
Drive capacity Motor rating main drive 3P 220V 60Hz  7.4 hp 5.5 kW
Measures and weights Hydraulic tank volume 49 gal 185 L
Overall dimensions (length x width x height) 78x60x89 in 1956x1524x2260 mm
Weight 6586 lbs 2987 kg

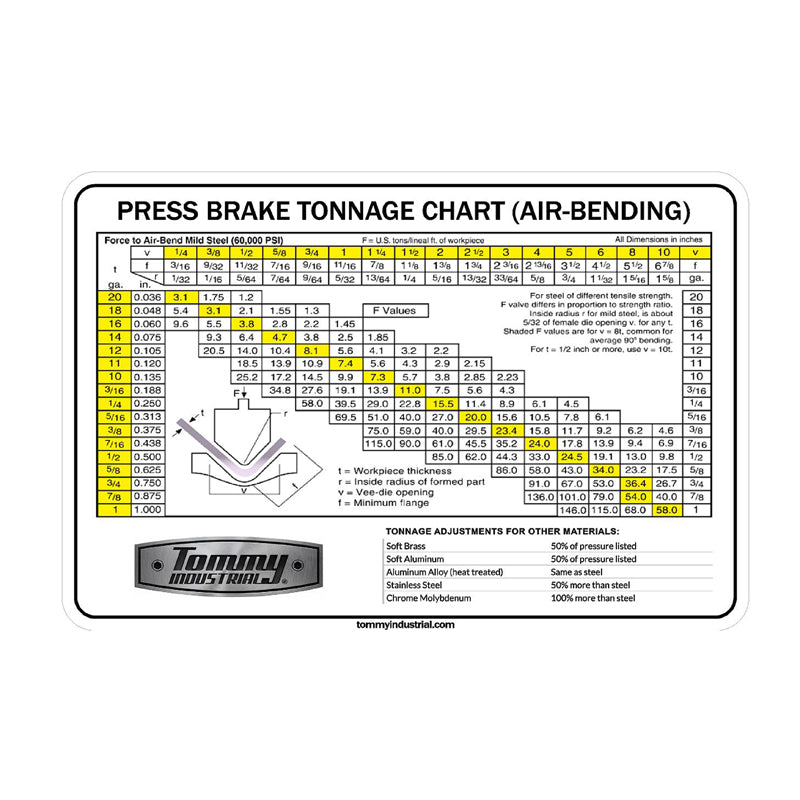

Press Brake Tonnage Chart
