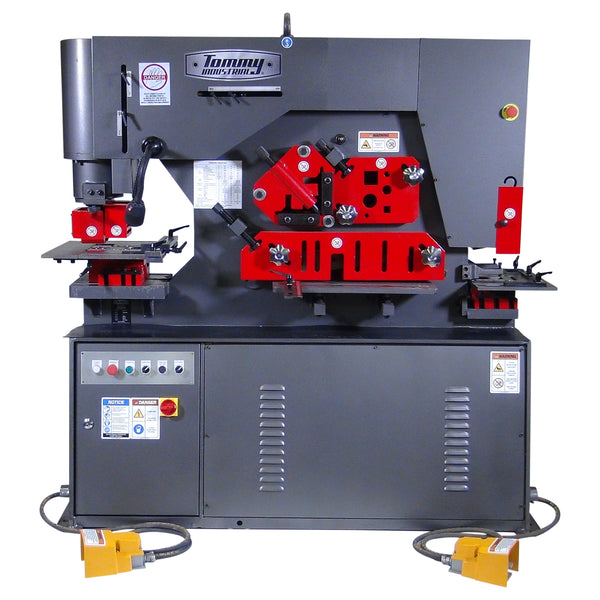

101 Ton Hydraulic Ironworker

IWT-101

$18,990.00 USD

Our most Popular Ironworker! 220V 1 Phase 101 Ton Hydraulic Ironworker with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 13.97” Throat Depth. 3.14” Maximum Stroke Length. Up to 22 Strokes Per Minute.

Features Include:

  • Punch and Die Starter Set: 9 sizes: 3/16in., 5/16in., 7/16in., 9/16in., 11/16in., 13/16in., 15/16in., 1 1/16in, 22mm.
  • Five Integrated Work Stations (punch, flat bar shear, angle iron shear, square/round bar shear, notcher)
  • Swing-away Stripper Assembly

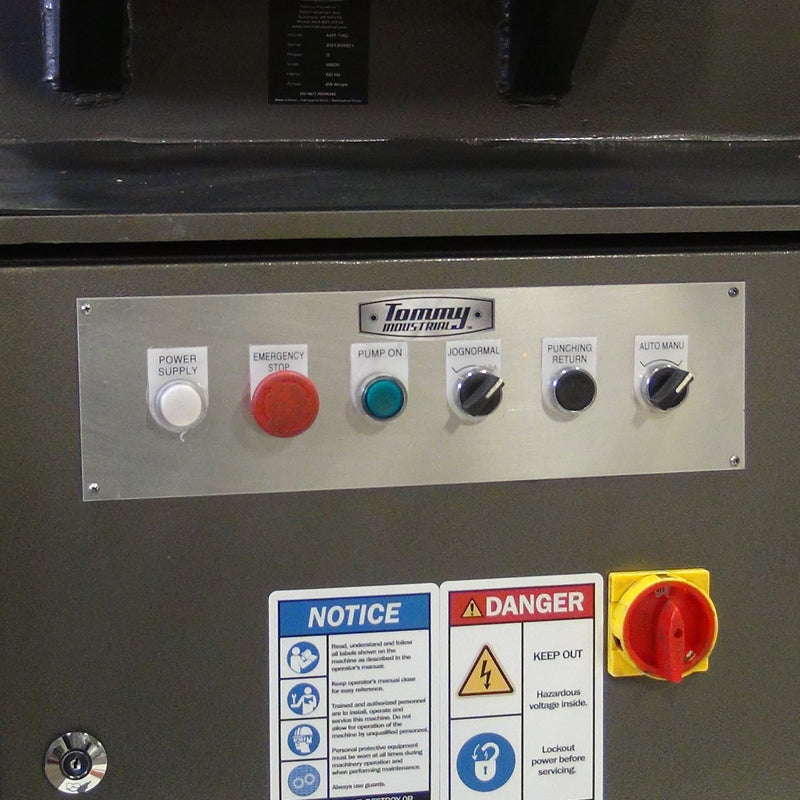

  • Electric Stroke Control
  • Large Gauging Tables
  • LED Lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly
  • Electric Back Gauge

Model IWT-101 Specifications
Item Imperial Metric
Hole punching Punching pressure 101 Ton 900 KN
Max. Punching Thickness .78" 20mm
Max. Diameter of Punching 1.18" 30mm
Depth of Throat 13.97" 355mm
Max. Length of Cylinder Stroke 3.14" 80mm
Stroke times (times/min) 8-22 8-22
Flat-bar Shearing Angle of shear
Max. Shearing Thickness .78" 20mm
Flat Bar (WxT) 18.89" x .39" 480mm x 10mm
13" x .78" 330mm x 20mm
Angle Steel Shearing 90° Shearing of Equal Angle Steel 5.5" x 5.5" x .47" 140mm x 140mm x 12mm
45° Shearing of Equal Angle Steel 2.76" x 2.76" x .39" 70mm x 70mm x 10mm
Profile Steel Shearing Round-bar 1.96" 50mm
Square-bar 1.77" x 1.77" 45mm x 45mm
T-bar* 5.51" x 2.76" x .47" 140mm x 70mm x 12mm
I-beam* 6.30" x 3.39" x .24" 160mm x 86mm x 6mm
C-channel* 6.30" x 2.36" x .26" 160mm x 60mm x 6.5mm
Notching Thickness .51" 13mm
Width 2.24" 57mm
Depth 3.93" 100mm
Material Tensile Strength 65,267 PSI 450 N/mm²
Motor Power (220V 1 Phase) 7.5 HP 5.5 KW
Overall Dimensions (LxWxH) 77" x 35" x 76" 1950mm x 900mm x 1930mm
Gross Weight 5,732 lbs 2600 Kg
* denotes optional tooling.
