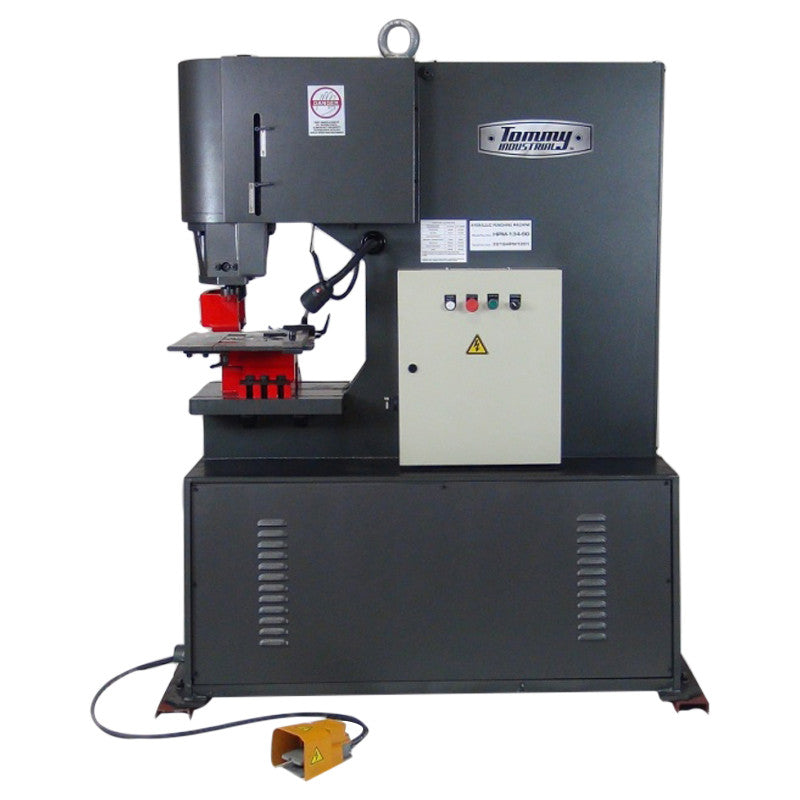

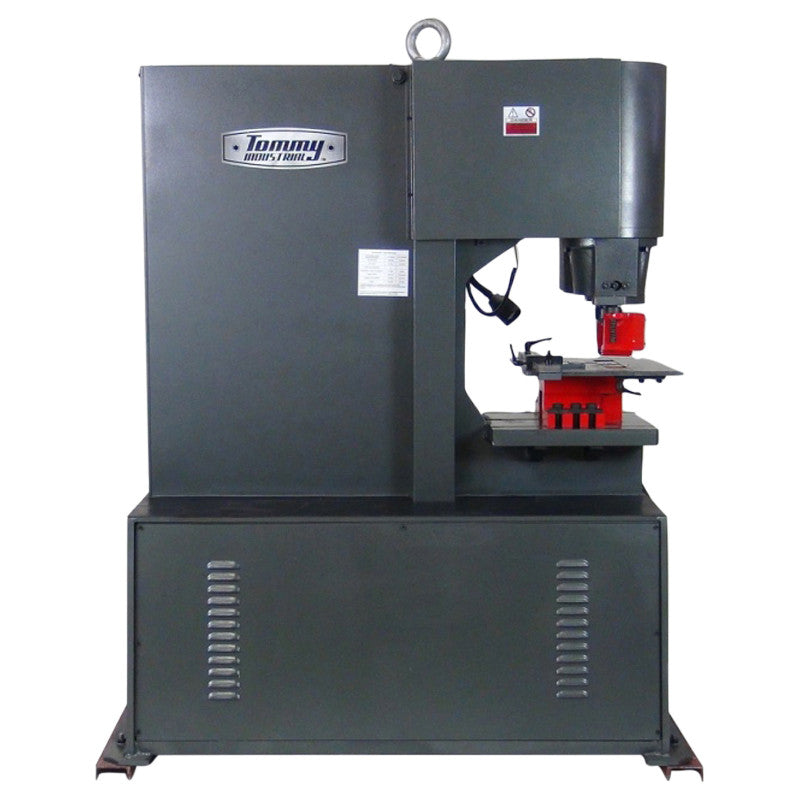

101 Ton Hydraulic Punching Machine
HPM-101
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
Our Most Popular! 220V 3Phase 101 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 13.97” Throat Depth. 3.14” Maximum Stroke Length. Up to 22 Strokes Per Minute.
- Super commercial all-welded construction

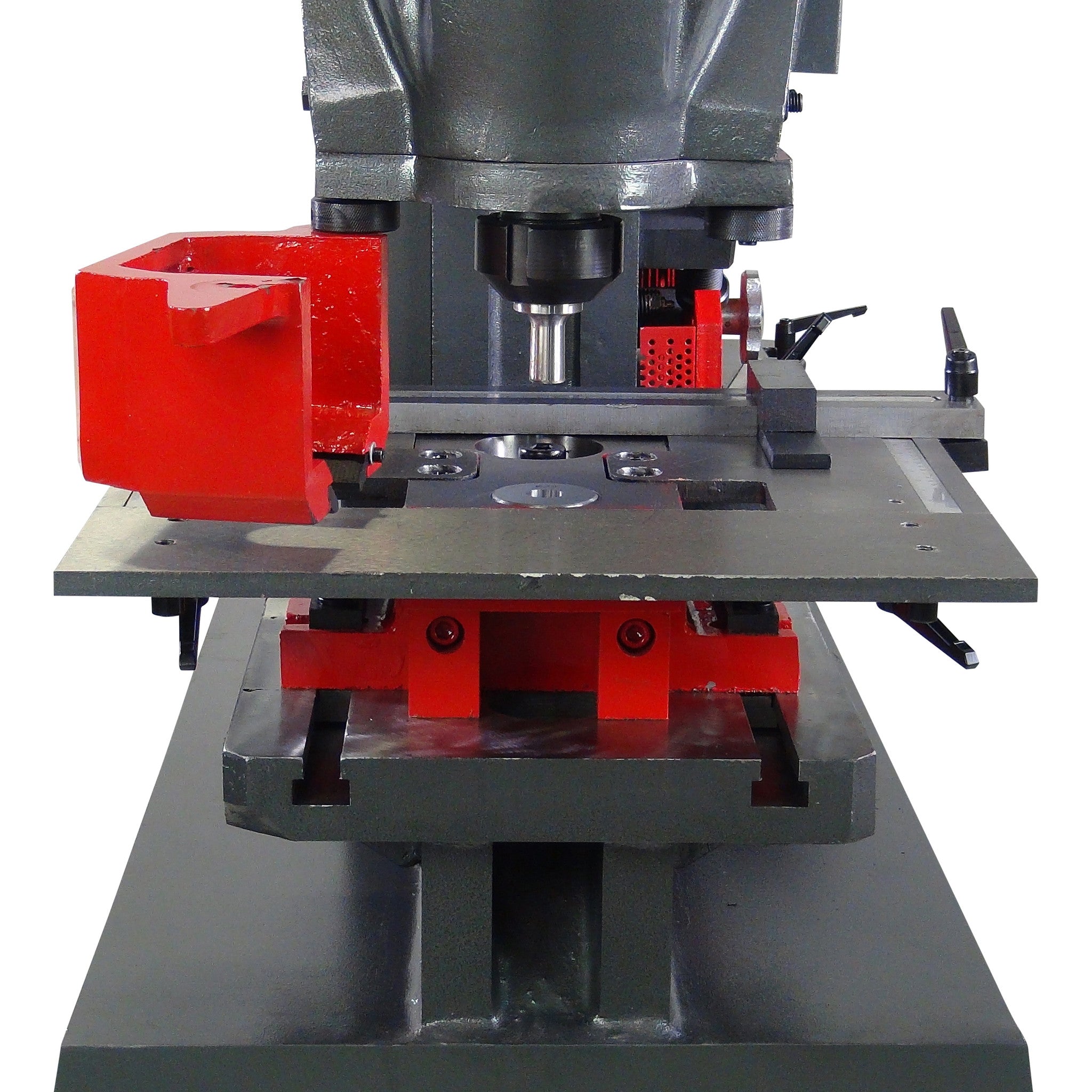

- Large oversized punching table with quick change punch coupler
- Endless custom tooling possibilities

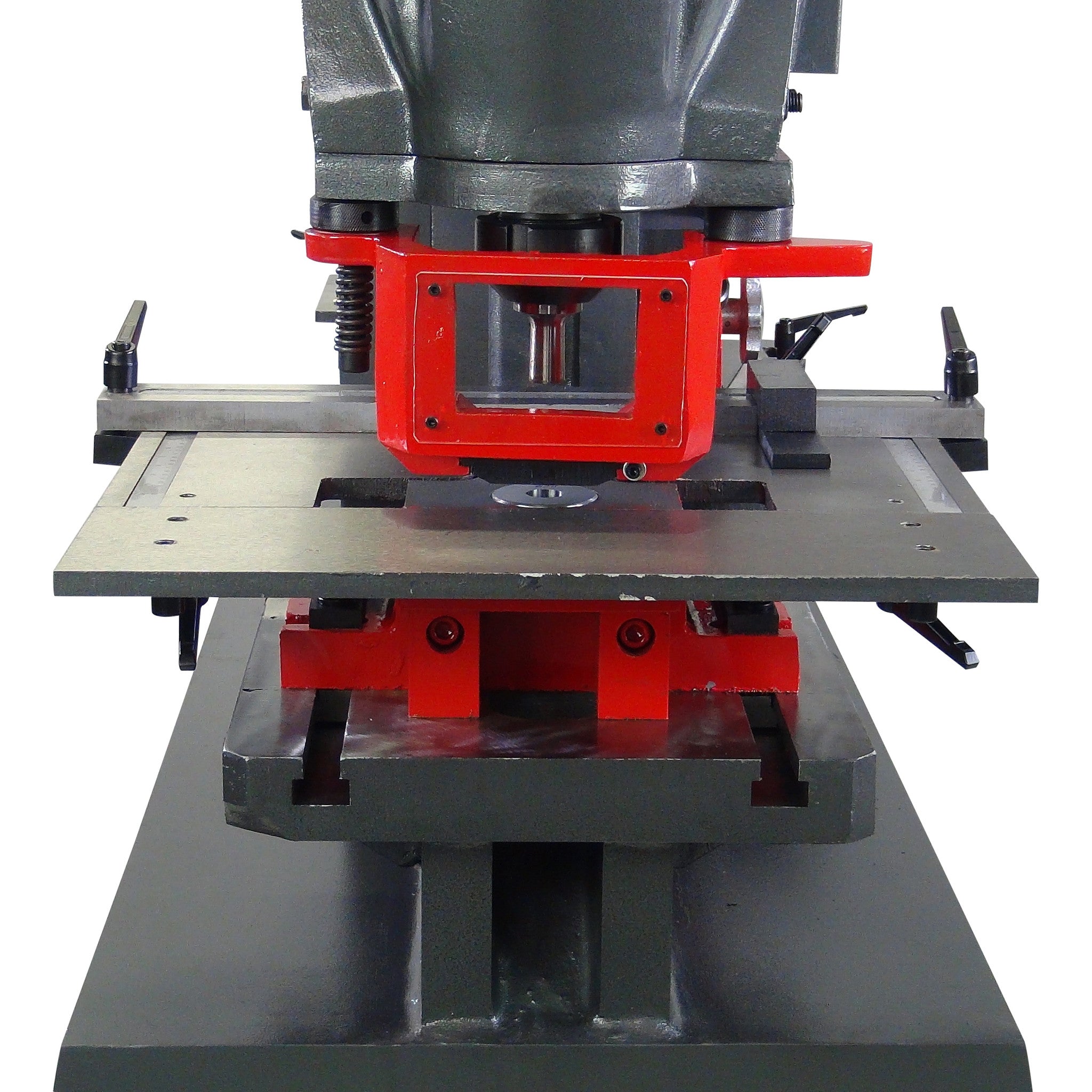

- Swing-away Stripper Assembly
- Electronic Stroke Control
- LED lighting
- E-Stop / Lockout-Tagout

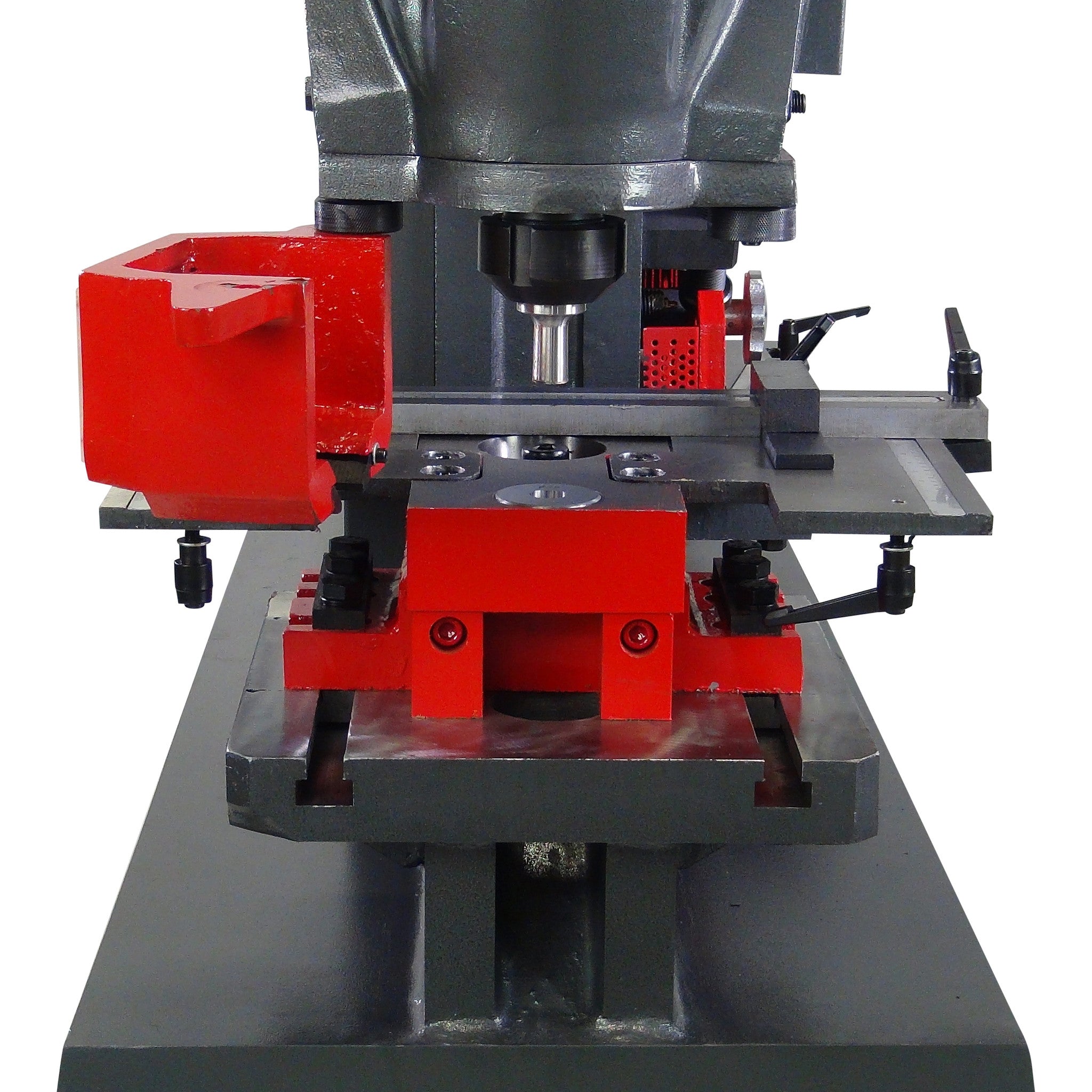

- Quick Change Punch Assembly
| Item | Imperial | Metric | |
|---|---|---|---|
| Hole Punching Capacity (diameter* thickness) | 1.1" x .78" | 30 x 20 mm | |
| Punch (pressure) | 101 Tons | 900 KN | |
| Max Stroke | 3.14" | 80 mm | |
| Stroke times (times/min) | 8 | 8 | |
| Cycles/min | 22 at .78" | ||
| Motor power (220V 1/3 Phase) | 7 HP | 5.5 KW | |
| Depth of Throat | 13.97" | 355 mm | |
| Dimension | Length | 61" | 1550 mm |
| Width | 35" | 900 mm | |
| Height | 76" | 1930 mm | |
| Weight | 4,410 lbs | 2000 kg | |
| * denotes optional tooling. | |||
