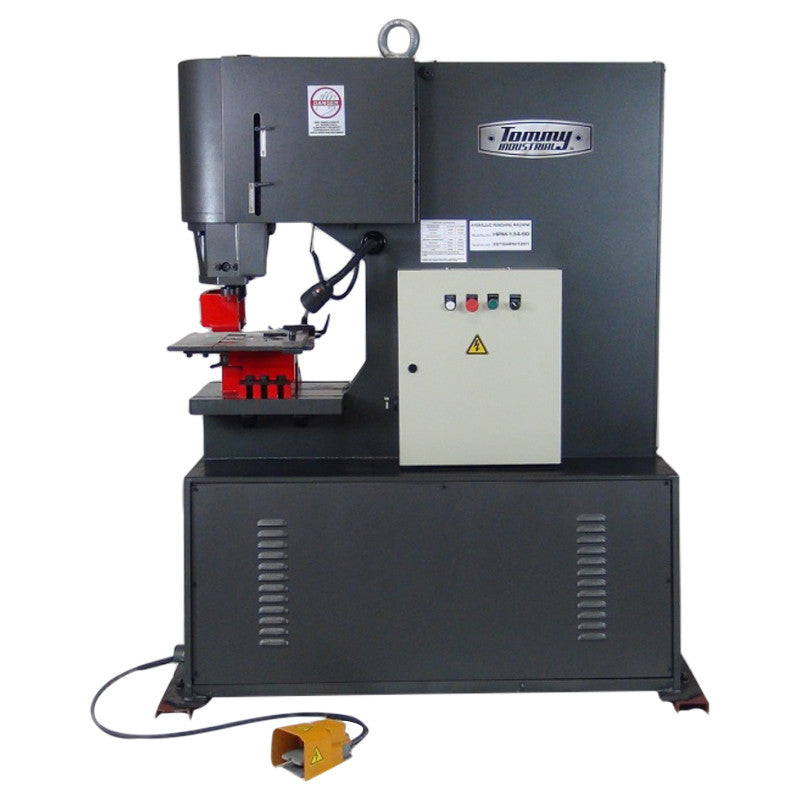

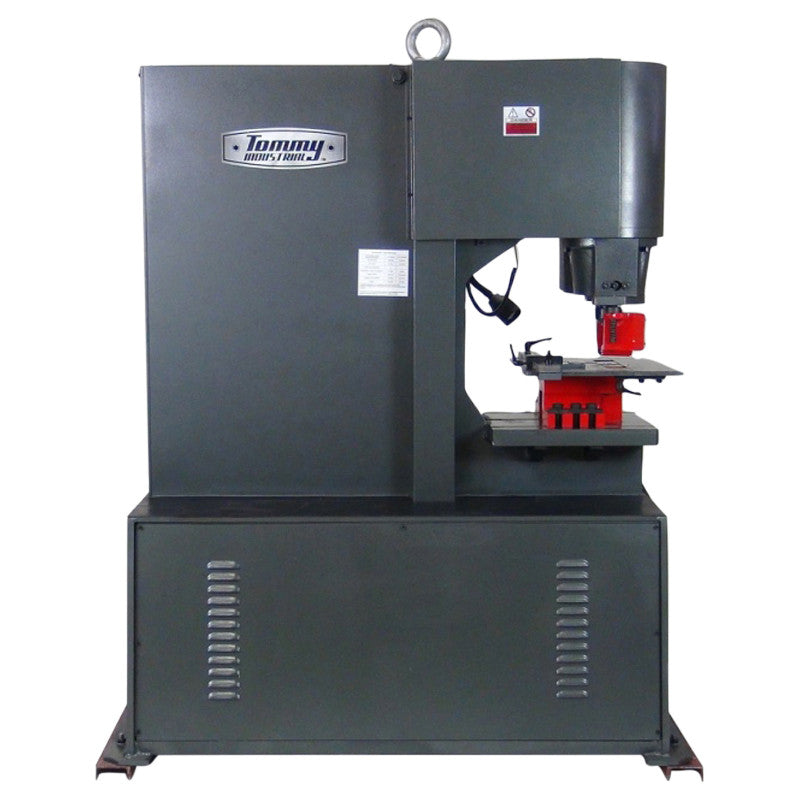

135 Ton Hydraulic Punching Machine

HPM-135

Super Commercial 220V 3Phase 135 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 15.74” Throat Depth. 3.14” Maximum Stroke Length. Up to 22 Strokes Per Minute.

  • Super commercial all-welded construction

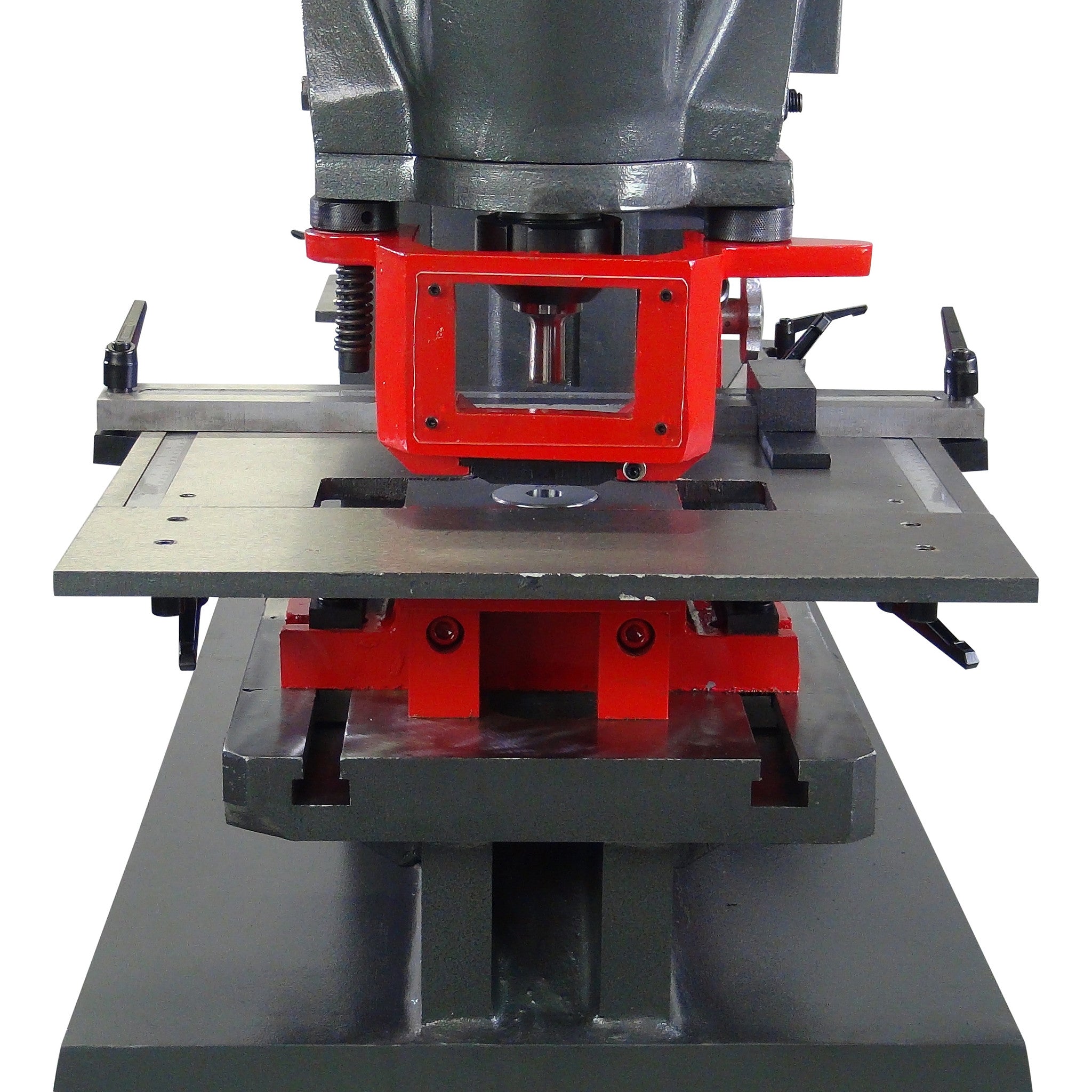

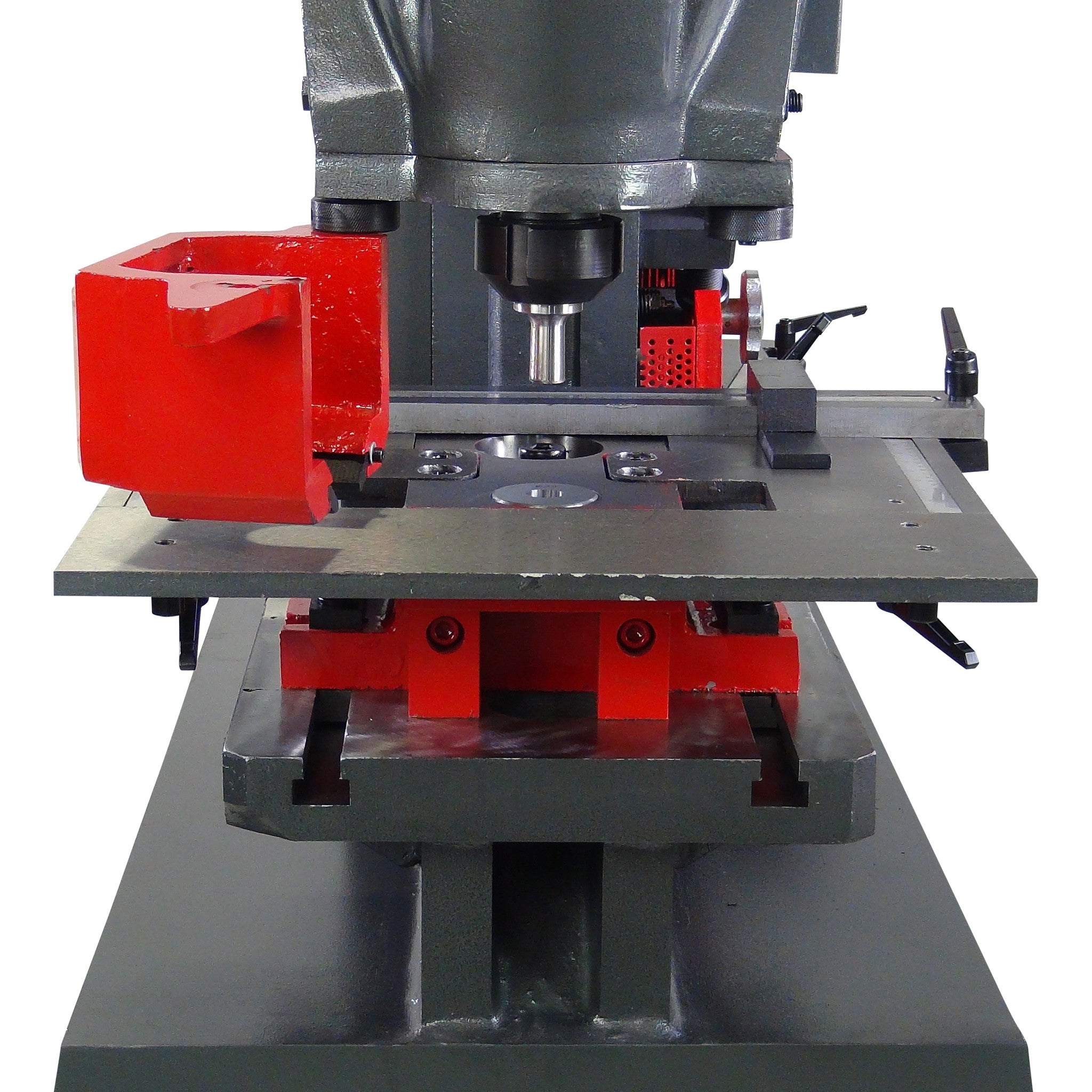

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

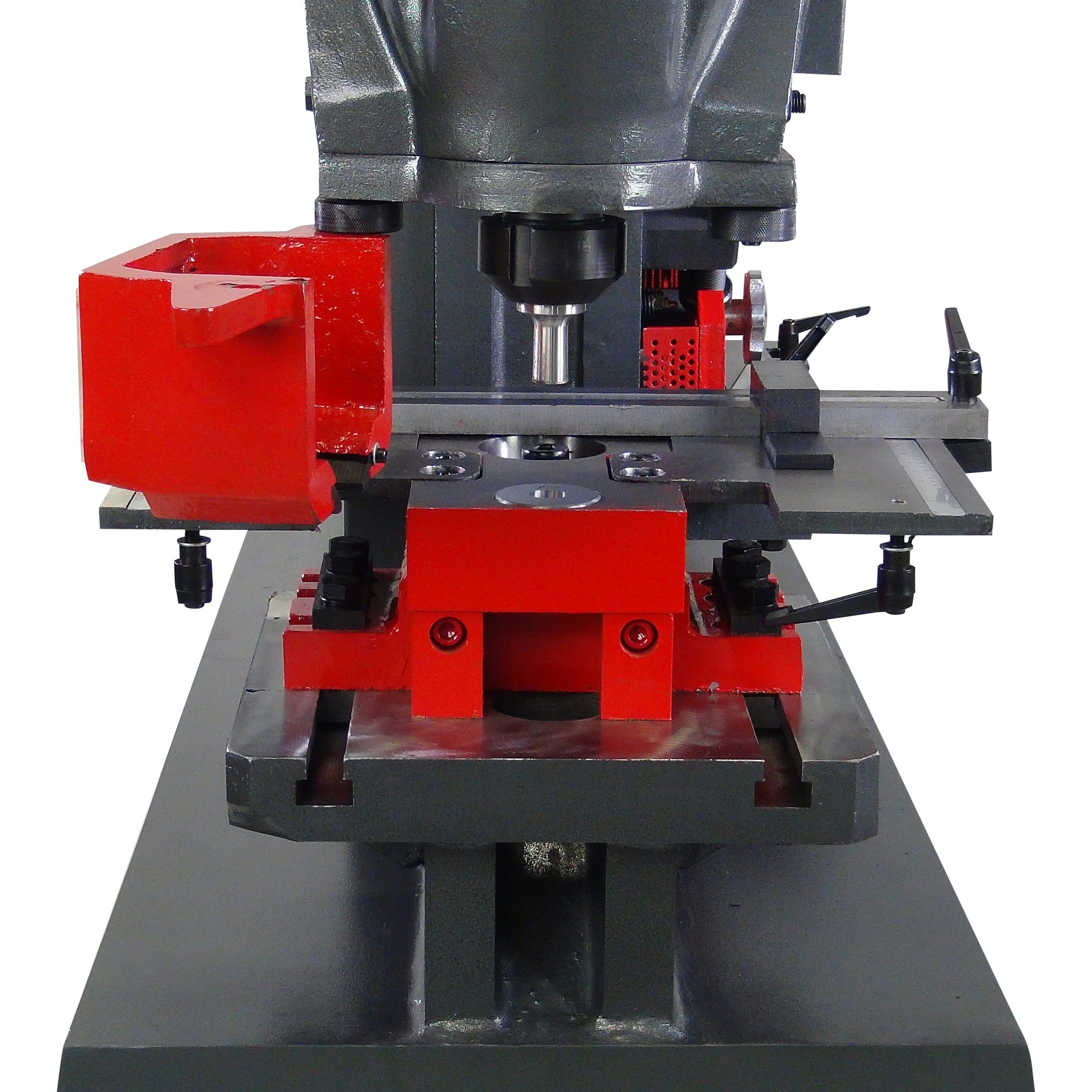

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly

Model HPM-135 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) 1.37" x .98" 35 x 25 mm
Punch (pressure) 135 Ton 1200 KN
Max Stroke 3.14" 80 mm
Stroke times (times/min) 8 8
Cycles/min 22 at .78"
Motor power (220V 1/3 Phase) 10 HP 7.5 KW
Depth of Throat 15.74" 400 mm
Dimension Length 65" 1660 mm
Width 39" 1000 mm
Height 82.5" 2100 mm
Weight 7,055 lbs 3200 kg
* denotes optional tooling.
