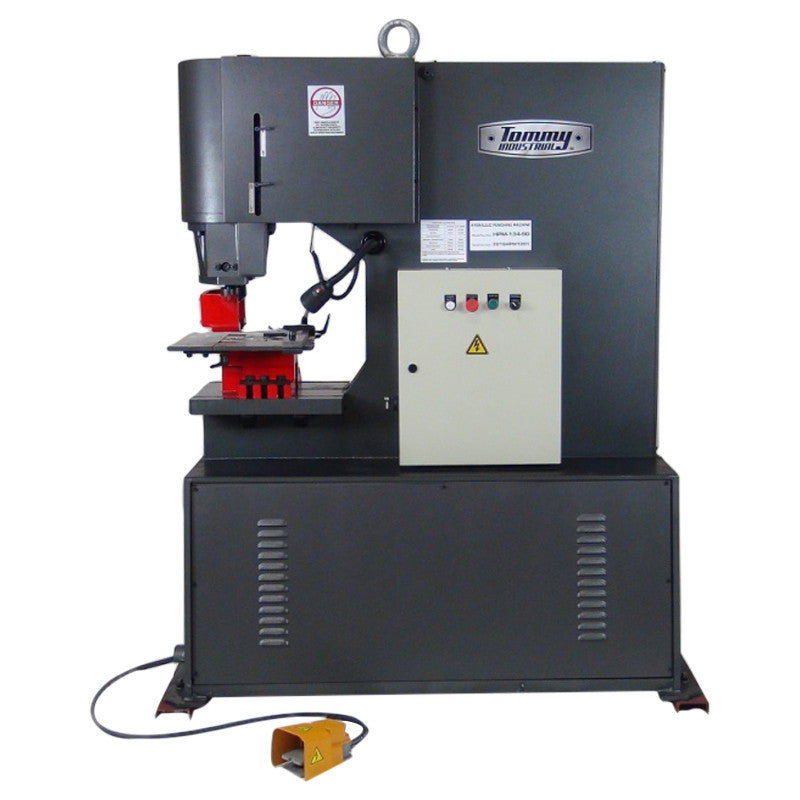

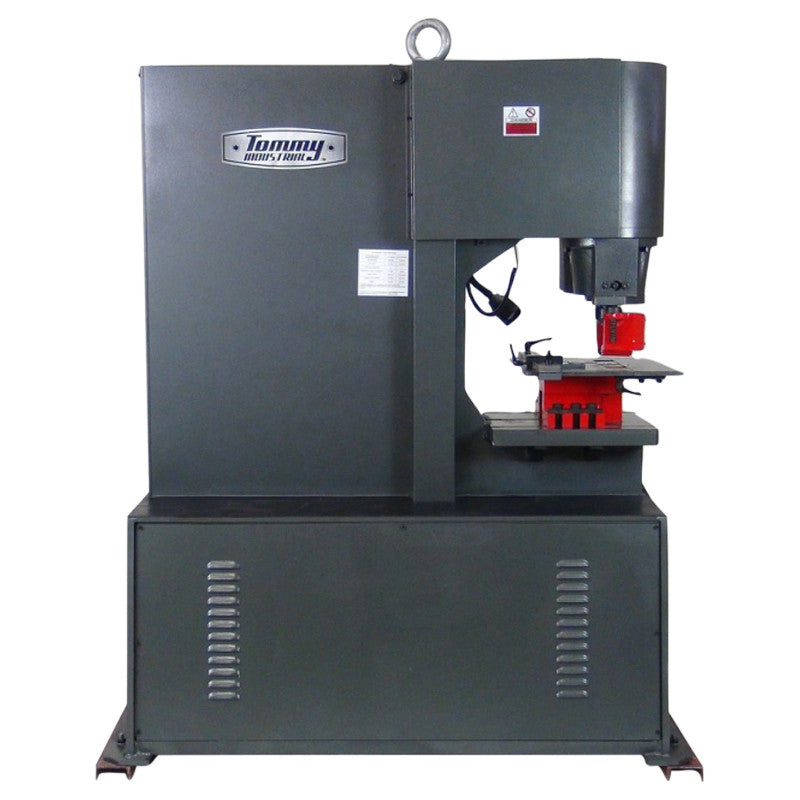

180 Ton Hydraulic Punching Machine

HPM-180

Fully Customizable Built to Order 220V 3Phase 180 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 21.65” Throat Depth. 3.14” Maximum Stroke Length. Up to 25 Strokes Per Minute.

  • Super commercial all-welded construction

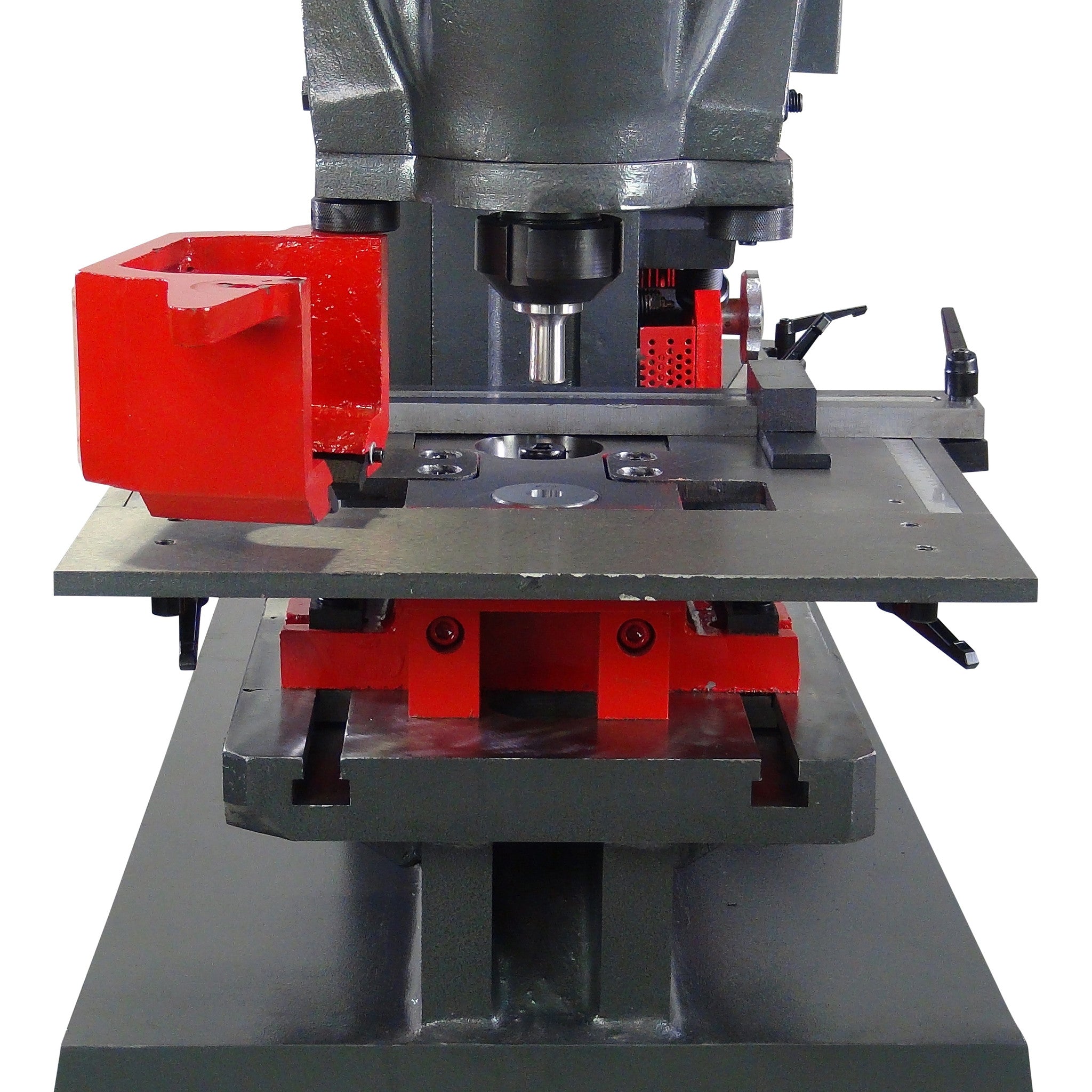

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

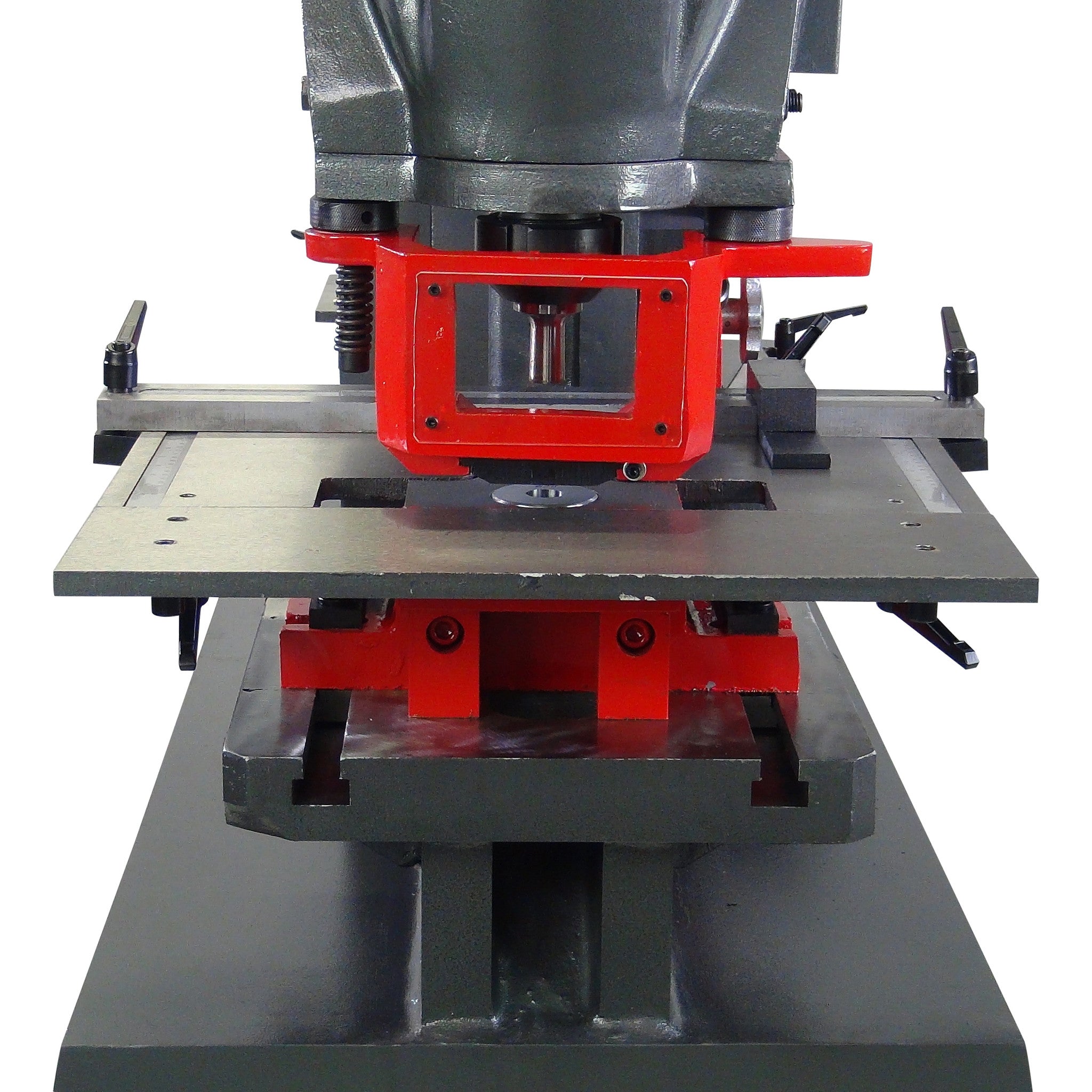

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout

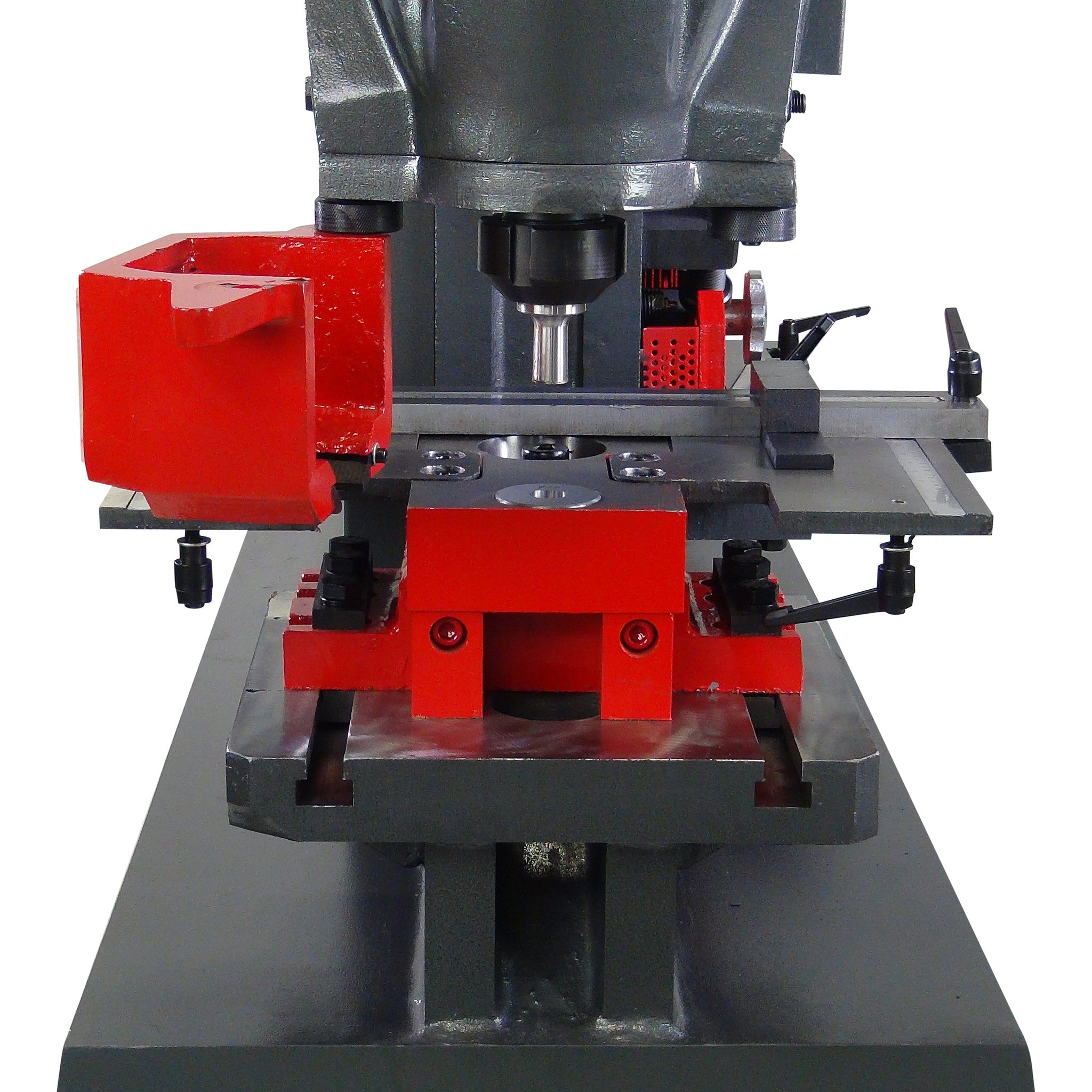

  • Quick Change Punch Assembly

Model HPM-180 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) 1.57" x 1.18" 40 x 30 mm
Punch (pressure) 180 Ton 1600 KN
Max Stroke 3.14" 80 mm
Stroke times (times/min) 8 8
Cycles/min 25 at .78"
Motor power (220V 3 Phase) 15 HP 11 KW
Depth of Throat 21.65" 550 mm
Dimension Length 67" 1700 mm
Width 43" 1100 mm
Height 87" 2200 mm
Weight 9,260 lbs 4200 kg
* denotes optional tooling.

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
