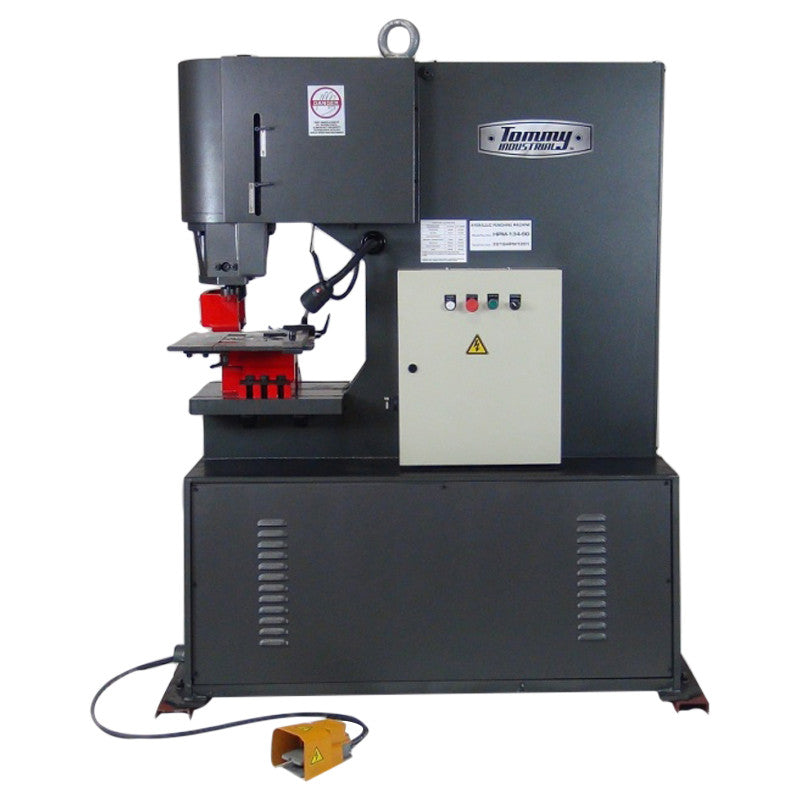

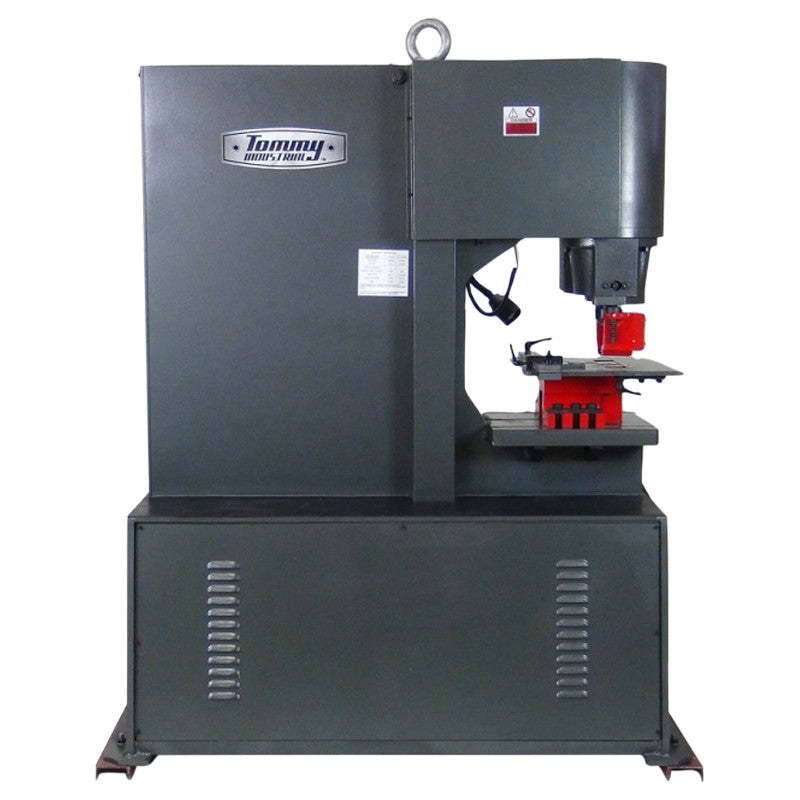

225 Ton Hydraulic Punching Machine

HPM-225

Fully Customizable Built to Order 220V 3Phase 225 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 21.65” Throat Depth. 3.93” Maximum Stroke Length. Up to 25 Strokes Per Minute.

  • Super commercial all-welded construction

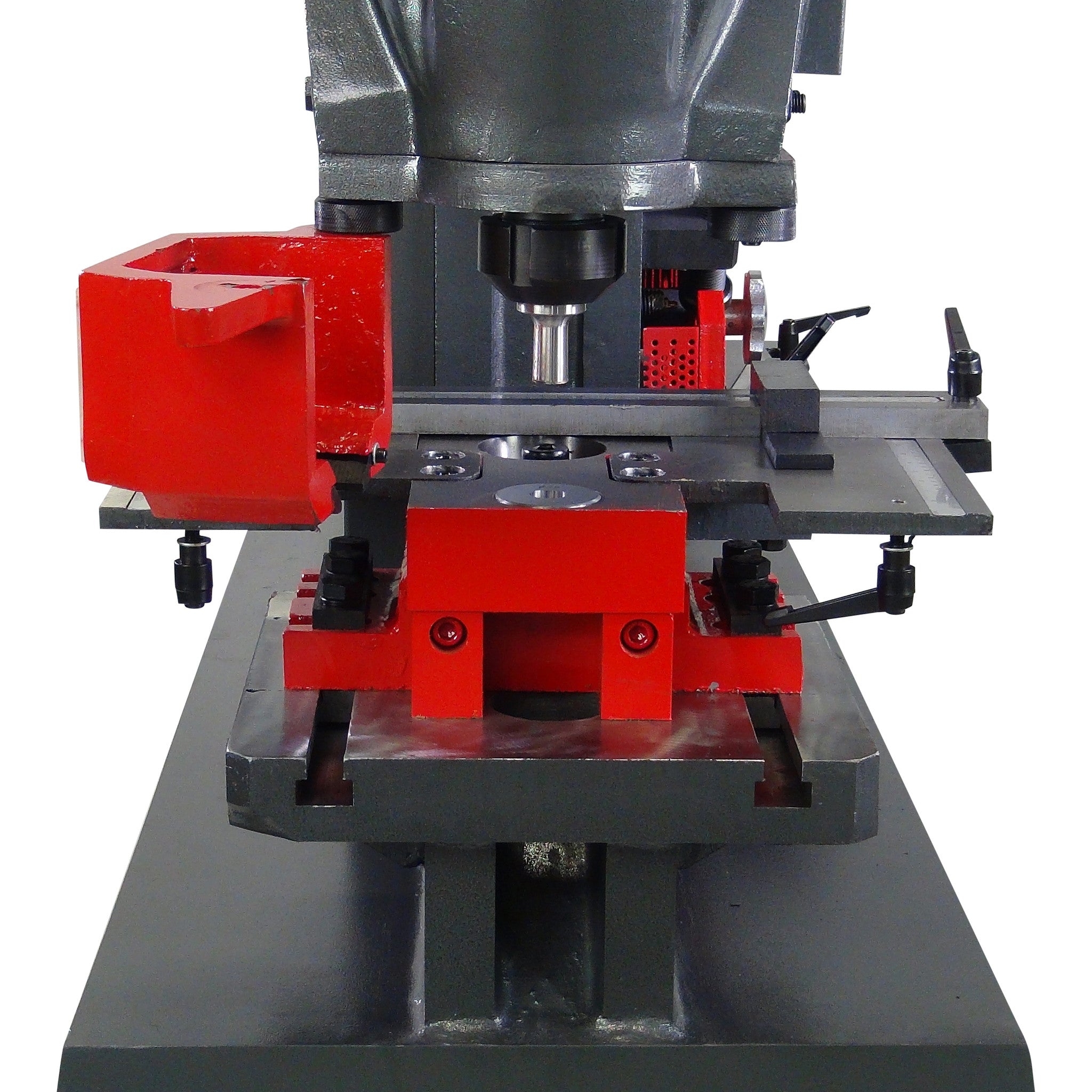

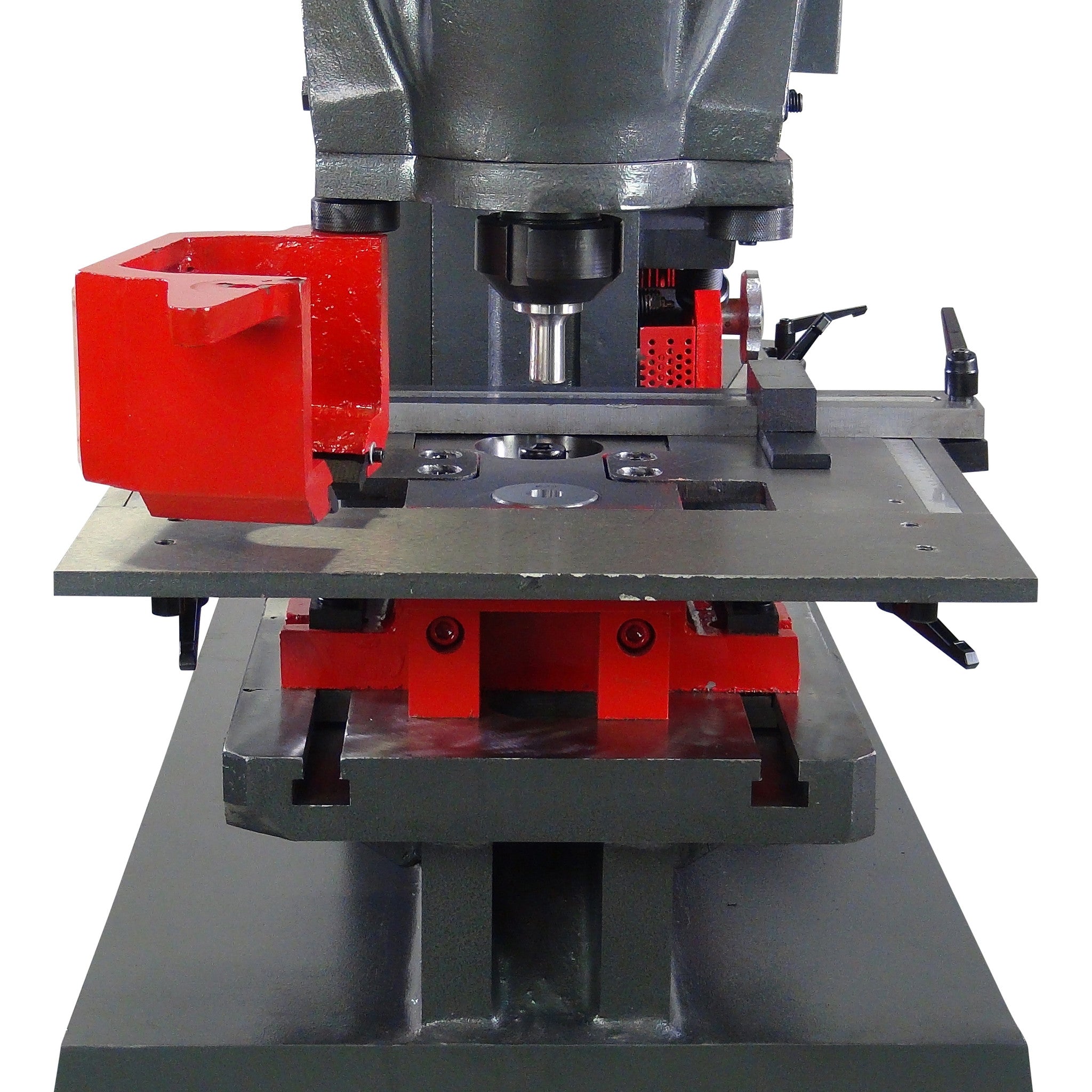

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

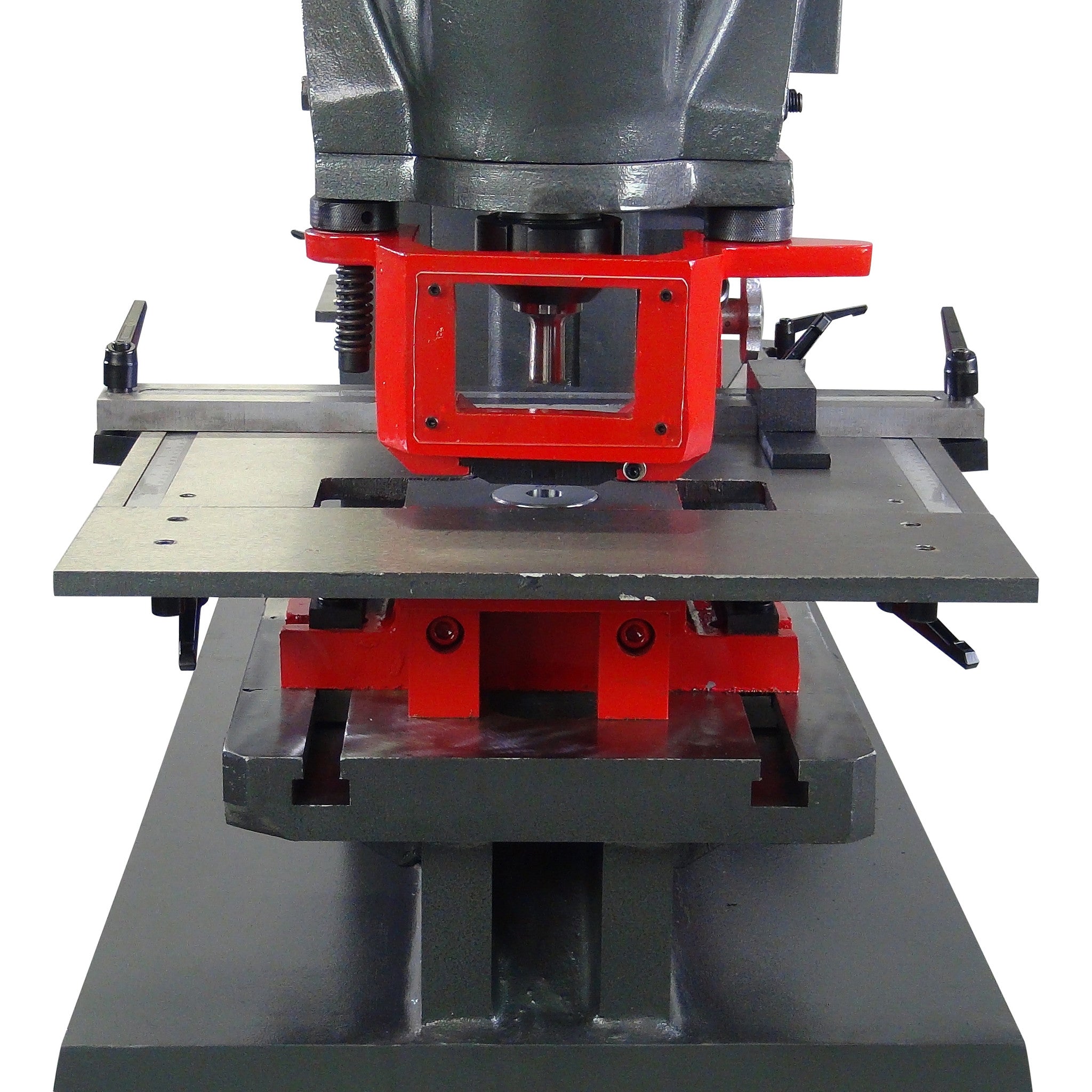

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly

Model HPM-225 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) 1.57" x 1.37" 40 x 35 mm
Punch (pressure) 225 Ton 2000 KN
Max Stroke 3.93" 100 mm
Stroke times (times/min) 8 8
Cycles/min 25 at .78"
Motor power (Custom 3 Phase) 20 HP 15 KW
Depth of Throat 21.65" 550 mm
Dimension Length 71" 1800 mm
Width 47" 1200 mm
Height 90.5" 2300 mm
Weight 11,023 lbs 5000 kg
* denotes optional tooling.

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
