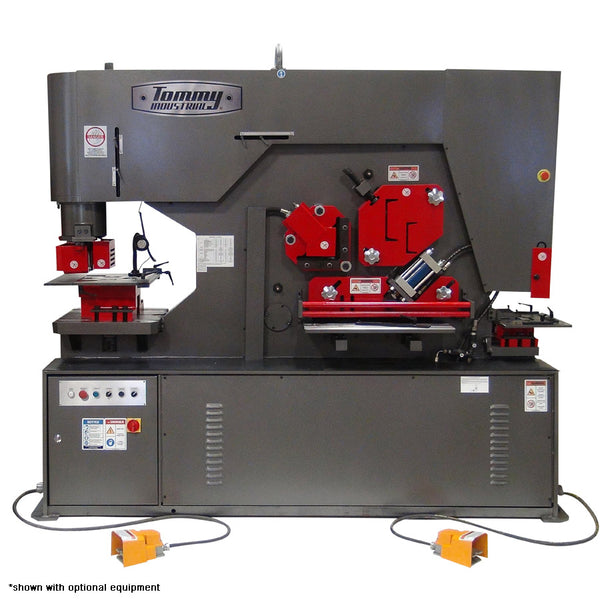

280 Ton Hydraulic Ironworker

IWT-280

$65,990.00 USD

Fully Customizable Built to Order 220V 3 Phase 280 Ton Hydraulic Ironworker Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 22.04” Throat Depth. 3.93” Maximum Stroke Length. Up to 25 Strokes Per Minute.

  • Five Integrated Work Stations (punch, flat bar shear, angle iron shear, square/round bar shear, notcher)
  • Swing-away Stripper Assembly
  • Electric Stroke Control
  • Large Gauging Tables
  • LED Lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly
  • Electric Back Gauge

Model IWT-280 Specifications
Item Imperial Metric
Hole punching Punching pressure 280 Ton 2500 KN
Max. Punching Thickness 1.57" 40mm
Max. Diameter of Punching 1.57" 40mm
Depth of Throat 22.04" 560mm
Max. Length of Cylinder Stroke 3.93" 100mm
Stroke times (times/min) 8-25 8-25
Flat-bar Shearing Angle of shear
Max. Shearing Thickness 1.57" 40mm
Flat Bar (WxT) 17.72" x 1.57" 450mm x 40mm
29.53" x 1.18" 750mm x 30mm
Angle Steel Shearing 90° Shearing of Equal Angle Steel 7.87" x 7.87" x .78" 200mm x 200mm x 20mm
45° Shearing of Equal Angle Steel 3.14" x 3.14" x .39" 80mm x 80mm x 10mm
Profile Steel Shearing Round-bar 3.14" 80mm
Square-bar 2.55" x 2.55" 65mm x 65mm
I-beam* 12.60" x 5.12" x .39" 320mm x 130mm x 10mm
C-channel* 12.60" x 3.62" x .47" 320mm x 92mm x 12mm
Notching Thickness .78" 20mm
Width 2.36" 60mm
Depth 3.93" 100mm
Material Tensile Strength 65,267 PSI 450 N/mm²
Motor Power (220V 1 or 3 Phase) 25 HP 18.5 KW
Overall Dimensions (LxWxH) 126" x 57" x 96.5" 3200mm x 1440mm x 2450mm
Gross Weight 28,220 lbs 12800 Kg
* denotes optional tooling.
