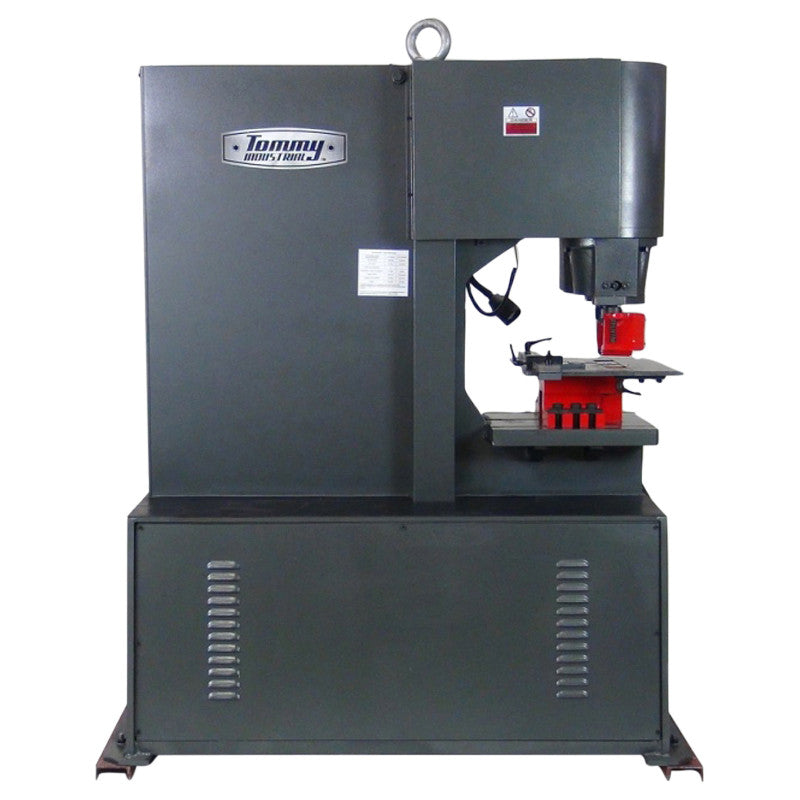

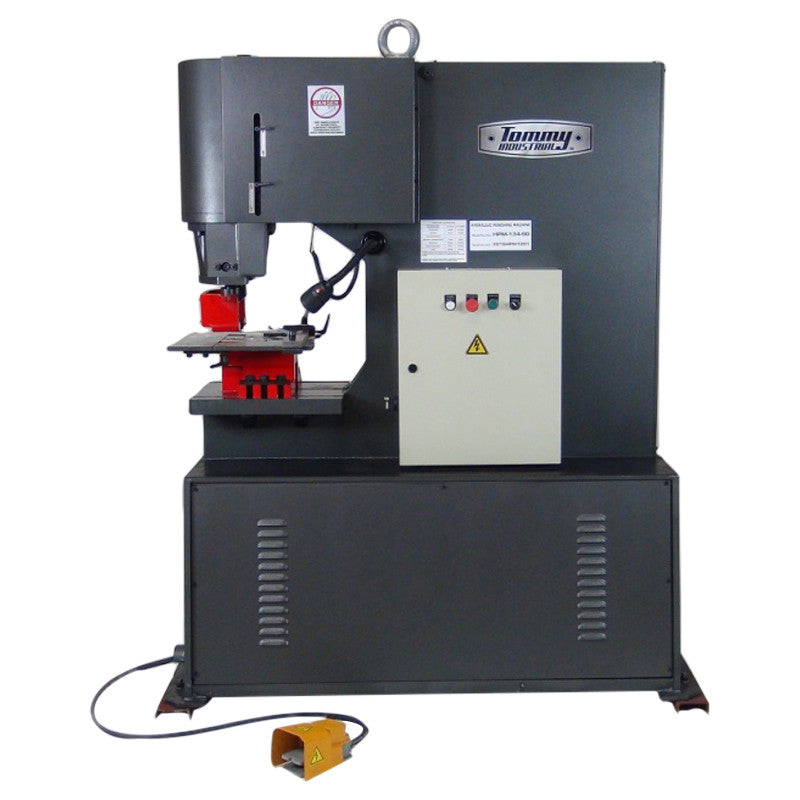

393 Ton Hydraulic Punching Machine

HPM-393

Fully Customizable Built to Order 220V 3Phase 393 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 21.65” Throat Depth. 3.93” Maximum Stroke Length. Up to 25 Strokes Per Minute.

  • Super commercial all-welded construction

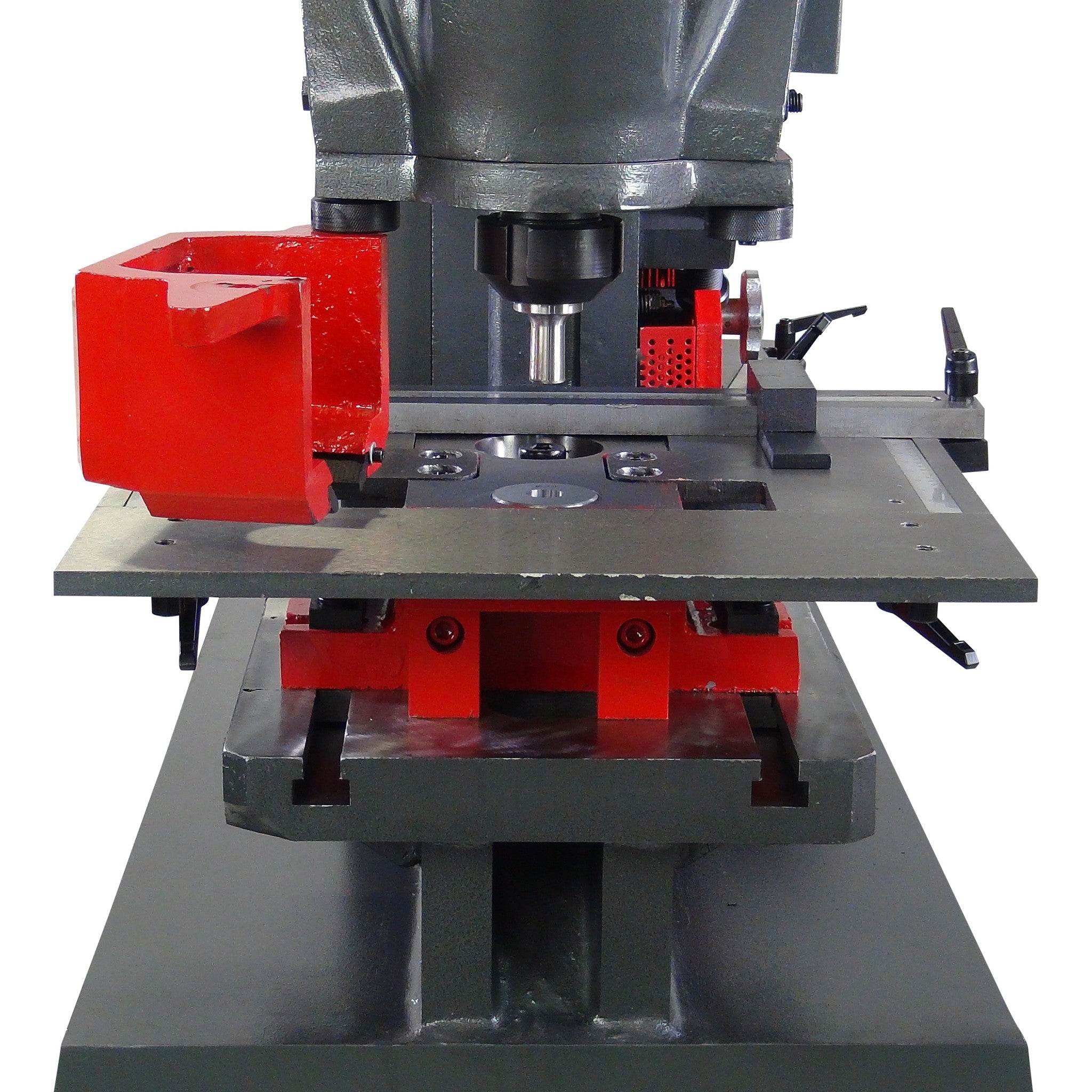

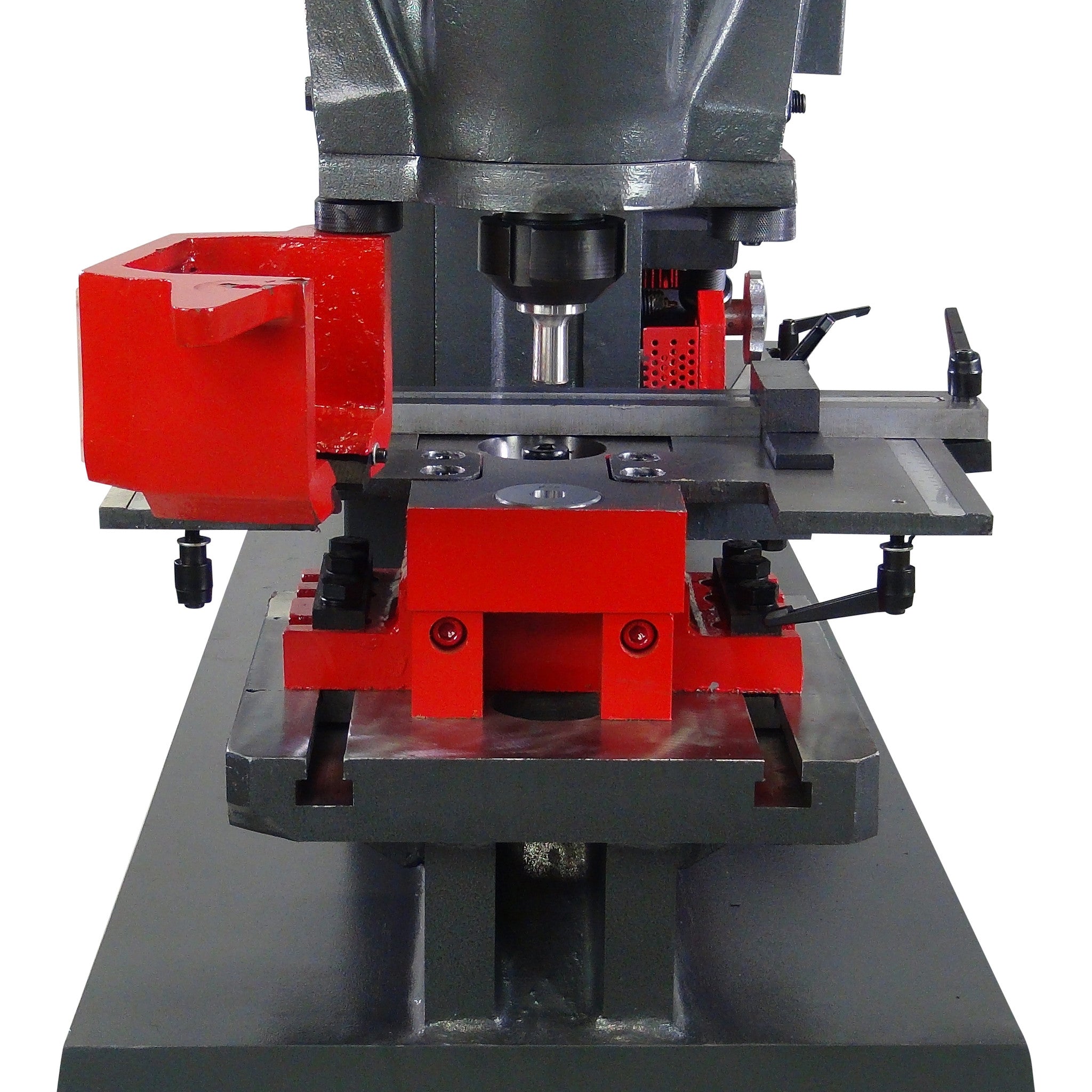

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

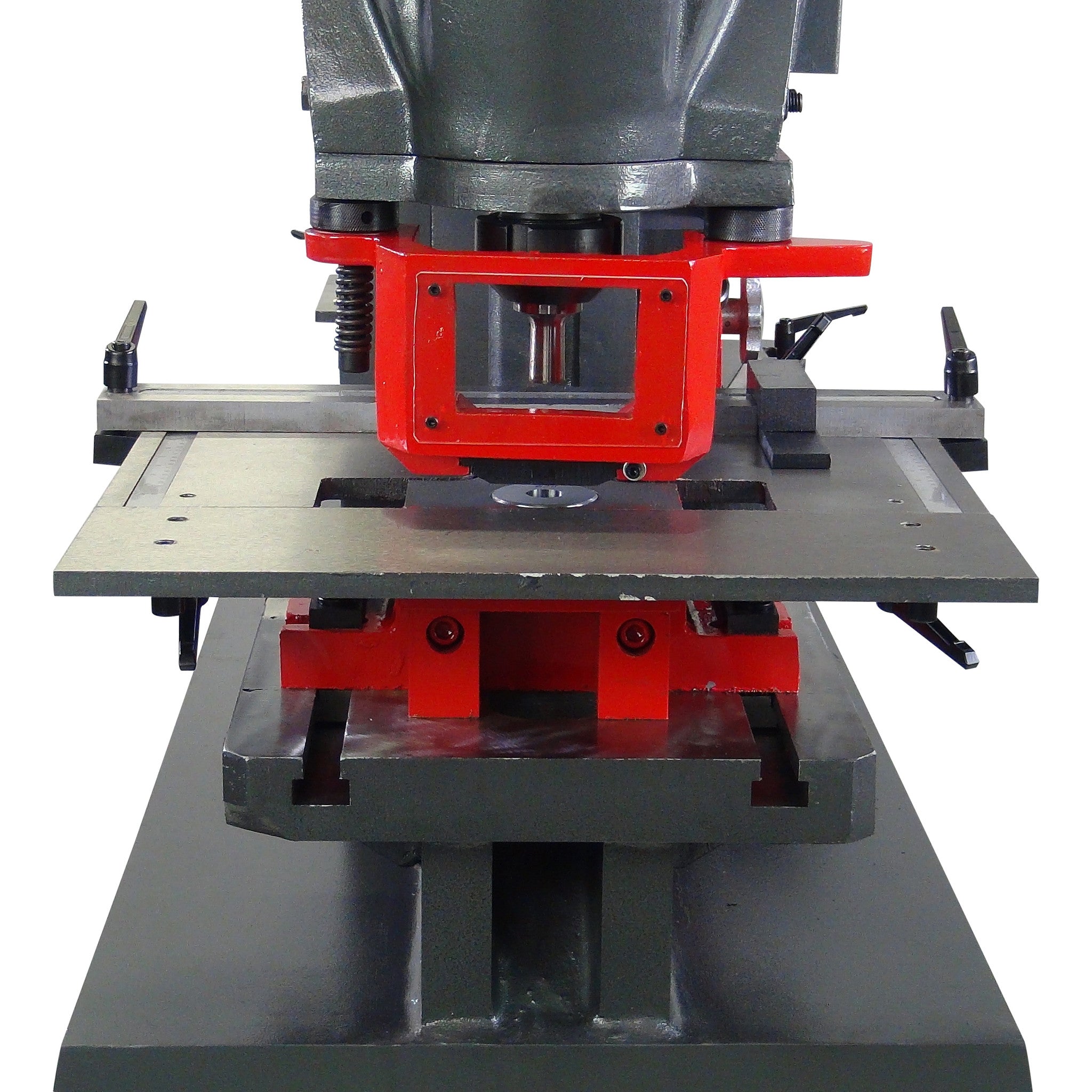

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly

Model HPM-393 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) 1.77" x 1.57" 45 x 40 mm
Punch (pressure) 393 Ton 3500 KN
Max Stroke 3.93" 100 mm
Stroke times (times/min) 6 6
Cycles/min 24 at .78"
Motor power (Custom 3 Phase) 40 HP 30 KW
Depth of Throat 21.65" 550 mm
Dimension Length 83" 2100 mm
Width 63" 1600 mm
Height 98.5" 2500 mm
Weight 21,825 lbs 9900 kg
* denotes optional tooling.
