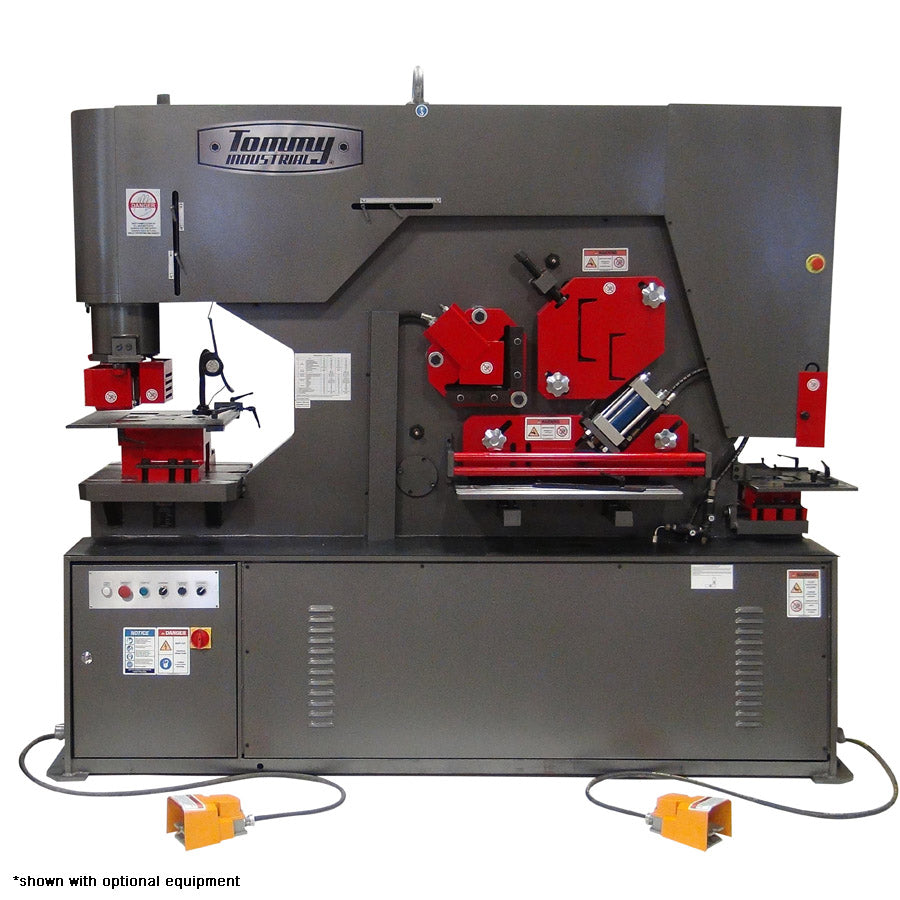

450 Ton Hydraulic Ironworker
IWT-450
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
Our largest Hydraulic Ironworker, Fully Customizable Built to Order 220V 3 Phase 450 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 22.04” Throat Depth. 3.93” Maximum Stroke Length. Up to 24 Strokes Per Minute.

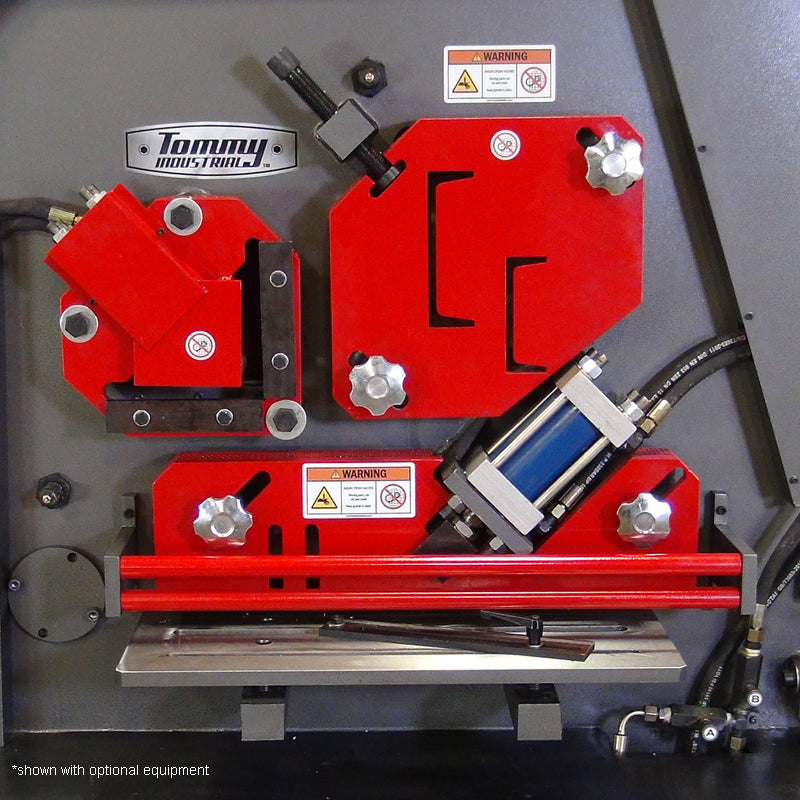

- Five Integrated Work Stations (punch, flat bar shear, angle iron shear, square/round bar shear, notcher)
- Swing-away Stripper Assembly
- Electric Stroke Control
- Large Gauging Tables
- LED Lighting

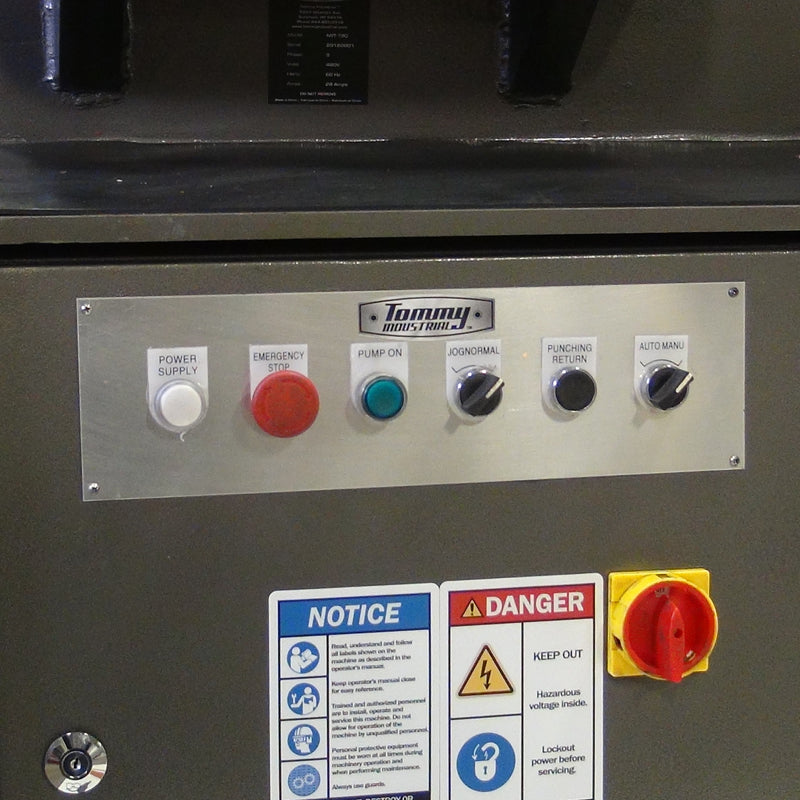

- E-Stop / Lockout-Tagout
- Quick Change Punch Assembly
- Electric Back Gauge
| Item | Imperial | Metric | |
|---|---|---|---|
| Hole punching | Punching pressure | 450 Ton | 4000 KN |
| Max. Punching Thickness | 1.57" | 40mm | |
| Max. Diameter of Punching | 1.96" | 50mm | |
| Depth of Throat | 22.04" | 560mm | |
| Max. Length of Cylinder Stroke | 3.93" | 100mm | |
| Stroke times (times/min) | 6-18 | 6-18 | |
| Flat-bar Shearing | Angle of shear | 8° | 8° |
| Max. Shearing Thickness | 1.57" | 40mm | |
| Flat Bar (WxT) | 21.65" x 1.57" | 550mm x 40mm | |
| 38.58" x .98" | 980mm x 25mm | ||
| Angle Steel Shearing | 90° Shearing of Equal Angle Steel | 7.87" x 7.87" x .87" | 200mm x 200mm x 22mm |
| 45° Shearing of Equal Angle Steel | / | / | |
| Profile Steel Shearing | Round-bar | 3.93" | 100mm |
| Square-bar | 3.14" | 80mm | |
| I-beam* | 16.55" | 420mm | |
| C-channel* | 16.55" | 420mm | |
| Notching | Thickness | / | / |
| Width | 2.36" | 60mm | |
| Depth | 3.93" | 100mm | |
| Material Tensile Strength | 65,267 PSI | 450 N/mm² | |
| Motor Power (220V 1 or 3 Phase) | 50 HP | 37 KW | |
| Overall Dimensions (LxWxH) | 150" x 67" x 100" | 3800mm x 1700mm x 2530mm | |
| Gross Weight | 41,005 lbs | 18600 Kg | |
| * denotes optional tooling. | |||
