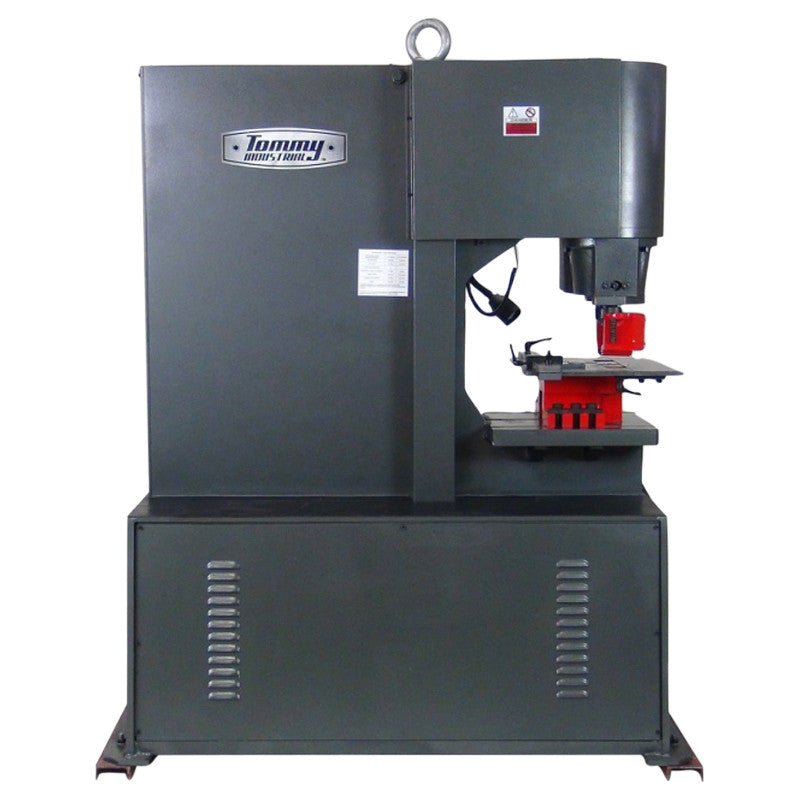

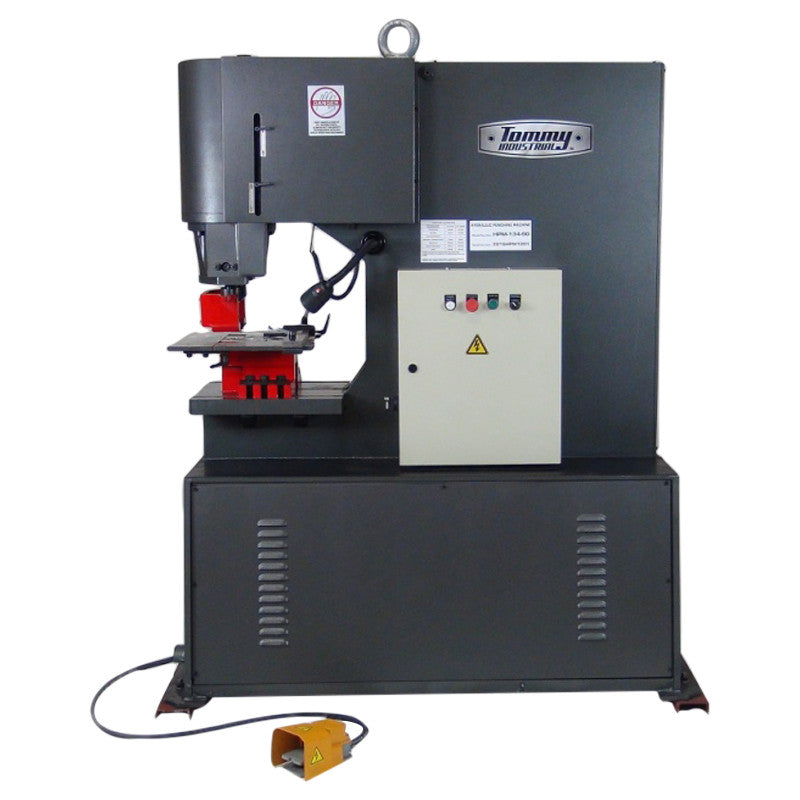

450 Ton Hydraulic Punching Machine

HPM-450

Our Largest! Fully Customizable Built to Order 220V 3Phase 450 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 21.65” Throat Depth. 3.93” Maximum Stroke Length. Up to 25 Strokes Per Minute.

  • Super commercial all-welded construction

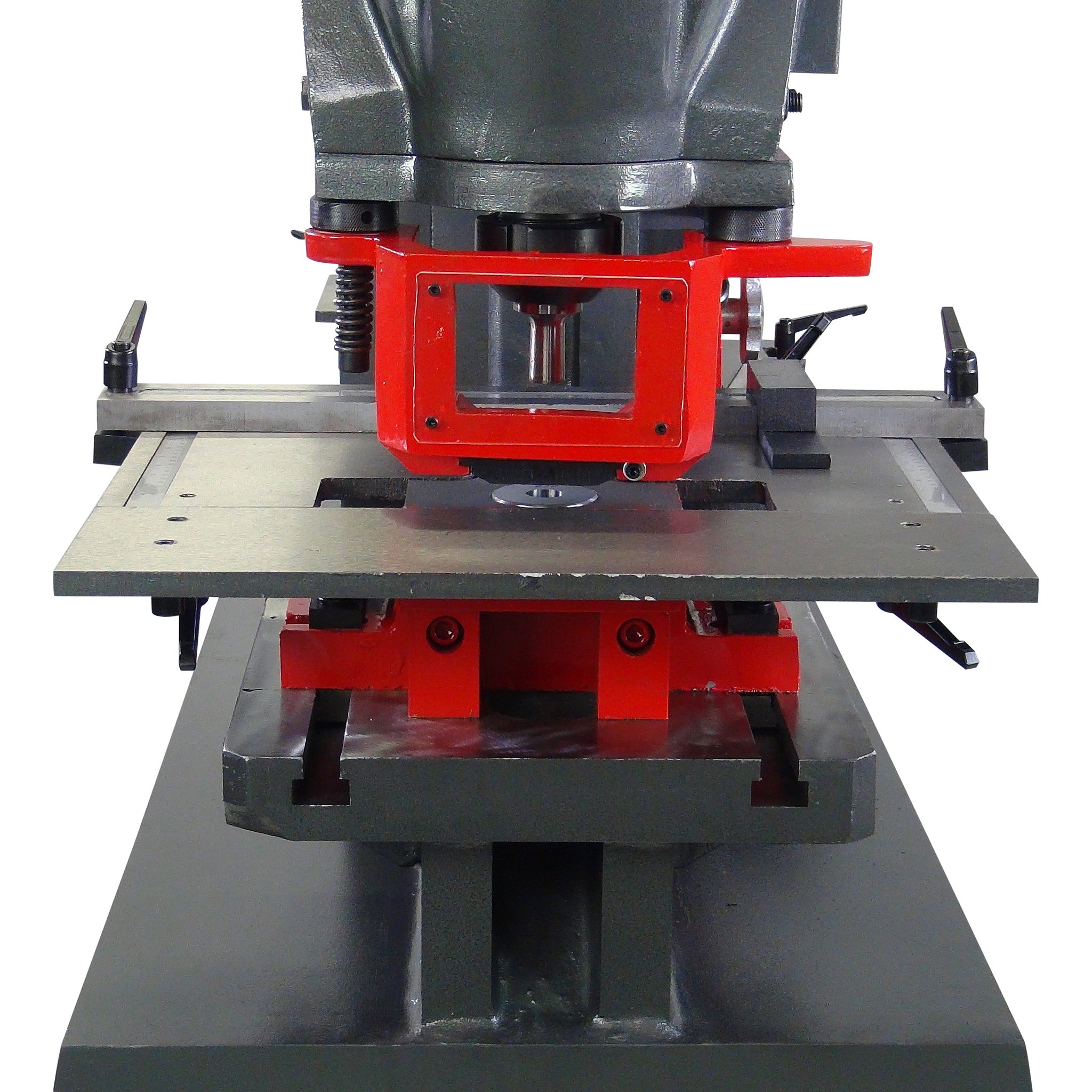

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

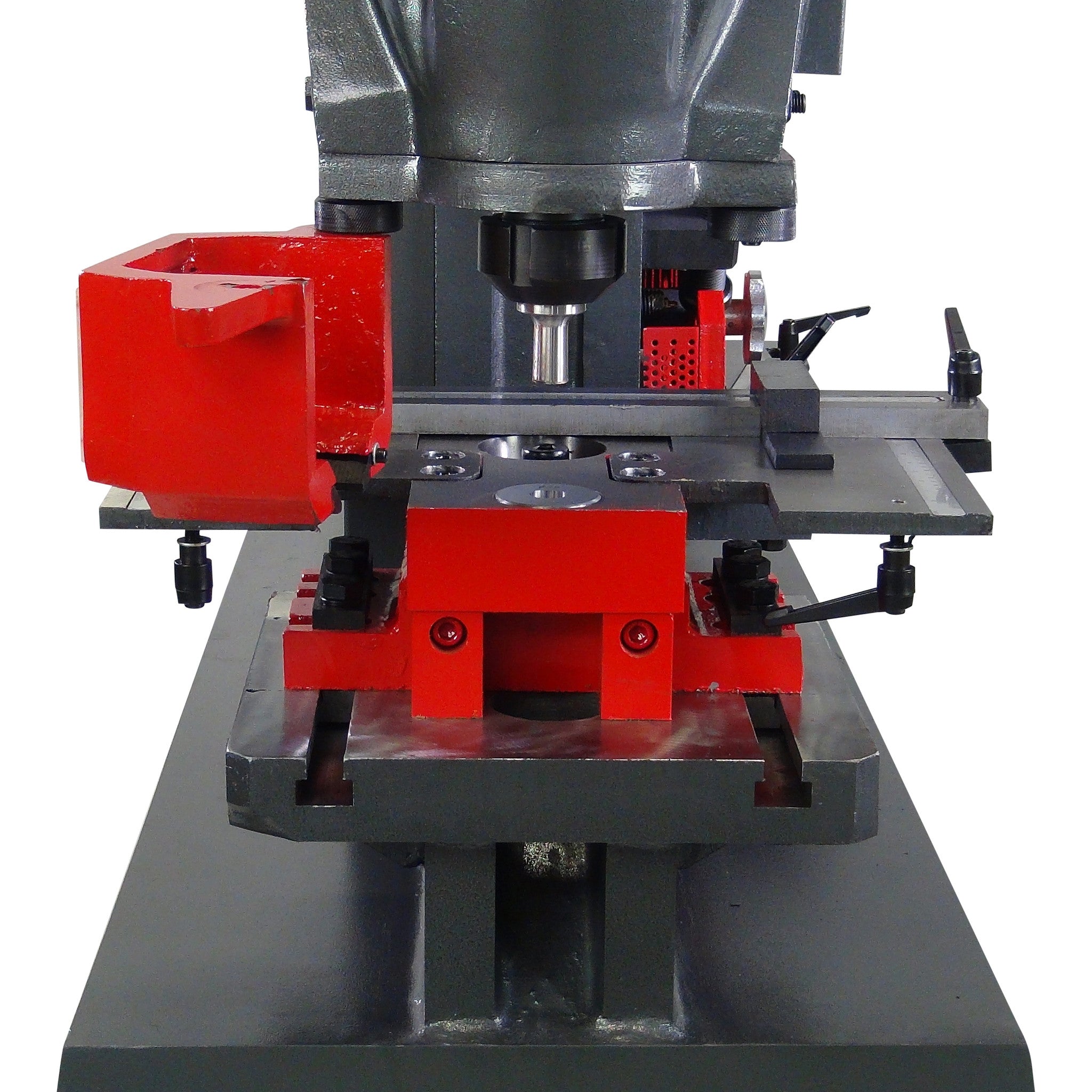

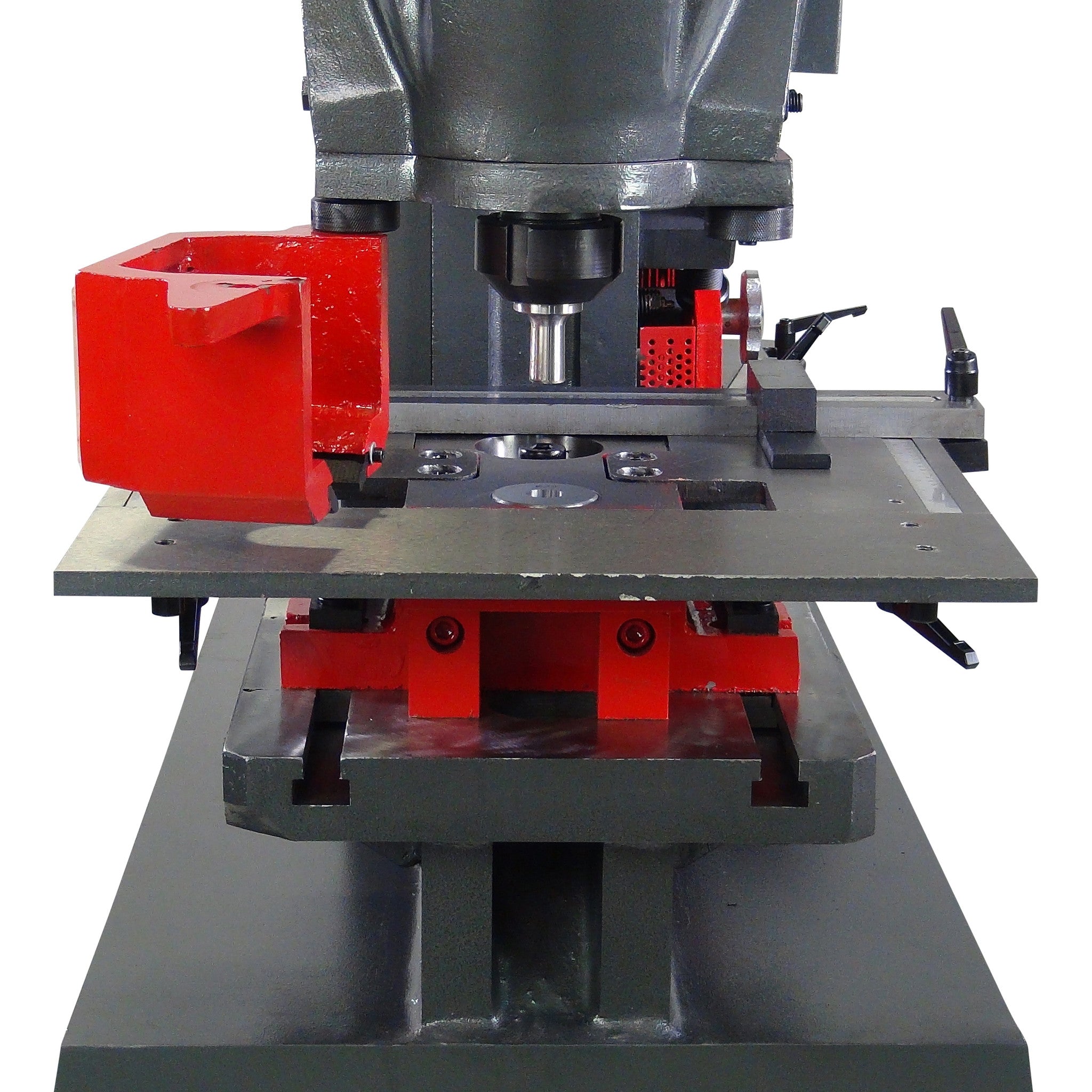

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly

Model HPM-450 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) 1.96" x 1.57" 50 x 40 mm
Punch (pressure) 450 Ton 4000 KN
Max Stroke 3.93" 100 mm
Stroke times (times/min) 6 6
Cycles/min 18 at .78"
Motor power (Custom 3 Phase) 50 HP 37 KW
Depth of Throat 21.65" 550 mm
Dimension Length 98" 2500 mm
Width 67" 1700 mm
Height 100" 2530 mm
Weight 26,455 lbs 12000 kg
* denotes optional tooling.
