55 Ton Hydraulic Ironworker
IWT-55
Don't Settle for Any Less! This is Our Best Compact hydraulic ironworker, designed by fabricators for fabricators! 220V 1 Phase 55 Ton Hydraulic Ironworker with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 11.81” Throat Depth. 3.14” Maximum Stroke Length. Up to 22 Strokes Per Minute.
Features Include:
- Punch and Die Starter Set: 9 sizes: 3/16in., 5/16in., 7/16in., 9/16in., 11/16in., 13/16in., 15/16in., 1 1/16in, 22mm.
- Five Integrated Work Stations (punch, flat bar shear, angle iron shear, square/round bar shear, notcher)
- Swing-away Stripper Assembly
- Electric Stroke Control
- Large Gauging Tables
- LED Lighting
- E-Stop / Lockout-Tagout
- Quick Change Punch Assembly
- Electric Back Gauge
| Item | Imperial | Metric | |
|---|---|---|---|
| Hole punching | Punching pressure | 55 Ton | 489 KN |
| Max. Punching Thickness | .50" | 13mm | |
| Max. Diameter of Punching | 1" | 25mm | |
| Depth of Throat | 11.81" | 300mm | |
| Max. Length of Cylinder Stroke | 3.14" | 80mm | |
| Stroke times (times/min) | 8-22 | 8-22 | |
| Flat-bar Shearing | Angle of shear | 7° | 7° |
| Max. Shearing Thickness | .63" | 16mm | |
| Flat Bar (WxT) | 15.75" x .31" | 400mm x 8mm | |
| 9.84" x .63" | 250mm x 16mm | ||
| Angle Steel Shearing | 80° Shearing of Equal Angle Steel | 4.72" x 4.72" x .39" | 120mm x 120mm x 10mm |
| 45° Shearing of Equal Angle Steel | 2.76" x 2.75" x .31" | 70mm x 70mm x 8mm | |
| Profile Steel Shearing | Round-bar | 1.77" | 45mm |
| Square-bar | 1.57" x 1.57" | 40mm x 40mm | |

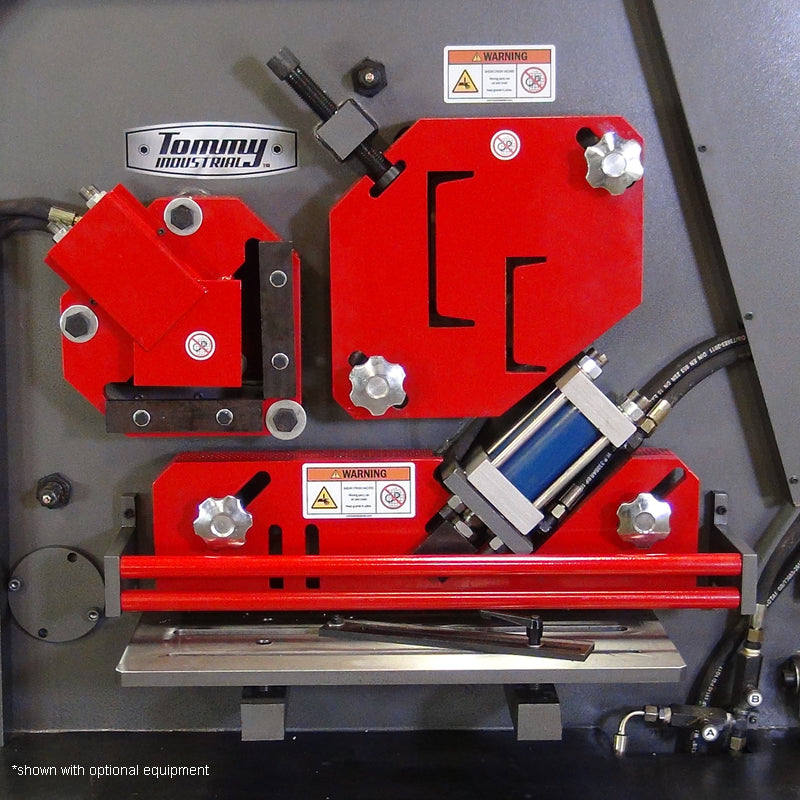

| T-bar* | 4.72" x 2.36" x .47" | 120mm x 60mm x 12mm | |
| I-beam* | 4.96" x 2.91" x .20" | 126mm x 74mm x 5mm | |
| C-channel* | 4.96" x 2.08" x .22" | 126mm x 53mm x 5.5mm | |
| Notching | Thickness | .39" | 10mm |
| Width | 2.24" | 57mm | |
| Depth | 3.93" | 100mm | |
| Material Tensile Strength | 65,267 PSI | 450 N/mm² | |
| Motor Power (220V 1 Phase) | 5 HP | 4 KW | |
| Overall Dimensions (LxWxH) | 65" x 31.5" x 70" | 1650mm x 800mm x 1780mm | |
| Gross Weight | 3,970 lbs | 1800 Kg | |
| * denotes optional tooling. | |||
