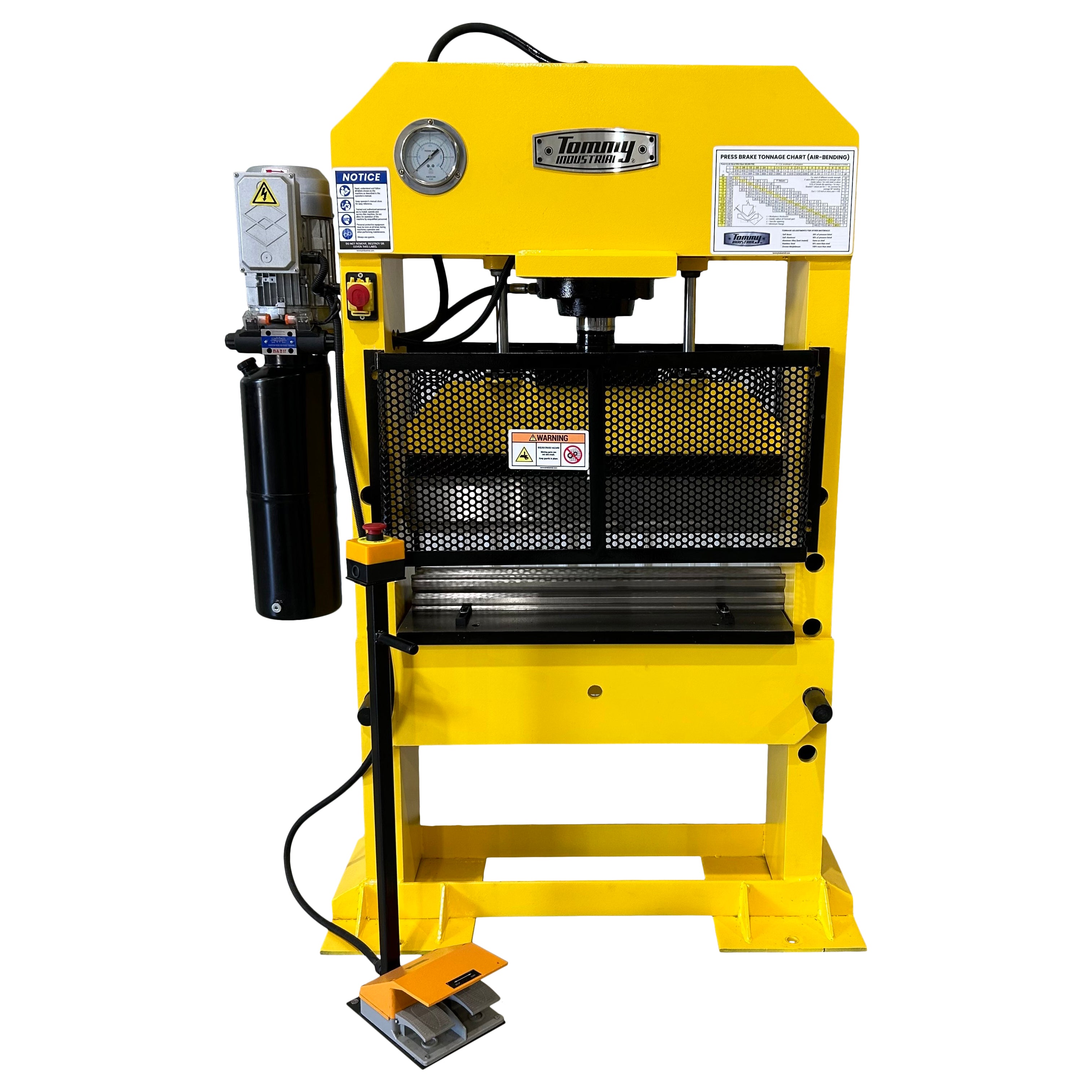

56 Ton Mini Brake / Shop Press In-Stock!

TIHPB-50

$6,595.00 USD


Want Full Size Shop Press and a Press Brake?

 Tommy Industrial Has It!  Welcome to the New Mini Brake from Tommy Industrial.  Ruggedly built our full-sized 56 ton mini brake / shop press gives you the best of both worlds, the functionality of a shop press and the bending capability of a press brake.

 Features Include:

  • Heavy-Duty steel construction
  • Massive cylinder

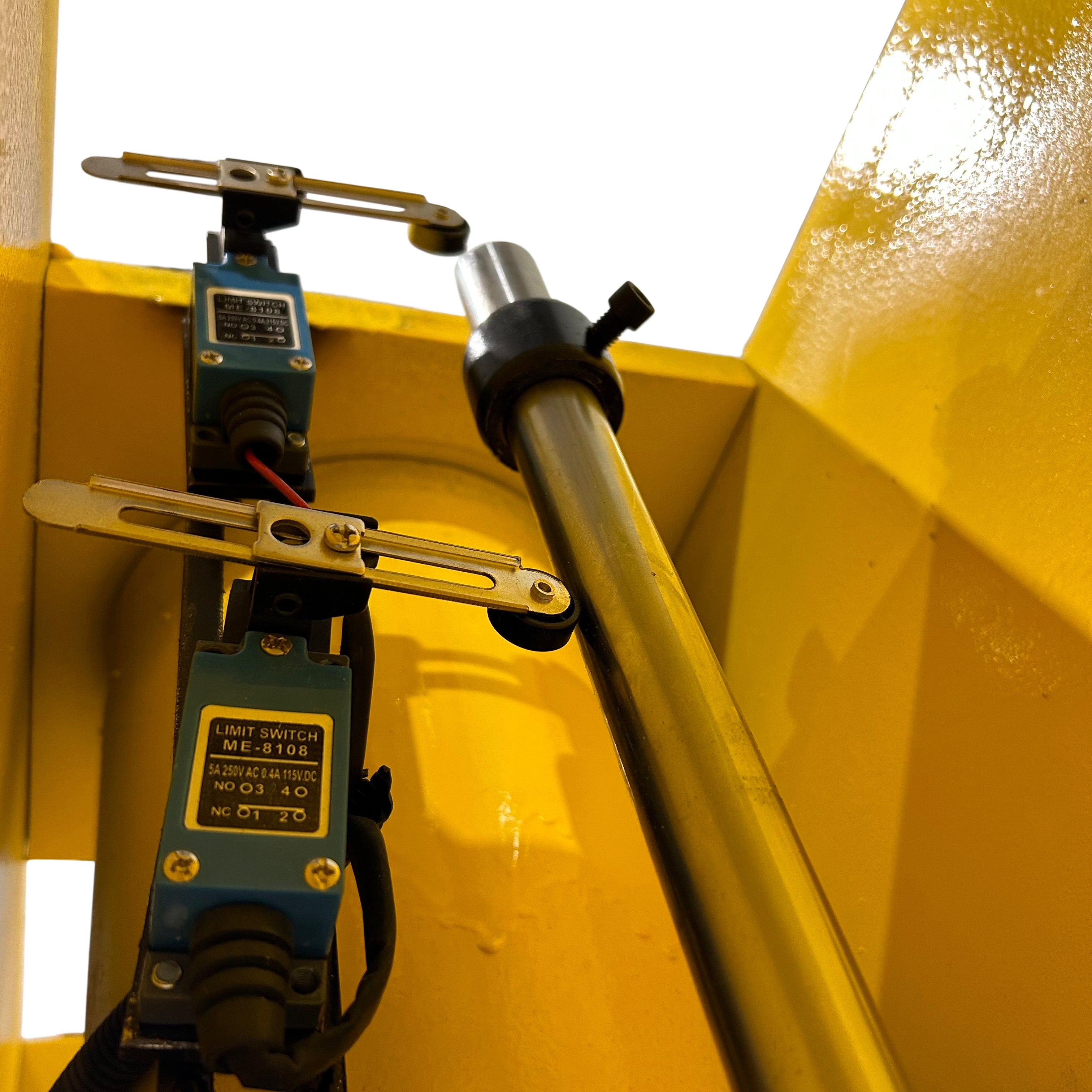

  • Stroke control
  • Large pressing bed
  • Cylinder guide bars
  • Large working area
  • Easy-to-use foot controls
  • Pressure gauge
  • 1 Phase 220 volt on-board power plant.
  • Free goose neck top punch and multi side rotational bottom die.(see note on bottom)*



Common applications for this machine include.**

    • Bending and forming metal
    • End-forming metal pipes with flatten, trim and punch tooling, up to  3" outside diameter
    • Tube and pipe punching with mandrel die set
    • Square tube punching with mandrel die set
    • Punching flat metal plate or bar stock
    • Punching multiple holes simultaneously, 2,3,4,5,6 hole punching.
    • Large radius plate corner rounding die set
    • Broaching with broaching tooling set
    • Straighten metal
    • Metal forming
    • Cold bending
    • Pipe and tube bending
    • Trim and part die set
    • Double trim and part die set
    • Other custom applications

 FINANCE YOUR NEW PRESS TODAY!  APPLY NOW!

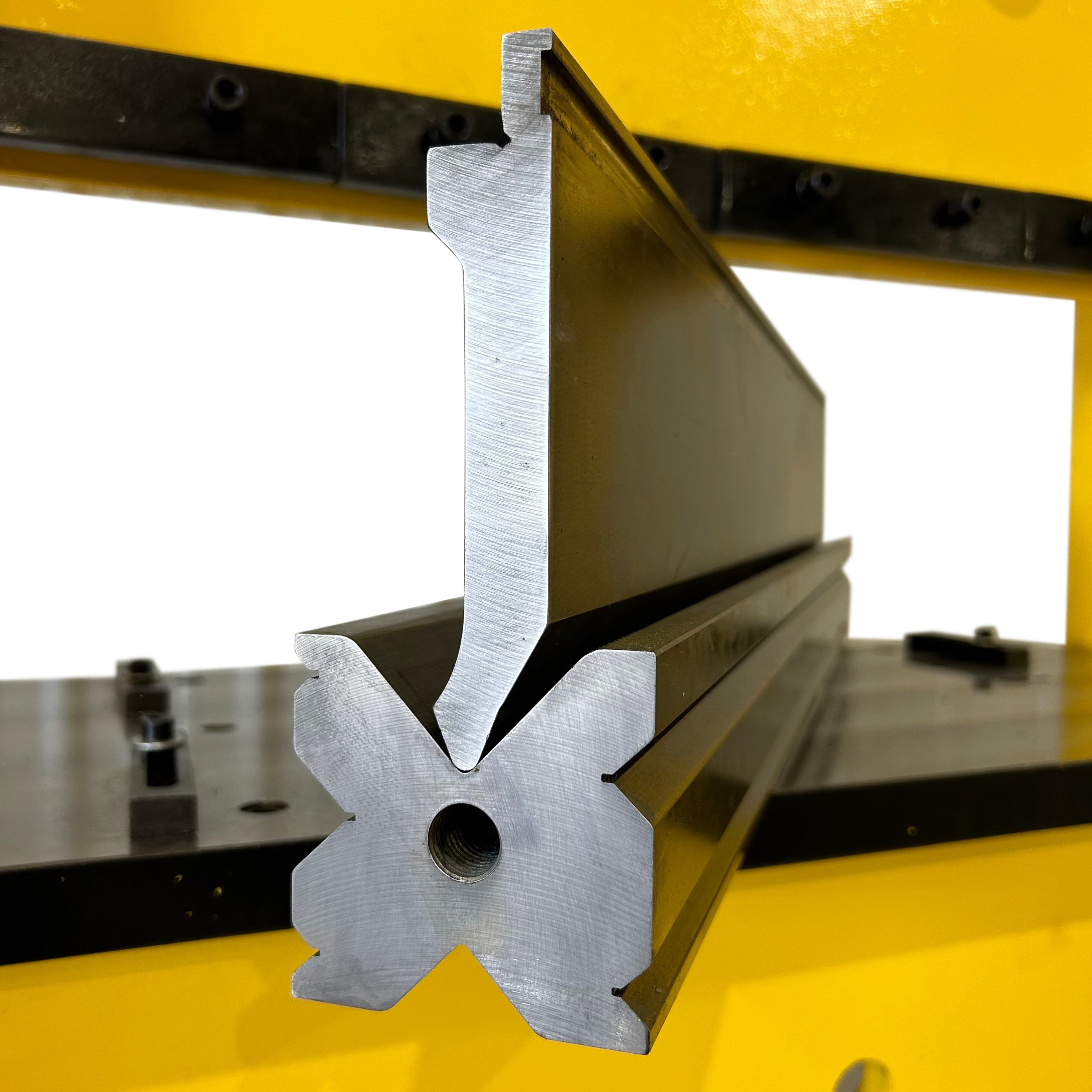

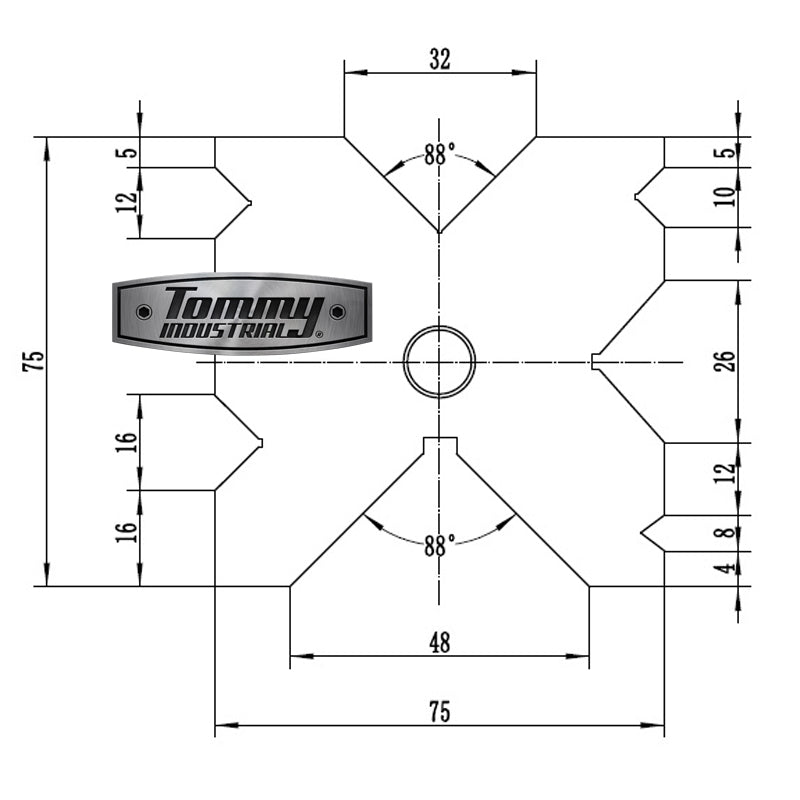

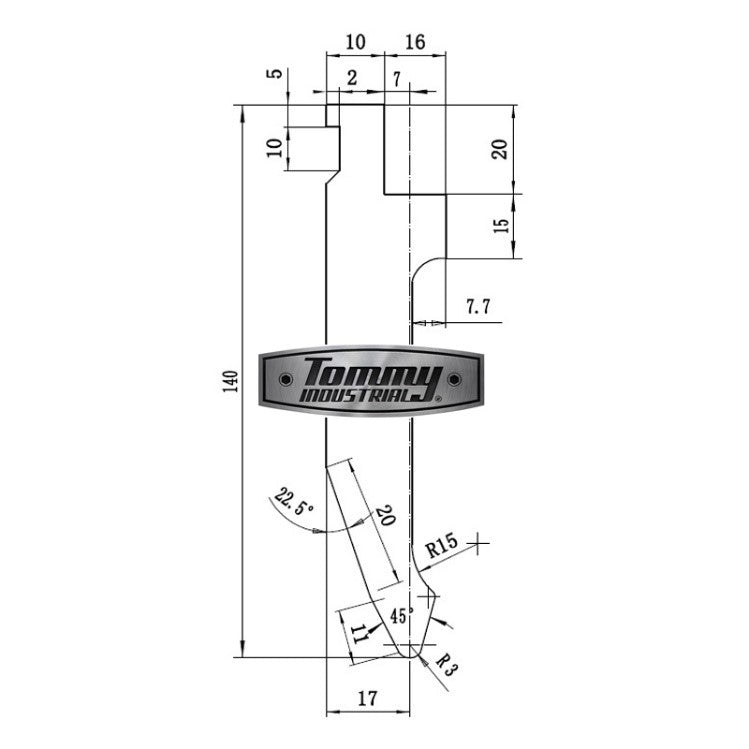

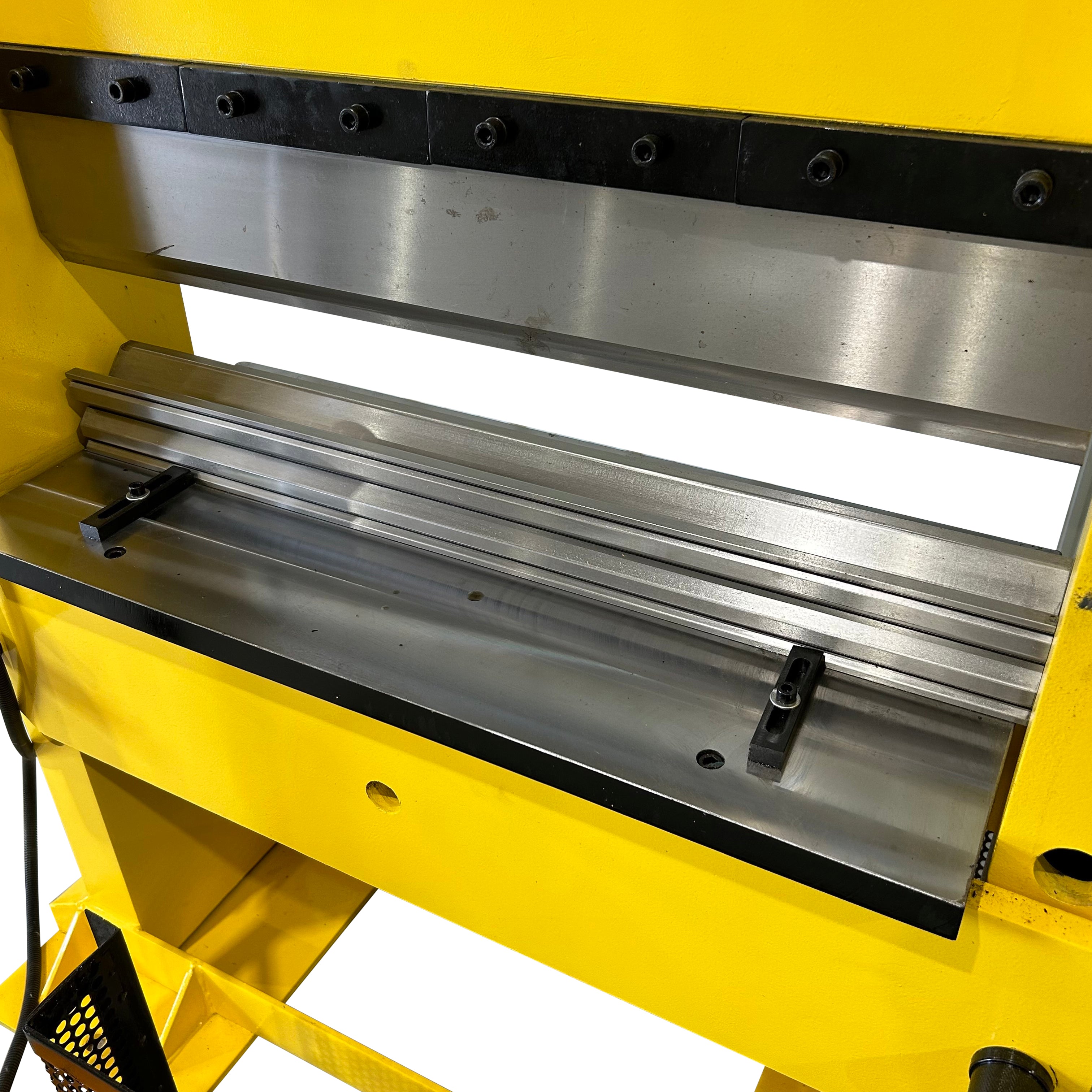

*Note* This Tommy Industrial® mini brake includes a general-purpose goose-neck punch and multi-opening die.  The included general-purpose goose-neck punch and multi-opening die are for training purposes only, there is no warranty on these items.  End user should purchase tooling to meet their unique needs and specification's.

**Applications may require additional tooling.



Model TIHPB-50 Specifications
Item Imperial Metric
Tons 50 56
Pressure 3626 psi 25 mpa
Piston travel 9 in 220 mm
Table travel 16 in 405 mm
Table size 16/32 in 400/800 mm
Drive capacity Motor rating main drive 1P 220V 60Hz 4 hp 3 kW
Measurements Packing size 59x256x77 in 150x650x195 cm
Weight 2425 lbs 1100 kg
