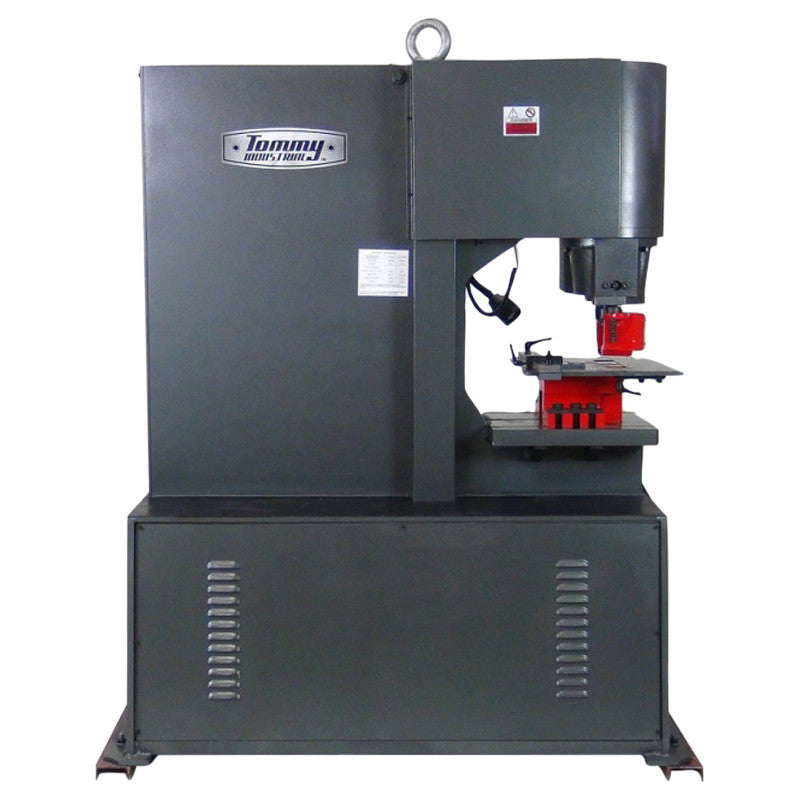

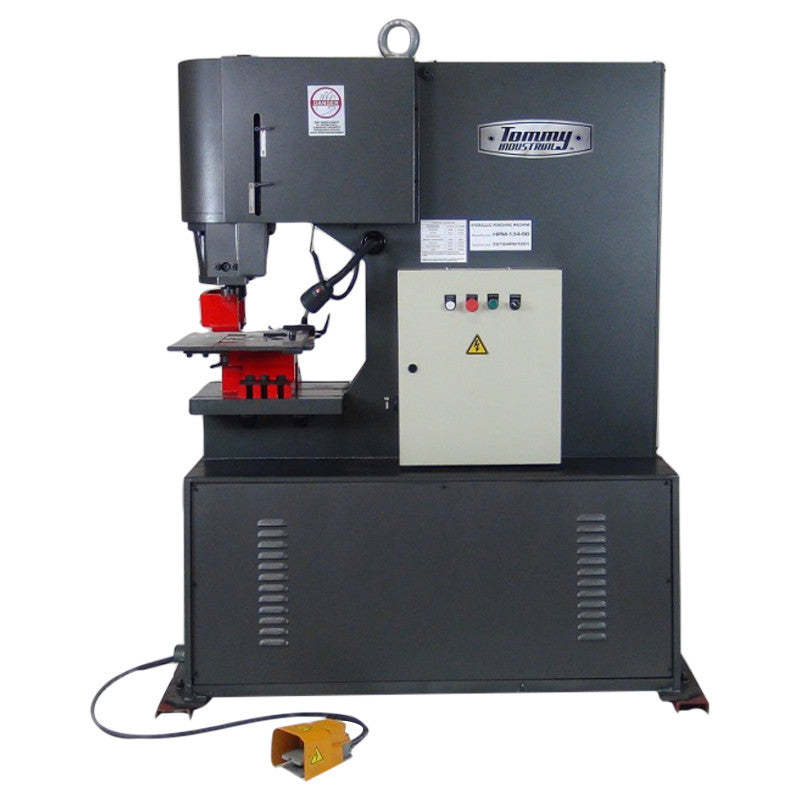

67 Ton Hydraulic Punching Machine

HPM-67

Our Best Value 220V 3Phase 67 Ton Hydraulic Punching Machine with Oversized Work Tables for Punching, Flat Bar, Angle Iron, Channel Iron and Pressing Custom Tooling. 11.81” Throat Depth. 3.14” Maximum Stroke Length. Up to 22 Strokes Per Minute. Includes 10 Punch and Die Sets.

  • Super commercial all-welded construction

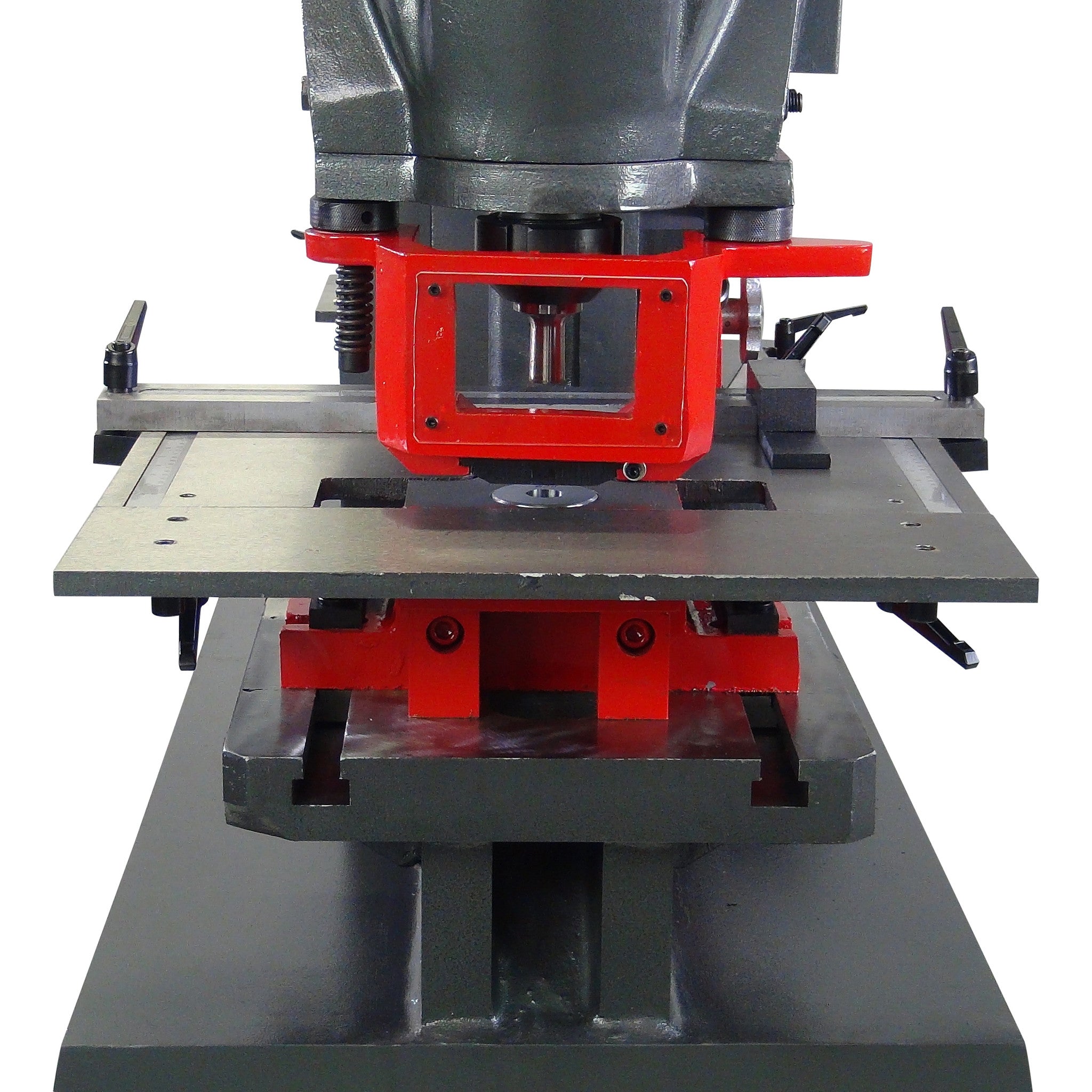

  • Large oversized punching table with quick change punch coupler
  • Endless custom tooling possibilities

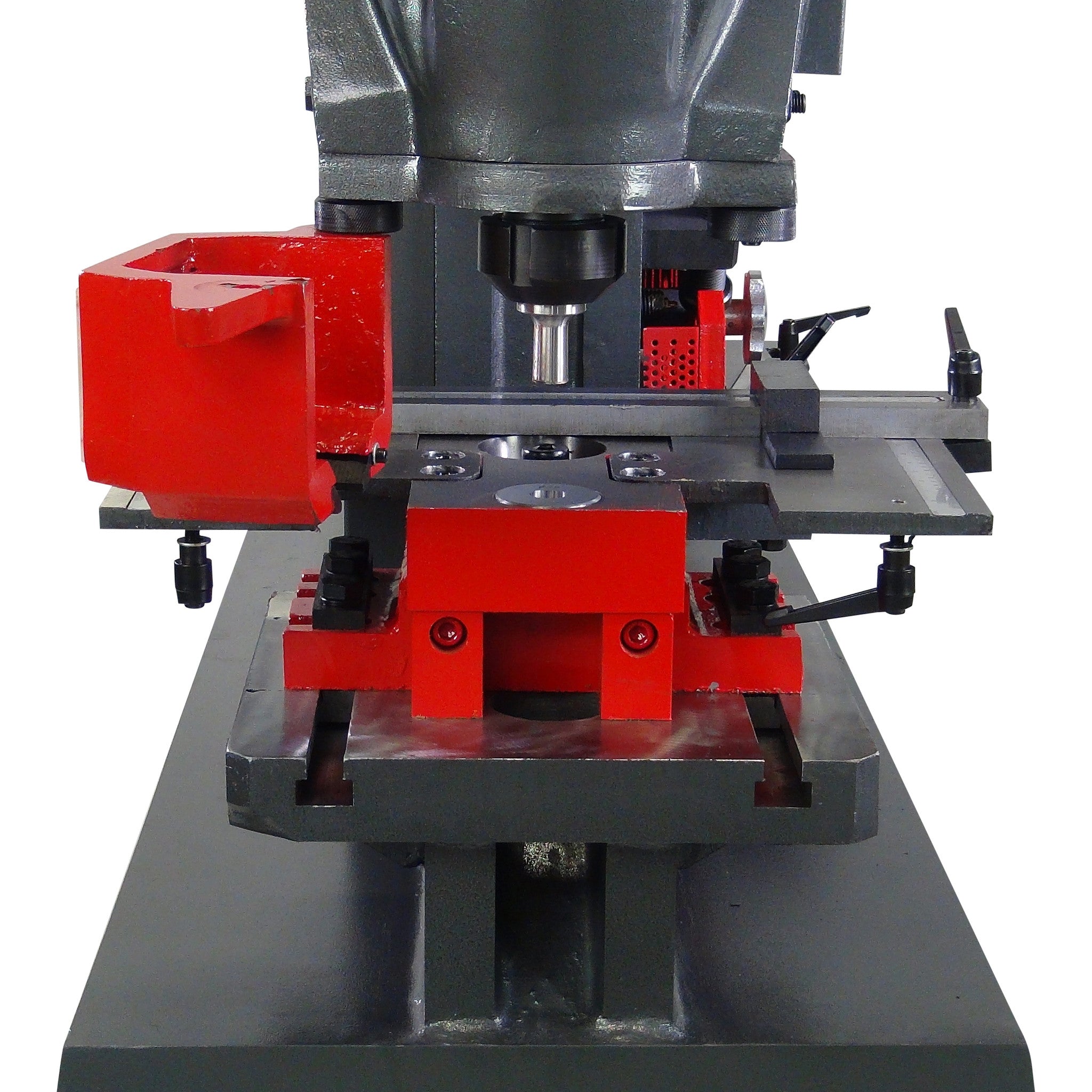

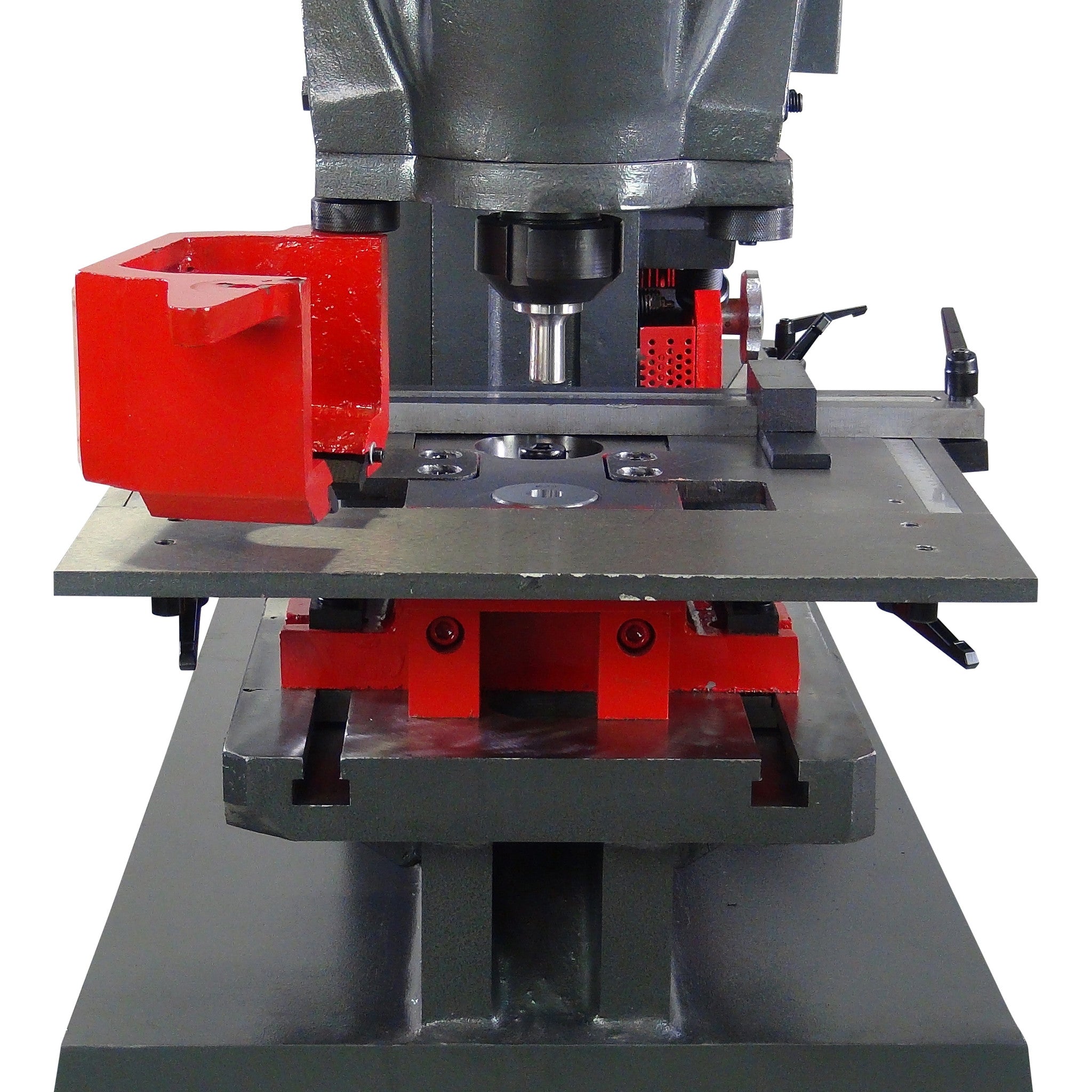

  • Swing-away Stripper Assembly
  • Electronic Stroke Control
  • LED lighting
  • E-Stop / Lockout-Tagout
  • Quick Change Punch Assembly
Model HPM-67 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) .98" x .62" 25 x 16 mm
Punch (pressure) 67 Tons 600 KN
Max Stroke 3.14" 80 mm
Stroke times (times/min) 8 8
Cycles/min 22 at .78"
Motor power (220V 1/3 Phase) 5 HP 4 KW
Depth of Throat 11.81" 300 mm
Dimension Length 59" 1500 mm
Width 31.5" 800 mm
Height 70" 1780 mm
Weight 3,527 lbs 1600 kg
* denotes optional tooling.

Model HPM-67 Specifications
Item Imperial Metric
Hole Punching Capacity (diameter* thickness) .98" x .62" 25 x 16 mm
Punch (pressure) 67 Tons 600 KN
Max Stroke 3.14" 80 mm
Stroke times (times/min) 8 8
Cycles/min 22 at .78"
Motor power (220V 1/3 Phase) 5 HP 4 KW
Depth of Throat 11.81" 300 mm
Dimension Length 59" 1500 mm
Width 31.5" 800 mm
Height 70" 1780 mm
Weight 3,527 lbs 1600 kg
* denotes optional tooling.

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
