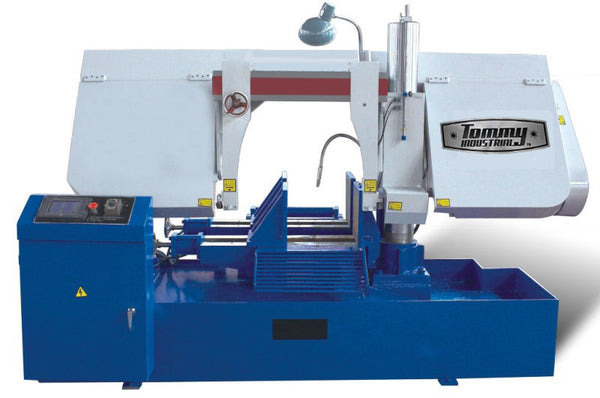

11-3/4" Automatic CNC Column Band Saw

TI-BSCGZX4030

The Tommy Industrial Automatic CNC Column Band Saw is available in 14 models and with some models featuring a mitering capability.  This band saw line offers the highest level of options including hydraulic claping to the fully integrated CNC panel and operating system.

Some standard features include:

 *Machine interface instead of traditional control panel and sawing parameters are set in figures.

  *PLC (programmable logic controller) for flexible setting of sawing modes.

  *Automatic material feeding  with positioning less than 0.008” error.

Model TI-BSCGZX4030 Specifications
Item Imperial Metric
Capacity Round Bar 90° Φ11.81in Φ300mm
Square Bar 90° 13.78x8.66in 350x220mm
Round Bar 75° Φ11.81in Φ300mm
Square Bar 75° 13.78x8.66in 350x220mm
Round Bar 45° Φ11.81in Φ300mm
Square Bar 45° 11.81x8.66in 300x220mm
