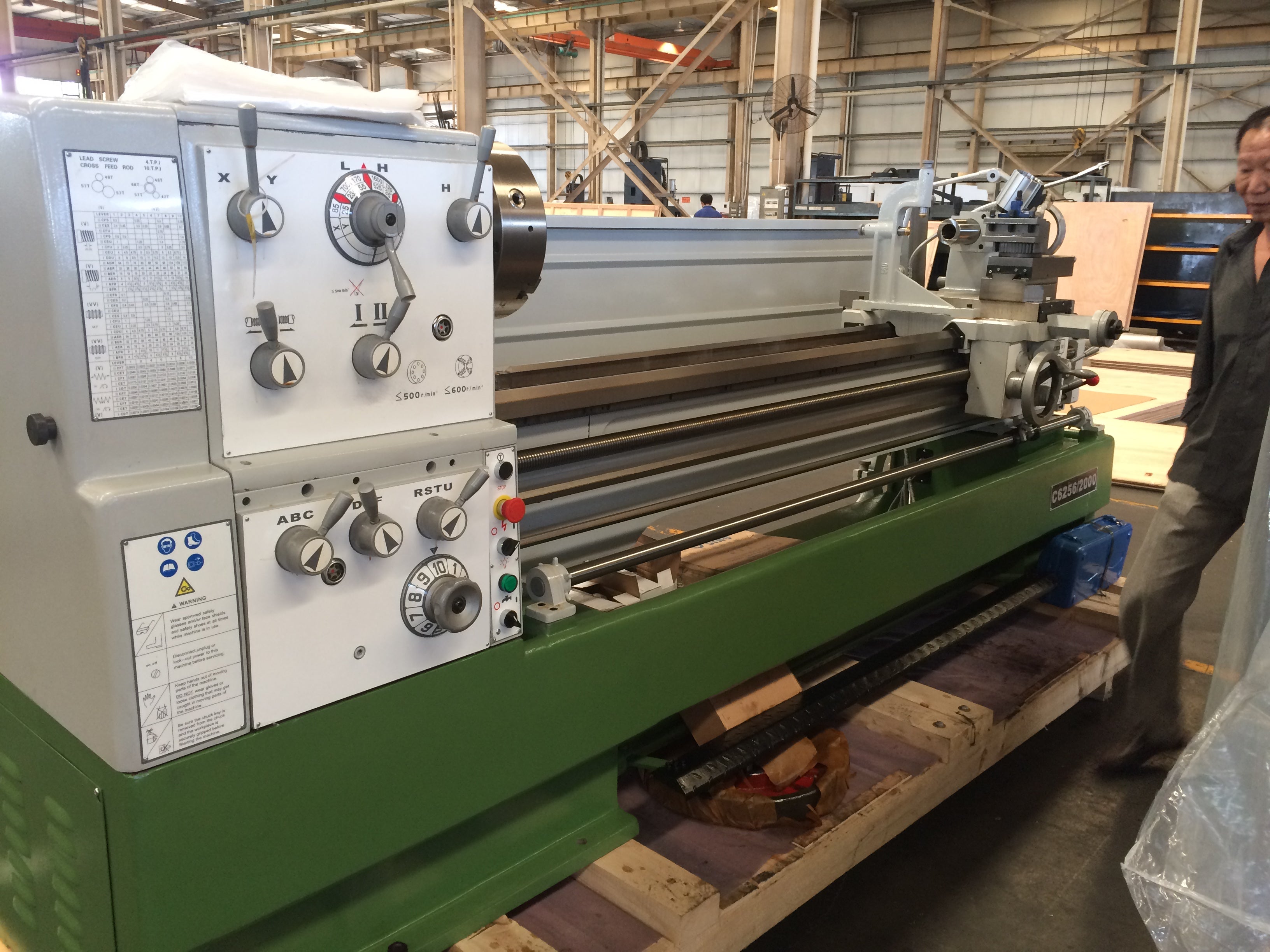

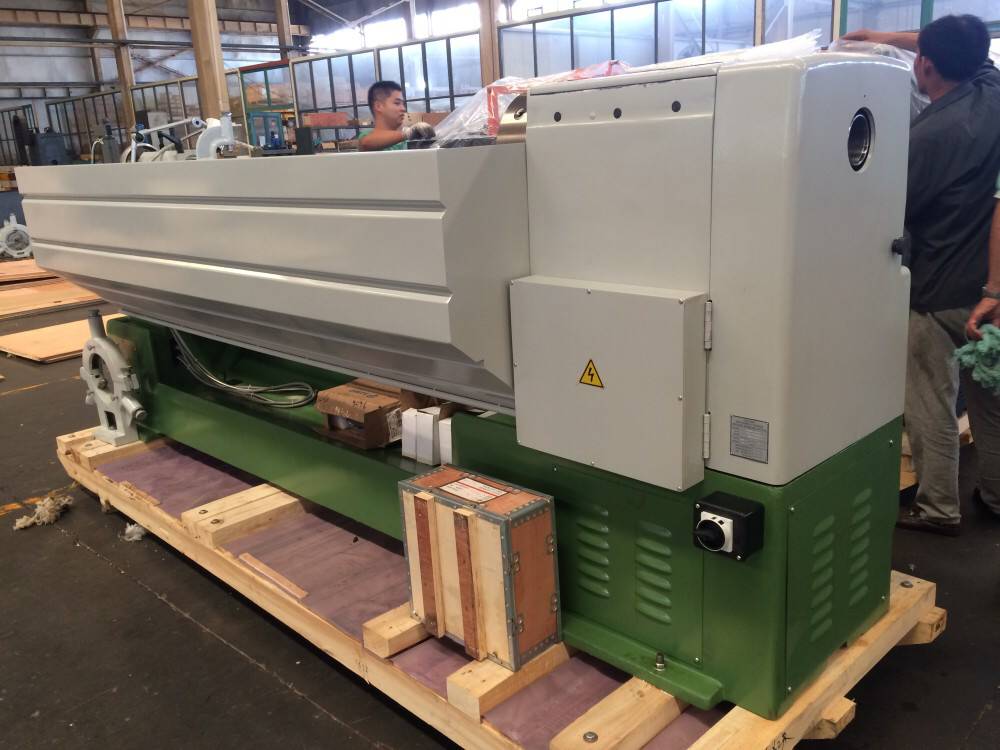

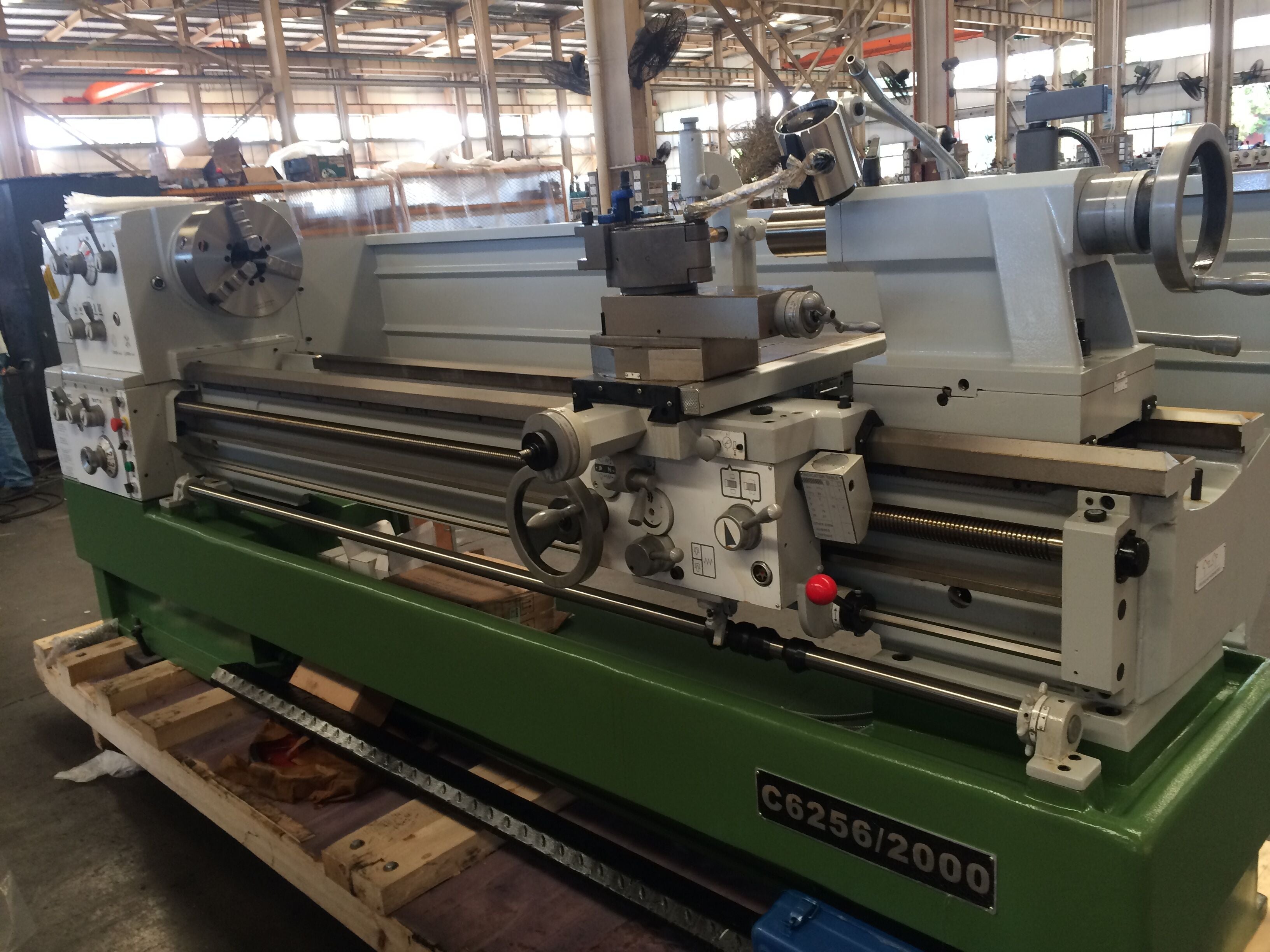

C6256/3000 Lathe Machine
Foot stand, Foot brake, Coolant system, Work light, 315mm/D8 Three jaw chuck, 350mm/D8 Four jaw chuck, Steady rest, Follow rest, Face plate, 4-way tool post, Splash guard, Thread chasing dial, Reduction sleeves, dead centers, Changing gears, Toolbox & tools 1set.
|
Specification |
Models |
|
C6256×3000 |
|
|
CAPACITY |
|
|
Swing over red |
560mm(22") |
|
Swing over cross slide |
355mm(13-3/4") |
|
Swing in gap diameter |
785mm(31") |
|
Valid length of gap |
200mm(8") |
|
Distance between centers |
3000mm(120") |
|
Width of bed |
350mm(13-3/4") |
|
HEADSTOCK |
|
|
Spindle nose |
D1-8 |
|
Spindle bore |
80mm(3-1/8") |
|
Taper of spindle bore |
No.7Morse |
|
Range of spindle speed |
12changes 25-1600r/min |
|
FEEDS AND THREADS |
|
|
Compound rest travel |
130mm(5-1/8") |
|
Cross slide travel |
316mm(12-15/16") |
|
Lead screw thread |
6mm or 4T.P.I |
|
Max. section of tool |
25×25mm(1×1") |
|
Longitudinal feeds range |
35 kinds 0.059-1.646mm/rev (0.0022"-0.0612"/rev) |
|
Cross feeds range |
35 kinds 0.020-0.573mm/rev (0.00048"-0.01354"/rev) |
|
Threads metric pitches |
47 kinds 0.2-14mm |
|
Threads imperial pitches |
60 kinds 2-112T.P.I |
|
Threads diametral pitches |
50 kinds 4-112D.P. |
|
Threads module pitches |
39 kinds 0.1-7M.P. |
|
TALLSTOCK |
|
|
Quill diameter |
75mm(3") |
|
Quill travel |
180mm(7") |
|
Quill taper |
No.5Morse |
|
Cross adjustment |
±13mm(±1/2") |
|
MOTOR |
|
|
Main motor power |
7.5kW(10HP)3PH |
|
Coolant pump power |
0.1kW(1/8HP),3PH |
|
DIMENSION AND WEIGHT |
|
|
Overall dimension(L×W×H) (cm) |
434×114×146 |
|
Packing size(L×W×H) (cm) |
440×114×174 |
|
Net weight/Gross weight (kg) |
2930/3410 |
- Optional accessories:
|
No. |
Specifications |
Price USD |
|
|
1 |
Lead screw cover 3 meter long |
Call |
|
|
2 |
Ordinary tool post guard |
Call |
|
|
3 |
CE requirement and Chuck guard with Siemens micro switch |
Call |
|
|
4 |
Add big electrical box:. |
Call |
|
|
5 |
SINO digital readout:, |
3meter and 2axis is |
Call |
|
3meter and 3axis is |
Call |
||
|
6 |
Live center point MT5 |
Call |
|
|
7 |
Taper attachment |
Call |
|
|
8 |
Quick change tool post: American-style 1 tool post and 4 tool holders (2sets turning tool holder and 2sets boring tool holder) |
Call |
|
|
9 |
Frequency conversion (with DELTA frequency converter and Variable frequency motor) |
Call (Variable frequency motor/ frequency converter: 7.5KW/7.5KW) |
|
|
10 |
EASSON digital readout |
Call |
|
|
11 |
Big spindle bore(105mm):. |
Call |
|
|
12 |
Z-axis Rapid action:. |
Call |
|
|
13 |
NSK bearing:. |
Call |
|
