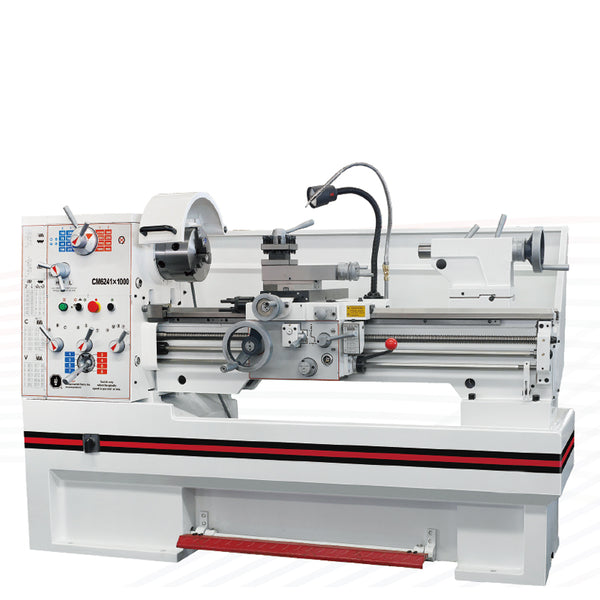

CM6241V/1500 Lathe Machine

CM6241V/1500

Whole foot stand, Foot brake, Work light, Coolant system, Steady rest, Follow rest, Face plate, 200mm 3-jaw chuck, 250mm 4-jaw chuck, 4-way tool post, Thread chasing dial, Splash guard, Reduction sleeves, Dead centers, Changing gears, Toolbox & tools 1set, DELTA frequency converter and Variable frequency motor (Variable frequency motor/ frequency converter: 5.5KW/5.5KW).

Specification

Model

CM6241V×1500

Capacity

Swing over bed

410mm(16 ")

Swing over cross slide

255mm(10 ")

Swing in gap diameter

580mm(23 ")

Length of gap

190mm(7-1/2 ")

Admits between

1500mm(60’’)

Center height

205(8")

Width of bed

250(10’’)

HEADSTOCK

Spindle nose

D1-6

Spindle bore

52mm(2’’)

Taper of spindle bore

No.6Morse

Range of spindle speed

30-550r/min or 550-3000r/min

FEEDS AND THREADS

Compound rest travel

140mm(5-1/2’’ )

Cross slide travel

210mm(8-1/4’’ )

Lead screw thread

4T.P.I.

Max. Section of tool (WxH)

20x20mm(13/16 ")

Longitudinal feeds range

0.05-1.7mm/rev(0.002 " -0.067 " /rev)

Cross feeds range

0.025-0.85mm(0.001 " -0.0335 " /rev)

Threads metric pitches

39kinds 0.2-14mm

Threads imperial pitches

45kinds2-72T.P.I

Threads diametral pitches

21kinds 8-44D.P.

Threads module pitches

18kinds 0.3-3.5M.P.

TAILSTOCK

Quill diameter

50mm(2’’ )

Quill travel

120mm(4-3/4 ")

Quill taper

No.4 Morse

Cross adjustment

±13mm(±1/2 ")

MOTOR

Main motor power

2.2/3.3kW(3/4.5HP)3PH

Coolant pump power

0.1kW(1/8HP),3PH

DIMENSION AND WEIGHT

Overall dimension(L x w x H)

244 x 85 x 132cm

Packing size(L x W x H)

256 x 90 x 164cm

Net weight/Gross weight

1565kg

Optional accessories:

No.

Specifications

Price USD

1

Lifting screw cover

CALL

2

Simple tool post guard

CALL

3

CE requirement and Chuck guard with Siemens micro switch (Siemens)

CALL

4

Add big electrical box:

CALL

6

Live center point MT4

CALL

7

Taper attachment

CALL

8

American-style, 1 tool post and 4 tool holders (2sets turning tool holder and 2sets boring tool holder)

CALL

9

EASSON digital readout

CALL

10

NSK bearing

CALL

Model CM6241V/1500 Specifications
Item Imperial Metric

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
