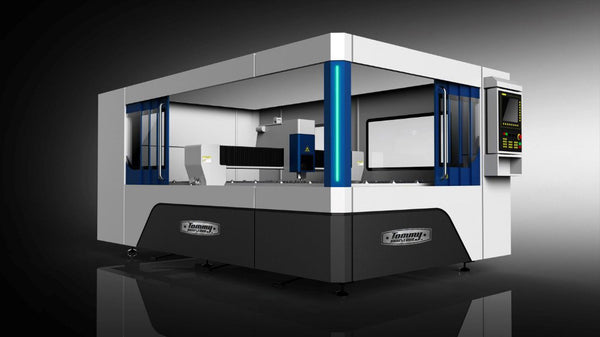

157" X 78"CNC Fiber Laser

TI-FL3000

*Gantry double drive structure, smooth and reliable movement;

* Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;

* Precision gear rack drive, with high response and high precision servo motor;

–*The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;

*High precision laser cutting head, imported optical lenses, is focused on the fine, the  adjustment is convenient, cutting perfect;

* A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable;

* CNC system is concise and easy operation, low requirements for the operator;

* Cutting graphic input multiple formats, powerful draw and edit graphics function;

* Special cutting software, cutting technology experts, data call functions;

* Feeding auxiliary sliding device, automatic refueling system

Main features:

*The photoelectric conversion efficiency can reach 30%, twice that of CO2;

*.Less power consumption, CO2 is 20% ~ 30%;

*.No laser work gas, can save a lot of laser maintenance cost;

*.Optical fiber transmission, without reflection lens, do not need to adjust the light path.

*.Used for cutting non-ferrous metals, aluminum alloy, copper and other materials



Product features:

* Gantry double drive structure, smooth and reliable movement;

* Independent research and development design, the manufacture of machine tool bed, special processing technology, high precision of machine tool, stable and reliable, long life;

* Precision gear rack drive, with high precision gear reducer, high response and high precision servo motor;

* The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;

* High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect;

* A double closed-loop control capacitive torch height controller, low requirement to the steel plate, cutting quality is stable and reliable;

* CNC system is simple and easy operation, low requirements for the operator;

* Cutting graphic input multiple formats, powerful draw and edit graphics function;

* Special cutting software, cutting technology experts, data call functions;

* Automatic refueling system

* Cutting gas pressure proportional valve to adjust automatically

Model TI-FL3000 Specifications
Item Imperial Metric
Max Cutting Size 157.5x78.74in 4000x2000mm
Max Height Of The Workpiece 3.5in 90mm
Effective Travel X Axis 159.45in 4050mm
Y Axis 80.71in 2050mm
Z Axis 3.94in 100mm
Positional Accuracy X Axis ±0.0020in ±0.05mm
Y Axis ±0.0020in ±0.05mm
Z Axis ±0.00039in ±0.01mm
Repeated Positional Accuracy X Axis 0.0012in ±0.03mm
Y Axis 0.0012in ±0.03mm
Z Axis 0.00020in ±0.005mm
Repid Positioning Speed X Axis 3.15in 80mm
Y Axis 3.15in 80mm
Z Axis 1.18in 30mm
Accelerated Speed 32.174 ft/s/s 1G
The Laser Power 0.67hp/0.94hp/1.34hp/2.011hp/2.68hp/4.02hp 500w/700w/1000w/1500w/2000w/3000w
The Power Consumption of The Machine Tool 6.3KwH
Level of Protection IP54
Total Weight 6.25 tons
Boundary Dimension LxWxH 212.2x122.2x52.2in 5391x3105x1326mm
