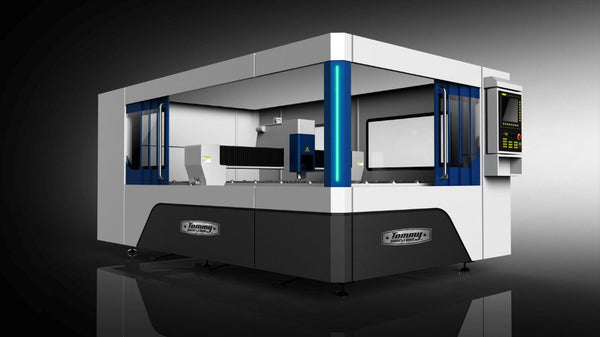

The Tommy Industrial Laser cutting machine is the most stable, most professional product with the advanced laser generator. It is the integration of laser technology, digital control and precision transmission and drive system.
Working Principles:
Laser cutting machine is the application of laser wavelengths for 1070mm pulse laser beam expander, reflection, by focusing the radiation surface processing, surface heat through the heat conducting internal diffusion, through precise digital control laser pulse width, energy, power, and peak frequency and other parameters, the evaporation, melting, forming a slit, thus realizing the work piece in laser cutting.
Advantage:
Application:
2. Widely used in sheet metal processing, metal ware, kitchen appliance, household appliance, medical instrument, precision equipment, electric control box, auto parts, poster, and lighting industry.
Item | Imperial | Metric | |
---|---|---|---|
Max Cutting Size | 236.22x78.74in | 6000x2000mm | |
Max Height Of The Workpiece | 4.33in | 110mm | |
Effective Travel | X Axis | 240.16in | 6100mm |
Y Axis | 82.68in | 2100mm | |
Z Axis | 5.91in | 150mm | |
Positional Accuracy | X Axis | ±0.0020in | ±0.05mm |
Y Axis | ±0.0020in | ±0.05mm | |
Z Axis | ±0.00039in | ±0.01mm | |
Repeated Positional Accuracy | X Axis | 0.0012in | ±0.03mm |
Y Axis | 0.0012in | ±0.03mm | |
Z Axis | 0.00020in | ±0.005mm | |
Repid Positioning Speed | X Axis | 4.72in | 120mm |
Y Axis | 4.72in | 120mm | |
Z Axis | 1.18in | 30mm | |
Accelerated Speed | X Axis | 41.83 ft/s/s | 1.3G |
Y Axis | 41.83ft/s/s | 1.3G | |
Working Platform Loading Weight | 5291.1lbs | 2400kg | |
Working Platform Raising Time | 15 seconds | ||
Working Platform to Exchange Time | 25 seconds | ||
The Laser Power | 0.67hp/0.94hp/1.34hp/2.011hp/2.68hp/4.02hp/5.36hp | 500w/700w/1000w/1500w/2000w/3000w/4000w | |
The Power Consumption of The Machine Tool | 10.25KwH | ||
Total Weight | 13.8 tons | ||
Boundary Dimension LxWxH | 600.79x126.97x83.86in | 15260x3225x2130mm |
