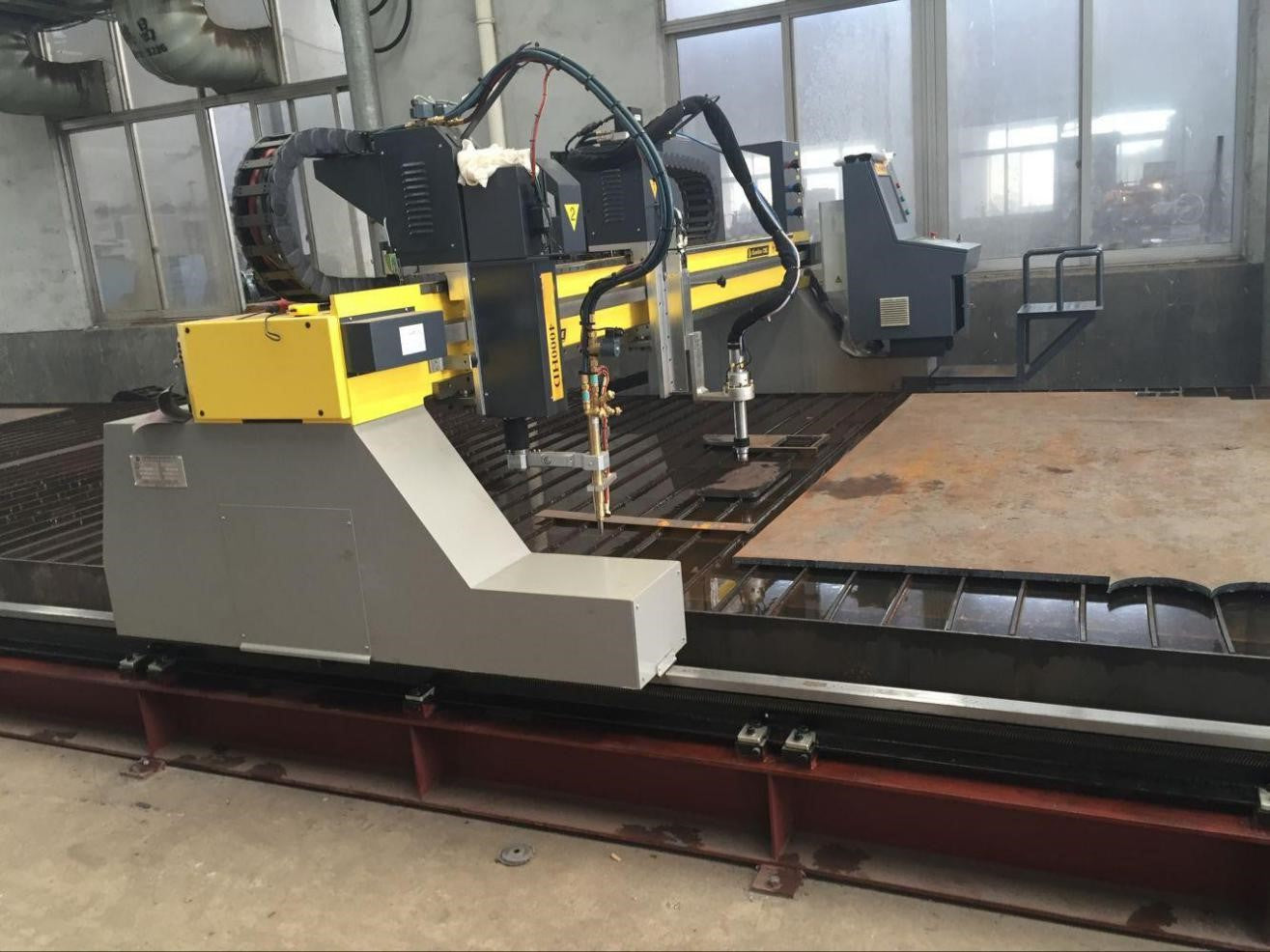

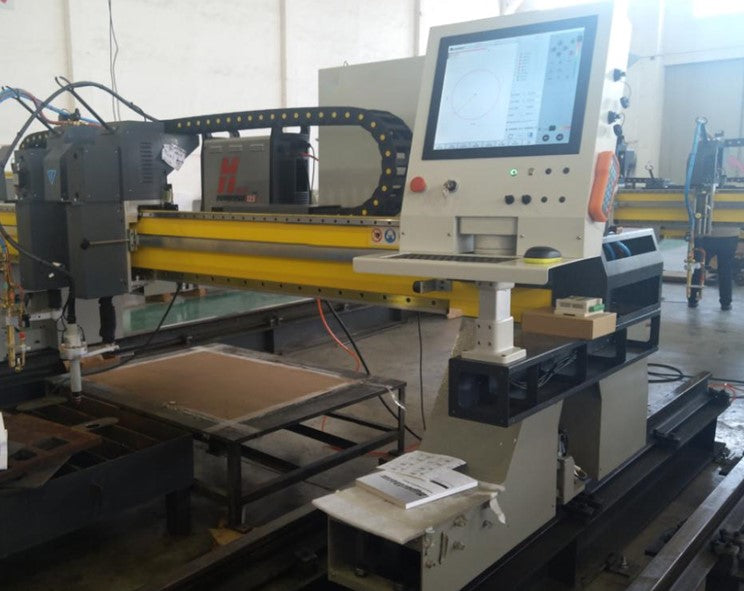

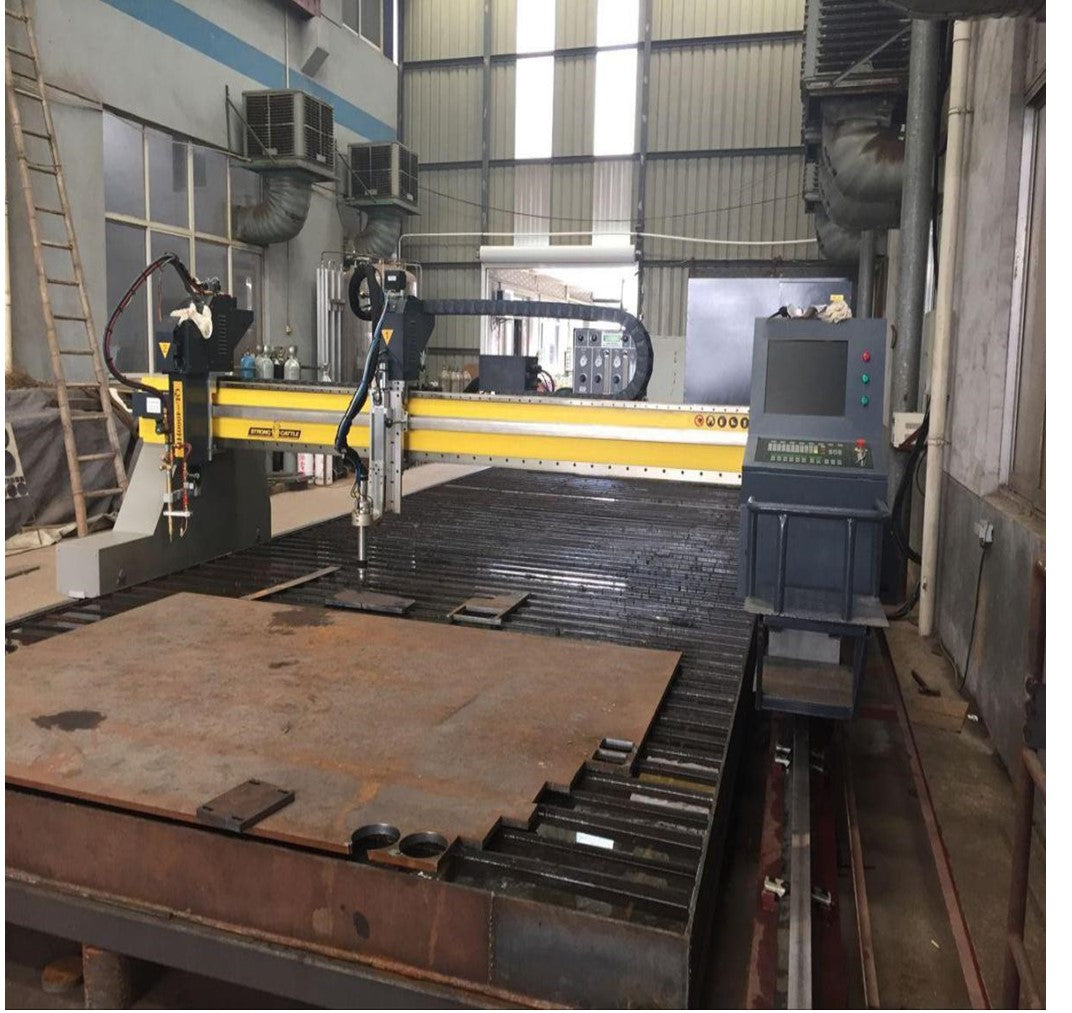

CNC PLASMA CUTTING MACHINE HST-3500×11000D American Hypertherm Powermax105

Sku: HST-3500×11000D

CNC PLASMA CUTTING MACHINE HST-3500×11000D American Hypertherm Powermax105

Requirement of working environment

1.

Temperature of working condition

-10℃-50℃

2.

Relative humidity

90% non-condensation

3.

Periphery environment

Airy, no impact within 5m

4.

Machine power voltage (single –phase)

220VAC±5%

5.

Plasma power supply voltage (3 –phase)

380VAC±5%

6.

Power frequency

50Hz

7.

Input power

Machine tool 3KW; plasma 17KW

8.

Type of grounding

Centralized and direct









III.Basic configuration

No.

Items

Quantity and gauge

Instruction

1

Model of the mainframe

HST-3500×11000D

Double sides driven (Panasonic)

2

Track span of the machine tool (mm)

3500

Effective cutting width2500

3

Track length of machine tool (mm),U71Mn,43kg/m

11000

Effective cutting length 8000

4

CNC system(set)

1

American Hypertherm EDGE Connect CNC

5

Transverse driving station (group)

1

For plasma

6

Plasma power supply(set)

1

American Hypertherm Powermax105

7

Arc height controller

1

American SensorTHC(control part)

8

Plasma anti-collision device

1

Magnetic type,360° anti collision

9

Servo drive,motor

4

Panasonic Japan

10

Planetary gear box

3

Shimpo Japan

11

Air conditioner

1

Sanhe Tongfei

12

Linear guide track

1

Taiwan PMI

13

Sliding block automatic oiling device

1

Nanjing Xunrun

14

Laser pointer

1

US Banner

15

Nesting software

1

Australia FastCAM professional version

16

Displayer

1

19”LCD ,touch screen

17

Operating chair

1

Self made

18

Voltage stabilizer

1

Shanghai Xishun

19

Voltage transformer

1

Shanghai Xishun

20

Water cutting table

1

Self made

21

Machine operating direction



Left direction operating

22

Cutting mode



Plasma

23

Machine size



11000x4300x2000

24

Machine color



Yellow and grey (can be customized)



IV. Technical index



No.

Items

Attainable index

1.

The elevation stroke of cutting torch (mm)

200

2.

Cutting thickness(mm)

Plasma quality cutting :12

3.

Installation accuracy of guide track

1) Lateral linearity of main guide track: 0.4mm/4000mm

2) Lateral linearity of assistant guide track: ≤0.4mm/4000mm

3) Parallel between longitudinal rail-face and level surface of main and assistant guide track: ±0.4mm/1000mm

4.

Cross-over point excursion

0.3mm

A) Bearing accuracy and repeat accuracy of the whole machine: corresponding to JB/T5102-1999 standard.

B) Accuracy of cutting size and quality of cross-over: corresponding to JB/T10045.4-1999 standard

5.

linearity

0.2mm

6.

Circularity

0.3mm

7.

Diagonal deflection

0.3mm

8.

Repeat bearing accuracy

0.2mm

9.

Travel speed

12000mm/min

10.

Cutting speed

Plasma :0-6000mm/min



Description of equipment

1.  Brief introduction of CNC system

1.1 American Hypertherm CNC system

New with EDGE®  Connect CNC

• Hypertherm’s Phoenix® version 10 CNC software

• Microsoft Windows 10 embedded operating system

• ProNest® CNC automatic nesting with process optimization

• Internal software Programmable Logic Controller (PLC) and software-based operator’s console that enable unique cutting machine features

•  EtherCAT machine interface for easy connectivity and superior motion

Easy to use

Hypertherm’s proprietary Phoenix software is common across the entire family of CNCs. This software is designed specifically for the X-Y and bevel cutting market. Through years of cutting experience, Hypertherm® engineers have learned the critical parameters to achieve superior cut quality on every part.

Phoenix CNC software improves cut quality and productivity by delivering our expertise directly to your factory, making it as if you have your best operator on every shift.

•  Using the patented CutPro® Wizard, even new operators can be ready to cut production parts in less than five minutes

ProNest CNC nesting

ProNest® CNC software enables users to obtain optimal cut quality for nested part programs created using EDGE® Connect.

•  Through the touch screen interface, machine operators can conveniently create nested part programs without extensive training.

•  Empowers the machine operator for higher productivity and is an excellent companion package to offline ProNest software.

•  Directly import DXF, DWG and CNC simple shapes.

•  Embedded SureCut™ technology



to maximize performance through embedded expertise

•  Patented True Hole® technology with process verification ensures all operator variables are properly set.

•  Pattern Array Nesting for a single part with process optimization included.

•  Optional True Shape Nesting module for multiple parts available for purchase.

•  n-screen Software Operator’s Console (Soft OpCon) for easy setup and operation of cutting station and manual motion

  1. mechanical part

1) Portal frame of machine

The mainframe is composed of beam and two longitudinal driving frames. The beam is adopted  to welding square steel structure with stress release by tempering, high intensity and rigidity.Upper linear guide and below fine grinding guide track are assembled in front wall of the beam .The machine realizes high accuracy moving by gear and gear rack at transverse direction .And assistant transverse station driven by steel band .



Longitudinal guide track adopts high accuracy fine milled guide track, the clamping wheel is tightly fixed at the bottom of the longitudinal driving frame. Assuring the reliable running of the machine. Longitudinal driving system is equipped in the longitudinal driving frame, low-position design makes the transmission reliable and stable. At the bottom of the longitudinal driving frame, there are two wheels with bearing in front and behind, which can roll smoothly along the guide track.there is longitudinal guide track scraper to clear the scrap iron and others to guarantee no sundries on the surface of the guide track, there is off-set clamp wheel in each side bottom of the longitudinal frame, guaranteeing the guiding accuracy of the machine .

2) The driving of the machine

The driving of the machine is realized by the reliable servo motor system of Panasonic. Longitudinal and transverse driving devices are all composed of gear and accurate gear rack, guaranteeing the high accuracy in the continual running. XY axis decelerator each adopts original decelerator of Japanese SHIMPO, guaranteeing the low running noise and the gear gap.



Torch lifter driving: it adopts DC motor directly driving which makes the cutting torch up and down by ball screw , assuring the torch moves stable and reliable when up and down .





  1. Electrical component

HST series products are adopted the latest technical servo system and logical control system. Selecting AC servo driver and motor of Panasonic.

Main function and characteristic of the AC servo system of Panasonic:

    Adopt special arithmetic of Panasonic, make the response of speed frequency increase by 2 times and reach 500HZ;

    Functions of resonance withhold and controlling: the frequency response of high speed, super-position adjustment will be shortened.

    A series of functions to convenient using.

    Containing frequency analysis functions (FFT), which can test the resonant point of the machine, convenient for adjust system.

    There are two kinds of type of auto gain adjustment: conventional auto gain adjustment and real-time auto gain adjustment.

    Equipped with RS485, RS232C communication port, the host controller can control 16 axis.

    Motor protection rating IP65, and its environmental adaptability is strong.











Plasma power source(American Hypertherm PMX105)

With the maximum power and performance for air plasma in our line, the Powermax105 delivers superior cut quality and piercing up to 22 mm (7/8"). It has the duty cycle and reliability for the most demanding cutting and gouging jobs. Seven Duramax torch styles provide greater versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.

Benefits:

1)    Maximum productivity

Fast cut speeds: three times faster than oxyfuel on 12 mm (½") mild steel.

Superior cut and gouge quality means less time spent on grinding and edge preparation.

2) Easy-to-use for cutting and gouging

Smart Sense™ technology automatically sets correct air pressure based on torch length and operating mode.

Handheld, straight machine and robotic torches for greater versatility and ease-of-use.

Wide voltage tolerance improves performance on motor generators and in low-line conditions.

Improved shield reduces dross buildup and enables smoother drag cutting for a better cut.

3) Built and tested to withstand the harshest conditions

Duramax™ torches are designed for high impact and heat-resistance.

SpringStart™ technology ensures consistent starting and a more reliable torch.

Low maintenance for maximum uptime – it keeps on going.

4) Low operating cost

Long consumable life for lower cost and more uptime.

Exclusive electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused.

High power efficiency lowers energy consumption.

Specs:

Input Voltages

CSA

CE

CE

CCC

200 – 600 V, 3-PH, 50/60 Hz

230 – 400 V, 3-PH, 50/60 Hz

400 V, 3-PH, 50/60 Hz

380 V, 3-PH, 50/60 Hz

Input Current @16.8 kW

CSA



CE

CE

CCC

200/208/240/480/600 V, 3-PH,

58/56/49/25/22 A

230/400 V, 3-PH, 50/29 A

400 V, 3-PH, 28 A

380 V, 3-PH, 30 A

Output current



30 - 105 A

Rated output voltage



160 VDC

Duty cycle @ 40°C (104°F)

CSA







CE







CE



CCC

200-600 V   70% @ 105 A, 240 V, 3-PH

80% @ 105 A, 480 – 600 V, 3-PH

100% @ 94 A, 480 – 600 V, 3-PH

100% @ 88 A, 240 V, 3-PH

230-400 V   70% @ 105 A, 230 V, 3-PH

80% @ 105 A, 400 V, 3-PH

100% @ 94 A, 400 V, 3-PH

100% @ 88 A, 230 V, 3-PH

400 V80% @ 105 A, 400 V, 3-PH

100% @ 94 A, 400 V, 3-PH

380 V80% @ 105 A, 380 V, 3-PH

100% @ 94 A, 380 V, 3-PH

Open circuit voltage (OCV)

CSA

CE

(200 – 600 V) 300 VDC, CE (230 – 400 V) 288 VDC

(400 V) 292 VDC, CCC (380 V) 280 VDC

Dimensions with handles



592 mm (23.3") D 274 mm (10.8") W; 508 mm (20.0") H

Weight with 7.6 m (25') torch

CSA

CE CE

CCC

45 kg (100 lbs)

45 kg (100 lbs) (230 – 400V)

41 kg (91 lbs) (400 V)

41 kg (91 lbs)

Gas Supply



Clean, dry, oil-free air or nitrogen

Recommended gas inlet

flow rate / pressure

Cutting:    217 l/min (460 scfh, 7.7 scfm)

@5.9 bar (85 psi)

Gouging:  227 l/min (480 scfh, 8.0 scfm)

@4.8 bar (70 psi)

Input power cable length



3 m (10' )

Power supply type



Inverter - IGBT





Arc Voltage Torch Height Controller [Hypertherm SensorTHC (control part)



Features

l   Complete built-in test for easy hook-up, system test, and configuration.

l   Built in user programmable process control parameters for initial height sense, plasma arc volts, torch height Disable, automatic kerf crossing detection, skip IHS, and IHS offset

l   Automatic retry on arc transfer error

l   Complete servo loop adjustments including proportional, integral, derivative, and feed-forward gains

l   Arc voltage range 50-300 VDC in 0.5 volt increments

l   Initial height sense can be done with ohmic contact or position error stall detection

l   Manual or full automatic height control

l   Auto Arc Voltage Set Preflow during IHS.

l   Support for arc style marking torches

This page has answers to the most common questions regarding product warranty, replacement parts, payment options, leasing, our locations, and in-house demos.

If you have questions on order fulfillment and logistics please see Shipping & Handling FAQs.

Jump to a section:

WARRANTY

WHAT IS TOMMY INDUSTRIAL'S WARRANTY?

All of our machines come with a one-year limited warranty.  Please click here to see the details.

Also included with all Tommy Industrial® products is a lifetime of free technical support and advice from our many machine experts. Our in house machine experts have real life metal working experience.

Back to Top

REPLACEMENT PARTS

DOES TOMMY INDUSTRIAL® SELL REPLACEMENT PARTS?

Yes, we carry the most common replacement parts for all machines in stock. In the rare event we do not have the part requested in stock, we will have it shortly.

Back to Top

PAYMENT OPTIONS

WHAT FORMS OF PAYMENT DO YOU ACCEPT?

We accept the following forms of payment for orders of $3,000.00 and under.

  • American Express
  • Discover
  • MasterCard
  • Visa
  • Wire Transfer
  • Purchase Orders

For orders greater than $3,000.00 we accept:

  • Wire Transfer
  • Company Check
  • Purchase Orders
  • Financing

LEASING

CAN I LEASE OR FINANCE A MACHINE INSTEAD OF BUYING IT?

Yes you can! We have an aggressive finance team that works for you! To learn more see our Leasing & Financing

Back to Top

OUR LOCATIONS

WHERE ARE TOMMY INDUSTRIAL® PRODUCTS MADE?

Tommy Industrial® products are made in manufacturing plants all over the world. Some of the factories are located in the USA, Portugal, Italy, Poland, England, Germany, China, France and Taiwan.

Back to Top

IN-HOUSE DEMOS

WHERE CAN I TEST OUT A TOMMY INDUSTRIAl® MACHINE?

Contact us to arrange for a demonstration of our equipment, we will set up the machines to work on the material used in your application.

Back to Top

Tommy Industrial® works hard to arrange timely intact and economical shipping for our customers. We work with many different shipping companies to ensure the best price for the shipment and pass those savings on to you.

You can also arrange your own shipping, when applicable, if you’d prefer. Talk to a customer service representative at 1-844-895-3316 for more information on this option.

HOW ARE ITEMS SHIPPED?

Tommy Industrial® ships items weighing less than 100 lbs. via UPS Ground. We ship items that weigh more than 100 lbs. or oversized items as truck freight. In this case, your delivery address must be accessible by tractor-trailer.

Truck drivers are not required to assist with unloading. You are responsible for unloading freight and for moving it into your shop. For shops without a loading dock, liftgate delivery is available for an additional charge.

For details, call and talk to a customer service representative 1-844-895-3316.

You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly.

HOW QUICKLY DO YOU SHIP ORDERS?

Ground Shipments (up to 100 lbs.)
Typically within 24 hours. Once processed, ground shipments that are in stock will usually leave our facility in a day or less.

Freight Shipments and Covid-19 (more than 100 lbs.)
Once processed, freight shipments that are in stock will usually leave our facility within 5 to 20 business days.  Please be advised that the Covid-19 Pandemic has led to shipping surges, this means that sometimes carriers are at capacity and will often not be able to pick up and or deliver shipments as scheduled.

To find out how long your order will take to arrive, please call us at 1-844-895-3316 and ask what the shipping delay will be.

HOW ARE SHIPPING AND HANDLING CHARGES CALCULATED?

Tommy Industrial® works with several different shipping companies to ensure the best price for the shipment, and we pass those savings on to you.

DO YOU OFFER EXPEDITED SHIPPING?

No, we cannot expedite the inspection, testing, and packaging portion of the lead time. However, we do have ways to shorten the delivery period of the shipment. Talk to a customer service representative at 1-844-895-3316 for more information.

WHAT IF I LIVE OUTSIDE OF THE 48 CONTIGUOUS US STATES?

Not a problem! Call 1-844-895-3316 and ask a customer service representative for information about your options.

DO YOU SHIP WORLDWIDE?

Yes, we do. Please call a Tommy Industrial® representative at 1-844-895-3316 for an updated freight quote.

WHAT IS THE FOB POINT?

We use FOB Origin for all shipments, which means that you are responsible for the merchandise from the time of purchase.

IRONWORKER LLC TERMS AND CONDITIONS OF SALE

These terms and conditions shall apply to all orders entered into by and between any distributor or any end-user of the Goods, whichever the case may be (“Buyer”) and IRONWORKER LLC. (“Seller”). These terms and conditions and any Seller quotation form submitted herewith or separately shall be collectively referred to hereinafter as the “Agreement.” Seller shall accept orders, sell Goods, and do business only upon these terms and conditions. Any additional or different terms in Buyer’s purchase order or other purchase documentation are deemed material alterations to this Agreement, and Seller hereby gives notice of its objection to them. The term “Goods” means all items sold and/or provided by Seller to Buyer, whether goods, materials, products to be manufactured and delivered, services to be rendered, or any combination thereof.

Price. If any price quotation is stated on the face hereof, such price quotation shall be good only for a period of thirty (30) days from the date of such quote. Thereafter, the price for Goods sold hereunder shall be the Seller’s price in effect as of the date of shipment. All prices are F.O.B., the Seller’s distribution facility, unless otherwise stated.  If any price quotation includes delivery or freight charges, of any kind, the customer is liable for any amount that exceeds the quoted amount. If the actual delivery or freight charges are less than the quoted amount, the proceeds are deemed earned.

Prices also do not include any federal, state, or local taxes or other governmental charges upon or with respect to the sale, purchase, manufacture, delivery, storage, processing, use, or consumption of any of the Goods provided hereby. Prices are stated and payable in U.S. dollars.

Cancellation. Buyer may not suspend or cancel orders placed with Seller, except with Seller’s prior written consent and then only if Buyer reimburses Seller for all losses incurred due to such suspension or cancellation, including without limitation, all incidental and consequential damages and expenses arising therefrom. Direction from Buyer to suspend or cancel any order may be treated as repudiation, making Buyer immediately liable for loss, expense and other damages sustained.

Delivery.  Title to and risk of loss for the Goods shall pass to Buyer upon delivery of the Goods by Seller to the common carrier for delivery. If Buyer does not specify shipping instructions, Buyer hereby authorizes Seller to make shipping arrangements on Buyer’s behalf and Buyer shall be responsible for all costs and expenses associated therewith. All timeframes provided by Seller, whether verbally or in writing, are good faith estimates of the expected delivery date for the Goods. Seller shall use commercially reasonable efforts to fill Buyer’s orders within the time stated but in no event shall Seller be liable for any damages associated with Seller’s inability to meet any such timeframes or deadlines, including but not limited to incidental or consequential damages arising therefrom.

Inspection & Acceptance. Buyer shall inspect all Goods within five (5) days after receipt thereof. Buyer’s payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to inspect or reject the goods unless otherwise agreed. If Buyer rejects any merchandise, Buyer must first obtain a Returned Goods Authorization Number  (“RGAN”)  before returning any goods to Seller. Goods returned without a RGAN will be refused. Seller will not be responsible for any freight costs, damages to goods, or any other costs or liabilities pertaining to goods returned without a RGAN. Seller shall have the right to substitute a conforming tender. Buyer will be responsible for all freight costs to and from Buyer and repackaging costs, if any, if Buyer refuses to accept shipment. If Goods are returned in unsalable condition, Buyer shall be responsible for full value of the Goods. Buyer may not return any special order Goods. Any Goods returned hereunder shall be subject to a restocking fee equal to 35% of the invoice price.

Limited Warranty. Seller warrants to the original end-user that the Goods manufactured or provided by Seller under this Agreement shall be free of defects in material or workmanship for a period of twelve (12) months from the date of purchase, provided that the Goods are installed, used, and maintained in accordance with any instruction manual or technical guidelines provided by the Seller or supplied with the Goods, if applicable. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period. The original end-user must also obtain a RGAN from Seller prior to returning any Goods to Seller for warranty service under this paragraph. Seller will not accept any responsibility for Goods returned without a RGAN. The original end-user shall be responsible for all costs and expenses associated with returning the Goods to Seller for warranty service. In the event of a defect, Seller, at its sole option, shall repair or replace the defective Goods or refund to the original end-user the purchase price for such defective Goods. Goods are not eligible for replacement or return after a period of 30 days from date of receipt. The foregoing warranty is Seller’s sole obligation, and the original end-user’s exclusive remedy, with regard to any defective Goods. This limited warranty does not apply to: (a) die sets, tooling, and saw blades; (b) periodic or routine maintenance and setup, (c) repair or replacement of the Goods due to normal wear and tear, (d) defects or damage to the Goods resulting from misuse, abuse, neglect, or accidents, (f) defects or damage to the Goods resulting from improper or unauthorized alterations, modifications, or changes; and (f) any Goods that has not been installed and/or maintained in accordance with the instruction manual or technical guidelines provided by Seller.

EXCLUSION OF OTHER WARRANTIES. THE FOREGOING LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. ANY AND ALL OTHER EXPRESS, STATUTORY OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. NO WARRANTY IS MADE WHICH EXTENDS BEYOND THAT WHICH IS EXPRESSLY CONTAINED HEREIN.

LIMITATION OF LIABILITY. IN NO EVENT SHALL SELLER BE LIABLE TO BUYER OR ANY OTHER PARTY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR DOWN TIME) ARISING FROM OR IN MANNER CONNECTED WITH THE GOODS, ANY BREACH BY SELLER OR ITS AGENTS OF THIS AGREEMENT, OR ANY OTHER CAUSE WHATSOEVER, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. BUYER’S REMEDY WITH RESPECT TO ANY CLAIM ARISING UNDER THIS AGREEMENT IS STRICTLY LIMITED TO NO MORE THAN THE AMOUNT PAID BY THE BUYER FOR THE GOODS.

Force Majuere. Seller shall not be responsible for any delay in the delivery of, or failure to deliver, Goods due to causes beyond Seller’s reasonable control including, without limitation, acts of God, acts of war or terrorism, enemy actions, hostilities, strikes, labor difficulties, embargoes, non-delivery or late delivery of materials, parts and equipment or transportation delays not caused by the fault of Seller, delays caused by civil authorities, governmental regulations or orders, fire, lightening, natural disasters or any other cause beyond Seller's reasonable control. In the event of any such delay, performance will be postponed by such length of time as may be reasonably necessary to compensate for the delay.

Specifications. Seller may, at its option, make changes in the designs, specifications or components of the Goods to improve the safety of such Goods, or if in Seller’s judgment, such changes will be beneficial to their operation or use. Buyer may not make any changes in the specifications for the Goods unless Seller approves of such changes in writing, in which event Seller may impose additional charges to implement such changes.

Installation. If Buyer purchases any Goods that require installation, Buyer shall, at its expense, make all arrangements and connections necessary to install and operate the Goods. Buyer shall install the Goods in accordance with any Seller instructions and shall indemnify Seller against any and all damages, demands, suits, causes of action, claims and expenses (including actual attorneys’ fees and costs) arising directly or indirectly out of Buyer’s failure to properly install the Goods.

Work By Others; Safety Devices. Unless agreed to in writing by Seller, Seller has no responsibility for labor or work performed by Buyer or others, of any nature, relating to design, manufacture, fabrication, use, installation or provision of Goods. Buyer is solely responsible for furnishing, and requiring its employees and customers to use all safety devices, guards and safe operating procedures required by law and/or as set forth in manuals and instruction sheets furnished by Seller. Buyer is responsible for consulting all operators’ manuals, ANSI or comparable safety standards, OSHA regulations and other sources of safety standards and regulations applicable to the use and operation of the Goods.

Remedies. Each of the rights and remedies of Seller under this Agreement is cumulative and in addition to any other or further remedies provided under this Agreement or at law or equity.

Attorney’s Fees. In the event legal action is necessary to recover monies due from Buyer or to enforce any provision of this Agreement, Buyer shall be liable to Seller for all costs and expenses associated therewith, including Seller’s actual attorneys' fees and costs.

Governing Law/Venue. This Agreement shall be construed and governed under the laws of the State of Wisconsin, without application of conflict of law principles. Each party agrees that all actions or proceedings arising out of or in connection with this Agreement shall be commenced, tried, and litigated only in the state courts sitting in Marathon County, Wisconsin or the U.S. Federal Court for the Western District of Wisconsin. Each party waives any right it may have to assert the doctrine of “forum non conveniens” or to object to venue to the extent that any proceeding is brought in accordance with this section. Each party consents to and waives any objection to the exercise of personal jurisdiction over it by courts described in this section. EACH PARTY WAIVES TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW THE RIGHT TO A TRIAL BY JURY.

Summary of Return Policy.

  • 5 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
  • You must obtain a IRONWORKER LLC issued RGAN number PRIOR to returning any materials.
  • Returned materials must be received at IRONWORKER LLC in new condition and in original packaging.
  • Altered items are not eligible for return.
  • Buyer is responsible for all shipping charges.
  • A 35% re-stocking fee applies to all returns.

IRONWORKER LLC makes every effort to ensure that our posted specifications, images, pricing and product availability are as correct and timely as possible. We apologize for any discrepancies that may occur. IRONWORKER LLC reserves the right to make any and all changes deemed necessary in the course of business including but not limited to pricing, product specifications, quantities, and product availability.

For Customer Service & Technical Support: Please contact one of our knowledgeable Team Members at: 1-844-895-3316 or e-mail us at service@tommyindustrial.com
