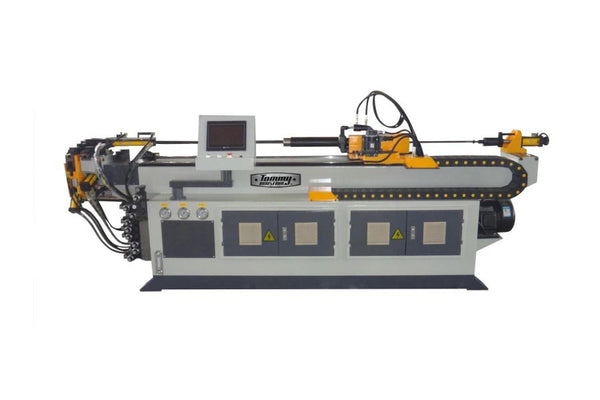

2" CNC Tube and Pipe Bender
TIDW50CNC-2A-1S
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
Tommy Industrial CNC Tube and Pipe Benders offer exceptional performance and are manufactured using high quality components resulting in a Pipe Bender the delivers exceptional performance. All Tommy Industrial Tube and Pipe Benders are fully customizable to individual customer needs and specifications. For more information, contact a Tommy Industrial sales representative today! Check out the speciation’s:
| Item | Imperial | Metric | |
|---|---|---|---|
| Max. diameter x thickness | Φ2x0.08 in | Φ50x2 mm | |
| Max. bending radius | R 13 in | R 330 mm | |
| Min. bending radius | R 0.8 in | R 20 mm | |
| Max. bending angle | 190° | 190° | |
| Max. length of feeding | 79 in | 2000 mm | |
| Feeding way | Directly | Directly | |
| Working speed | Bending speed | 80°/s | 80°/s |
| Turning speed | 180°/s | 180°/s | |
| Feeding speed | 31 in/s | 800 mm/s | |
| Working precision | Bending precision | ±0.3 | ±0.3 |
| Turning precision | ±0.1 | ±0.1 | |
| Feeding precision | ±0.1 | ±0.1 | |
| Data input mode | Y.B.C. | Y.B.C. | |
| Turning servo motor power | 0.6 hp | 0.45 kW | |
| Feeding servo motor power | 1.3 hp | 1 kW | |
| Max. pipe bender number | 32 pieces | 32 pieces | |
| Parts in store | 2000 pieces | 2000 pieces | |
| Hydraulic motor power | 10 hp | 7.5 kW | |
| Max. system pressure | 1740 psi | 12 mpa | |
| Size | 169x33x51 in | 4300×840×1300 mm | |
| Weight | 4850 lbs | 2200 kg | |
