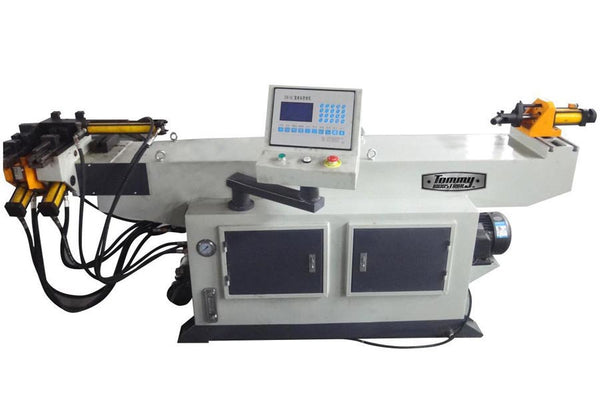

2.5" CNC Tube and Pipe Bender

TIDW63CNC-2A-1S

Tommy Industrial CNC Tube and Pipe Benders offer exceptional performance and are manufactured using high quality components resulting in a Pipe Bender the delivers exceptional performance.  All Tommy Industrial Tube and Pipe Benders are fully customizable to individual customer needs and specifications.  For more information, contact a Tommy Industrial sales representative today!  Check out the speciation’s:

Model TIDW63CNC-2A-1S Specifications
Item Imperial Metric
Max. diameter x thickness Φ2.5x0.14 in Φ63x3.5 mm
Max. bending radius R 14 in R 350 mm
Min. bending radius R 1.2 in R 30 mm
Max. bending angle 190° 190°
Max. length of feeding 94 in 2400 mm
Feeding way Directly Directly
Working speed Bending speed 40°/s 40°/s
Turning speed 160°/s 160°/s
Feeding speed 31 in/s 800 mm/s
Working precision Bending precision ±0.3 ±0.3
Turning precision ±0.1 ±0.1
Feeding precision ±0.1 ±0.1
Data input mode Y.B.C. Y.B.C.
Turning servo motor power 1.3 hp 1 kW
Feeding servo motor power 2.7 hp 2 kW
Max. pipe bender number 32 pieces 32 pieces
Parts in store 2000 pieces 2000 pieces
Hydraulic motor power 10 hp 7.5 kW
Max. system pressure 1740 psi 12 mpa
Size 189x47x51 in 4800×1200×1300 mm
Weight 8378 lbs 3800 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
