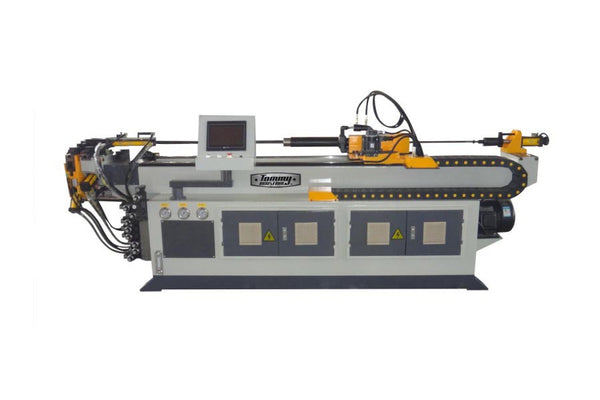

4.5" CNC Tube and Pipe Bender

TIDW114CNC-2A-1S

Tommy Industrial CNC Tube and Pipe Benders offer exceptional performance and are manufactured using high quality components resulting in a Pipe Bender the delivers exceptional performance.  All Tommy Industrial Tube and Pipe Benders are fully customizable to individual customer needs and specifications.  For more information, contact a Tommy Industrial sales representative today!  Check out the speciation’s:

Model TIDW114CNC-2A-1S Specifications
Item Imperial Metric
Max. diameter x thickness Φ4.5x0.6 in Φ114x15 mm
Max. bending radius R 26 in R 650 mm
Min. bending radius R 3.5 in R 90 mm
Max. bending angle 190° 190°
Max. length of feeding 177 in 4500 mm
Feeding way Directly Directly
Working speed Bending speed 30°/s 30°/s
Turning speed 120°/s 120°/s
Feeding speed 16 in/s 400 mm/s
Working precision Bending precision ±0.3 ±0.3
Turning precision ±0.1 ±0.1
Feeding precision ±0.1 ±0.1
Data input mode Y.B.C. Y.B.C.
Turning servo motor power 2.7 hp 2 kW
Feeding servo motor power 5.4 hp 4 kW
Max. pipe bender number 32 pieces 32 pieces
Parts in store 2000 pieces 2000 pieces
Hydraulic motor power 29.5 hp 22 kW
Max. system pressure 2031 psi 14 mpa
Size 315x68x59 in 8000×1700×1500 mm
Weight 19842 lbs 9000 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
