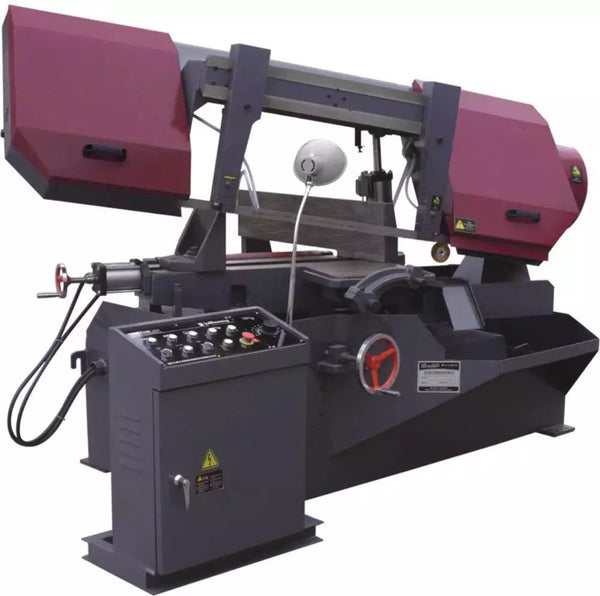

TOMMY INDUSTRIAL® Miter Band Saw Model TIS350R

TIS350R

For Heavy Duty Use!  This is the Tommy Industrial® Model TIS350R with Hydraulic Clamping and Automatic cutting!

The Tommy Industrial Mitering NC Band Saw line is includes 6 models.  All models are full automatic and allow for material to be cut at various angles.  This band saw line features a manual heavy duty clamp and standard LED work light.

The Tommy Industrial Mitering NC Band Saw line is most popular in high and low capacity fab shops and factories.  Some standard features include:

*Mitering Blade

*Heavy Duty cutting base

*NC cutting system

*LED work light

*Hydraulic clamping.

*3 Phase 220 Volt Power supply.



Model

S350R

Max. Cutting Diameter

90° Φ350mm ■:300*500

45° Φ350mm ■:340*350



mm

Angle

45°

Blade Speed

26/60/75

m/min

Blade Size

1.1*34*4700

mm

Cleaning  blade

Wire brush with flood coolant

Blade tensioning form

Maunal

Motor Output

3

kw

Hydraulic Pressure

1.1

kw

Coolant Pump

0.07

kw

Table height

750

mm

Working feeding

Manual

Work vice

Hydraulic

Machine weight

1600

KG

Machine Size(L*W*H)

2400*21000*1300KG

mm





Model TIS350R Specifications
Item Imperial Metric
Capacity Round Bar 90° Φ13.78in Φ350mm
Square Bar 90° 11.81x19.68in 300x500mm
Round Bar 45° Φ13.78in Φ350mm
Square Bar 45° 13.38x13.78in 340x350mm
