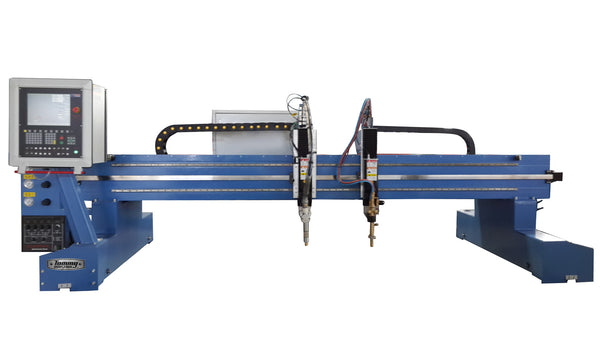

The Tommy Industrial Model TI-GCT1000 Gantry Plasma Cutting Table offers high quality precision cutting within a compact structure. The Gantry Plasma Cutting Table Series is fully customizable, with optional torch or dual plasma heads, increasing the machines ability to cut thicker metals.
The Tommy Industrial Model TI-GCT1000 Gantry Plasma Cutting Table is extremely popular in situations where manufacturers and fabricators need to cut parts out of material thickness from 0” up to 14” steel. This model also features an extremely solid and stable beam the produces accurate placement of the cutting tips. Some standard features include:
-Q345B welded square steel tube structure
-Rigid Cross Beam with excellent heat dissipation
-Fully customizable CNC system
-Fully customizable plasma power supply
-Compact customizable structure
Item | Imperial | Metric | |
---|---|---|---|
Working Area | Track Span | 118-354in | |
Track Length | According to customers requirement | ||
Travels | Transverse effective cutting | 87-323in | |
Longitudinal effective cutting | According to customers requirement | ||
Speed | Cutting Speed | 0-236in/min | |
Traveling Speed | 0-472in/min | ||
Cutting capacity | Plasma cutting thickness | Depending on plasma power supply | |
Flame cutting thickness | .024-14in |
