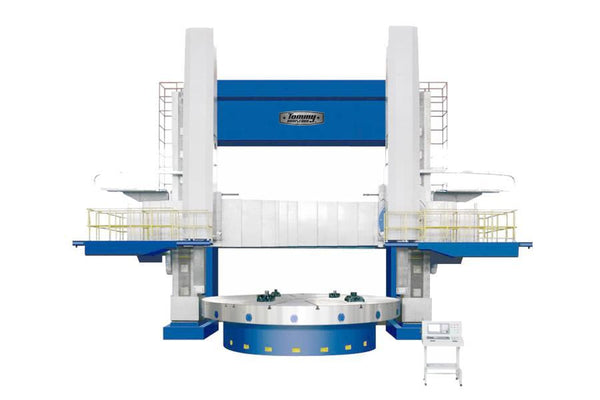

157" X 79"100 HP Double Column Vertical CNC Lathe

TICK5250

With the Tommy Industrial Vertical CNC Lathe Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these Vertical Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops.  Features Include

–Plastic coated guide ways are wearable

–Centralized lubricating oil supplying is convenient

–The spindle is to use model NN30(Grade D)bearing and able to turn precisely

–Gear case is to use 40 Cr gear wheel of gear grinding, which has high precision

–Castings of lathe are to use lost foam foundry(short for LFF)technique. Castings are wearable with good quality and dealt by aging

–Vertical lathe can make rough and accurate turning of cylindrical surface, conical surface, head face, grooving, severance,etc

Model TICK5250 Specifications
Item Imperial Metric
Working Area Turning diameter of tool post 197 in 5000 mm
Working table diameter 157 in 4000 mm
Workpiece height (max.) 79 in 2000 mm
Workpiece weight (max.) 66139 lbs 30000 kg
Tool post Max. cutting force of right tool post 35 KN 35 KN
Tool post Max. cutting force of left tool post 28 KN 28 KN
Horizontal travel of tool post 108 in 2750 mm
Vertical travel of tool post 39 in 1000 mm
Drive Capacity Motor rating main drive 100.6 Hp 75 kW
Measures and weights Overall dimensions (length x width x height) 299x217x253 in 7600x5500x6430 mm
Weight 125663 lbs 57000 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
