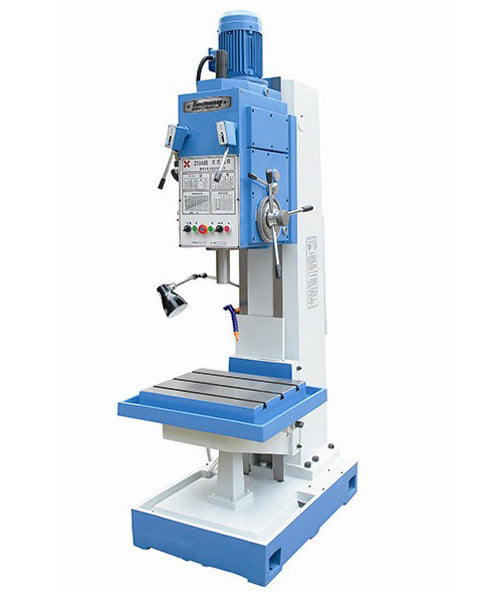

2"Variable Speed 1 Axis MT4 Drill Press

TIDP140

The Tommy Industrial Drill Press line up is heavy duty and built to last a long time.  The Tommy Industrial Drill Press line comes in two versions standard and with a milling table.  All Tommy Industrial Drill Presses allow for counter-sinking, spot-facing, drilling, and tapping.  Some features include:

Square column type

Universal drilling machine

For counter-sinking, spot-facing, drilling, tapping, boring, reaming, etc.

Function of tap-automatically reversing device

High efficiency, high accuracy

Easy maintenance

Easy operation

Model TIDP140 Specifications
Item Imperial Metric
Working area Drilling capacity 2 in 50 mm
Table set up area 22x19 in 560x480 mm
Quill stroke 10 in 250 mm
Spindle-to-table distance (max.) 30 in 750 mm
Table travel Travel X-axis - -
Travel Y-axis - -
Travel Z-axis 12 in 300 mm
Headstock Spindle speed (12) 31.5-1400 rpm (12) 31.5-1400 rpm
Spindle mount MT4 MT4
Spindle quill stroke 10 in 250 mm
Spindle box travel 8 in 200 mm
Drive capacity Motor rating main drive 4 hp 3 kW
Measures and weights Overall dimensions (length x width x height) 43x36x97 in 1090x905x2465 mm
Weight 2800 lbs 1250 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
