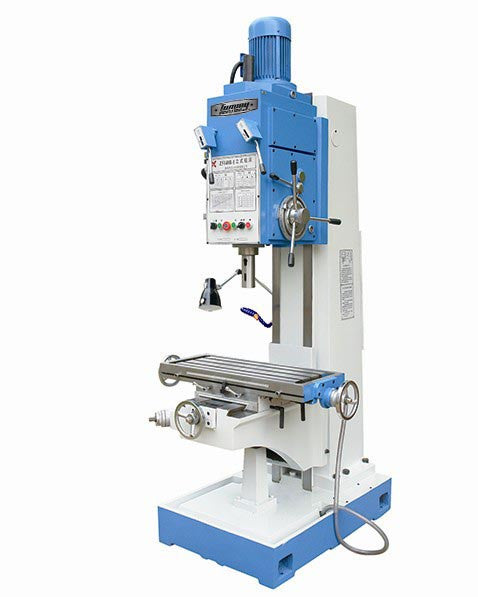

2"Variable Speed 3 Axis MT4 Drill Press


The Tommy Industrial Drill Press line up is heavy duty and built to last a long time.  The Tommy Industrial Drill Press line comes in two versions standard and with a milling table.  All Tommy Industrial Drill Presses allow for counter-sinking, spot-facing, drilling, and tapping.  Some features include:

Square column type

Universal drilling machine

For counter-sinking, spot-facing, drilling, tapping, boring, reaming, etc.

Function of tap-automatically reversing device

High efficiency, high accuracy

Easy maintenance

Easy operation

Model TIDP140MT Specifications
Item Imperial Metric
Working area Drilling capacity 2 in 50 mm
Table set up area 31x13 in 800x320 mm
Quill stroke 10 in 250 mm
Spindle-to-table distance (max.) 22 in 550 mm
Table travel Travel X-axis 17 in 440 mm
Travel Y-axis 12 in 300 mm
Travel Z-axis 12 in 300 mm
Headstock Spindle speed (12) 31.5-1400 rpm (12) 31.5-1400 rpm
Spindle mount MT4 MT4
Spindle quill stroke 10 in 250 mm
Spindle box travel 8 in 200 mm
Drive capacity Motor rating main drive 4 hp 3 kW
Measures and weights Overall dimensions (length x width x height) 51x47x97 in 1300x1200x2465 mm
Weight 3000 lbs 1350 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
