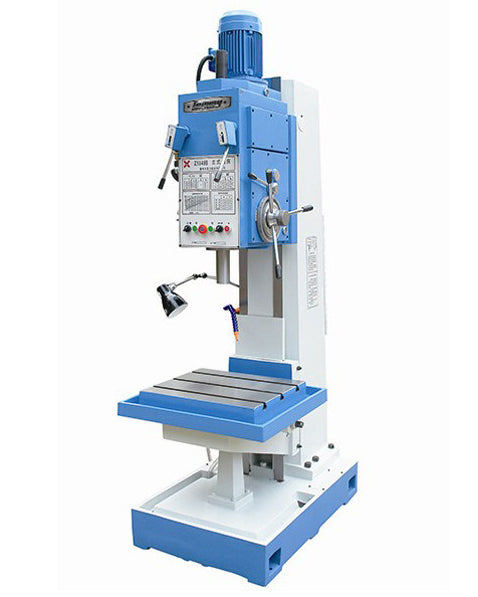

The Tommy Industrial Drill Press line up is heavy duty and built to last a long time. The Tommy Industrial Drill Press line comes in two versions standard and with a milling table. All Tommy Industrial Drill Presses allow for counter-sinking, spot-facing, drilling, and tapping. Some features include:
Square column type
Universal drilling machine
For counter-sinking, spot-facing, drilling, tapping, boring, reaming, etc.
Function of tap-automatically reversing device
High efficiency, high accuracy
Easy maintenance
Easy operationItem | Imperial | Metric | |
---|---|---|---|
Working area | Drilling capacity | 2 in | 50 mm |
Table set up area | 22x19 in | 560x480 mm | |
Quill stroke | 10 in | 250 mm | |
Spindle-to-table distance (max.) | 30 in | 750 mm | |
Table travel | Travel X-axis | - | - |
Travel Y-axis | - | - | |
Travel Z-axis | 12 in | 300 mm | |
Headstock | Spindle speed | (12) 31.5-1400 rpm | (12) 31.5-1400 rpm |
Spindle mount | MT5 | MT5 | |
Spindle quill stroke | 10 in | 250 mm | |
Spindle box travel | 8 in | 200 mm | |
Drive capacity | Motor rating main drive | 4 hp | 3 kW |
Measures and weights | Overall dimensions (length x width x height) | 43x36x97 in | 1090x905x2465 mm |
Weight | 2800 lbs | 1250 kg |
