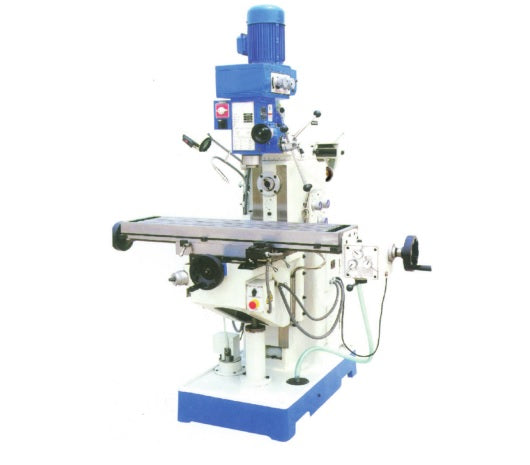

Drilling and Milling Machine ZX6350C

ZX6350C

Tommy Industrial® Drilling and Milling Machine Model: ZX6350C

  1. Features
  2. X and Y axis is automatic feed through gear box
  3. Spindle box is gear drive, quill can feed manually
  4. Ram is movable forward and backward, and swivel 180 degrees
  5. Coolant Recycling system
  6. LED work light
  7. Service tools and toolbox
  8. 3-axis Dro.
  9. 160 mm LockDown Milling Vise
    1. Technical Parameter

    Specification

    ZX6350C

    Spindle taper

    R8

    Spindle quill travel

    120mm (Vertical)

    Distance from vertical spindle to worktable

    80-460mm

    Distance horizontal spindle to table

    0-380mm

    Distance spindle to column

    200-500mm

    Distance from horizontal spindle axis to arm bottom

    175mm

    Spindle speed range (r.p.m)

    115-1750(Vertical) (8 Steps)

    40-1300(Horizontal) (16 Steps)

    Table size

    1200*280mm

    Max. Travel of table (X/Y/Z)

    700/260/400mm

    Feeding range of longitudinal, cross travel (mm/min)

    24-720 mm/min (8 Grade)

    Spindle travel

    120mm

    Main motor power

    0.85/1.5kw(Vertical)

    2.2kw(Horizontal)

    Feed Motor

    0.37kw

    Coolant Motor

    0.4kw

    Overall size

    1220*1120*2095mm

    N.W/G.W

    1200/1350



    1. Standard Accessories

    NO.

    Specification

    Quantity

    1

    Drill chuck φ16

    1

    2

    Mill chuck

    1

    3

    Reduction sleeve

    1

    4

    Standard Machine Vice 160mm

    1

    5

    Wrench S21-24

    1

    6

    Inner hexagon spanner 5

    1

    7

    Draw bar

    1

    8

    Wedge shifter

    1

    9

    Spindle arbor

    1

    10

    Horizontal milling hilt

    2

    11

    Operation Manual

    1

    12

    Packing list

    1

Model ZX6350C Specifications
Item Imperial Metric
