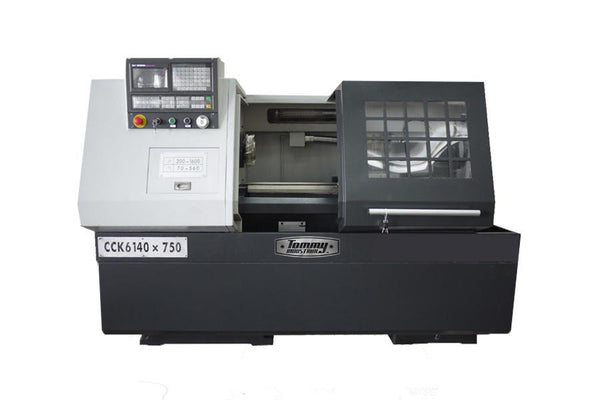

With the Tommy Industrial Flat Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Flat Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include:
–Featured with flat bed, wide hard guide way and fulled enclosed safe guard
–Integral bed feet and super sonic hardened guide way
–2 kinds of spindle box equipment for choice
–There are adjusting row tools for choice
Center and center sleeve
Oil gunOperation manual
|Working Area||Workpiece length (max.)||30 in/ 39 in/ 59 in||750 mm/ 1000 mm/ 1500 mm|
|Turning length (max.)||26 in/ 35 in/ 55 in||650 mm/ 900 mm/ 1400 mm|
|Turning diameter over bed||14 in||360 mm|
|Turning diameter over support||8 in||210 mm|
|Travels||Travel X-axis||9 in||240 mm|
|Travel Z-axis||26 in/ 35 in/ 55 in||650 mm/ 900 mm/ 1400 mm|
|Headstock||Spindle speed||(stepless) 300-3000 r/min||(stepless) 300-3000 r/min|
|Spindle bore||2 in||52 mm|
|Rapid Feed||Rapid feed X-axis||236 in/min||6000 mm/min|
|Rapid feed Z-axis||394 in/min||10000 mm/min|
|Tool head||Number of tool stations||4 positions||4 positions|
|Tailstock||Tailstock taper||MT 5||MT 5|
|Tailstock quill diameter||2.5 in||65 mm|
|Tailstock quill stroke||5 in||120 mm|
|Drive Capacity||Motor rating main drive||(Stepless) 7.4 Hp||(Stepless) 5.5 kW|
|Measures and weights||Overall dimensions (length x width x height)||96x53x63 in||2450x1350x1600 mm|
|106x53x63 in||2700x1350x1600 mm|
|126x53x63 in||3200x1350x1600 mm|
|Weight||4630 lbs/ 5071 lbs/ 5512 lbs||2100 kg/ 2300 kg/ 2500 kg|
