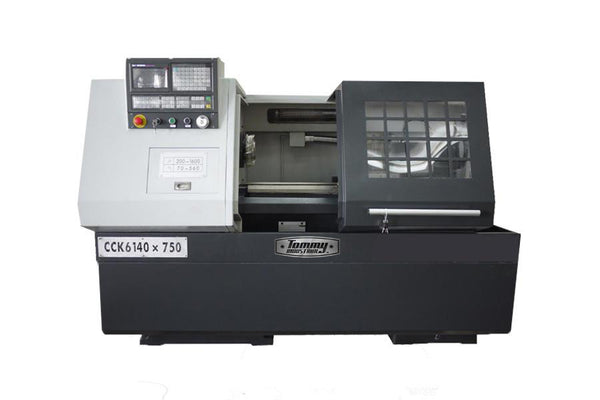

59" X 22" OVER BED Flat Bed CNC Lathe
TICK6150
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
With the Tommy Industrial Flat Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Flat Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include
–Featured with flat bed, wide hard guide way and fulled enclosed safe guard
–Integral bed feet and super sonic hardened guide way
–2 kinds of spindle box equipment for choice
–There are adjusting row tools for choice
Three-jaw chuck
Center and center sleeve
Wrenches
Oil gun
Operation manual| Item | Imperial | Metric | |
|---|---|---|---|
| Working Area | Workpiece length (max.) | 39 in/ 59 in | 1000 mm/ 1500 mm |
| Turning length (max.) | 36 in/ 56 in | 910 mm/ 1410 mm | |
| Turning diameter over bed | 22 in | 550 mm | |
| Turning diameter over support | 12 in | 300 mm | |
| Travels | Travel X-axis | 13 in | 340 mm |
| Travel Z-axis | 36 in/ 56 in | 910 mm/ 1410 mm | |
| Headstock | Spindle speed | (stepless) 300-3000 r/min | (stepless) 300-3000 r/min |
| Spindle mount | A2-8 | A2-8 | |
| Spindle bore | 3 in | 80 mm | |
| Rapid Feed | Rapid feed X-axis | 315 in/min | 8000 mm/min |
| Rapid feed Z-axis | 472 in/min | 12000 mm/min | |
| Tool head | Number of tool stations | 4 positions | 4 positions |
| Tailstock | Tailstock taper | MT 6 | MT 6 |
| Tailstock quill diameter | 3.5 in | 90 mm | |
| Tailstock quill stroke | 6 in | 150 mm | |
| Drive Capacity | Motor rating main drive | (stepless) 10 Hp or 14.8 Hp | (Stepless) 7.5 kW or 11 kW |
| Measures and weights | Overall dimensions (length x width x height) | 108x57x71 in | 2740x1450x1800 mm |
| 128x57x71 in | 3240x1450x1800 mm | ||
| Weight | 7055 lbs/ 7716 lbs | 3200 kg/ 3500 kg | |
