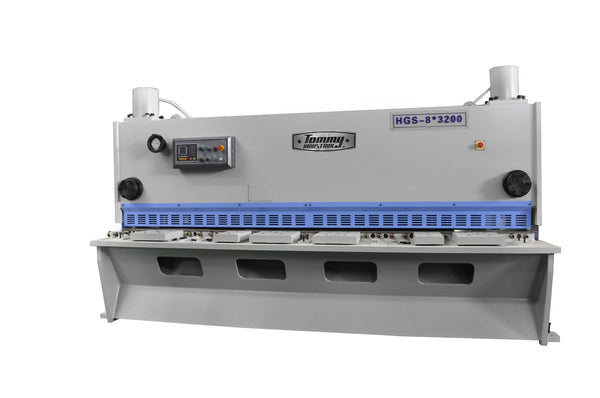

19' X 7/16" Guillotine Sheet Metal Shears

SH19-7/16

The Tommy Industrial Guillotine Metal Shear Line features 27 models.  All models include hydraulic drive highly accurate vertical shearing action, stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SH19-7/16 Specifications
Item Imperial Metric
Plate thickness (max.) 0.47in 12mm
Working length 236.22in 6000mm
Rear stop 29.53in 750mm
Cutting angle
Throat depth 3.94in 100mm
Strokes per minute 5 times per minute
Hold-down
Drive capacity Motor rating main drive 29.50hp 22kW
Measures and weights Overall dimensions (length x width x height) 267.72x78.74x102.36in 6800x2000x2600mm

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
