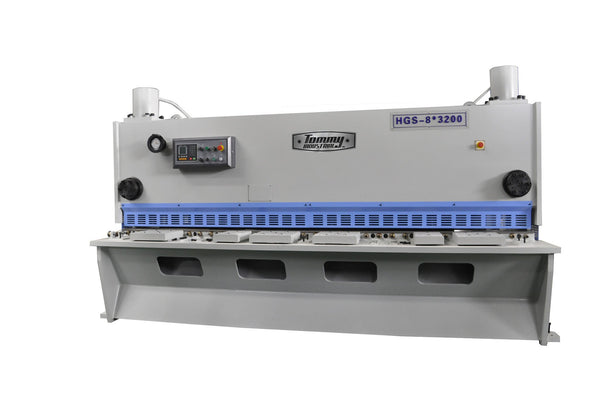

13' X 1-3/16" Guillotine Sheet Metal Shears


The Tommy Industrial Guillotine Metal Shear Line features 27 models.  All models include hydraulic drive highly accurate vertical shearing action, stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SH13-1-3/16 Specifications
Item Imperial Metric
Plate thickness (max.) 1.18in 30mm
Working length 157.48in 4000mm
Rear stop 29.53in 750mm
Cutting angle 3.5°
Throat depth 4.72in 120mm
Strokes per minute 5 times per minute
Drive capacity Motor rating main drive 60.32hp 45kW
Measures and weights Overall dimensions (length x width x height) 200.79x94.49x118.11in 5100x2400x3000mm

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
