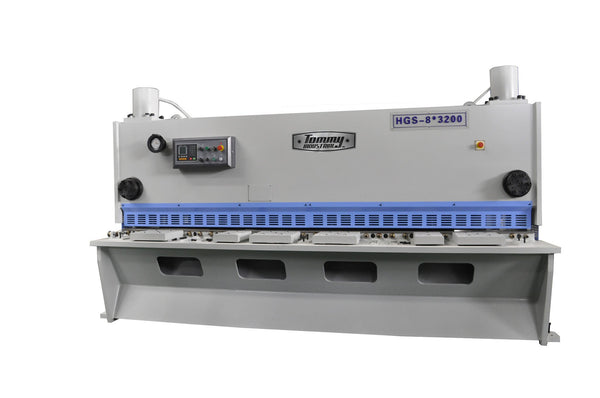

13' X 3/4" Guillotine Sheet Metal Shears

SH13-3/4

The Tommy Industrial Guillotine Metal Shear Line features 27 models.  All models include hydraulic drive highly accurate vertical shearing action, stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SH13-3/4 Specifications
Item Imperial Metric
Plate thickness (max.) 0.79in 20mm
Working length 157.48in 4000mm
Rear stop 29.53in 750mm
Cutting angle 2.5°
Throat depth 3.94in 100mm
Strokes per minute 6 times per minute
Hold-down
Drive capacity Motor rating main drive 40.21hp 30kW
Measures and weights Overall dimensions (length x width x height) 192.91x86.61x102.36in 4900x2200x2600mm
