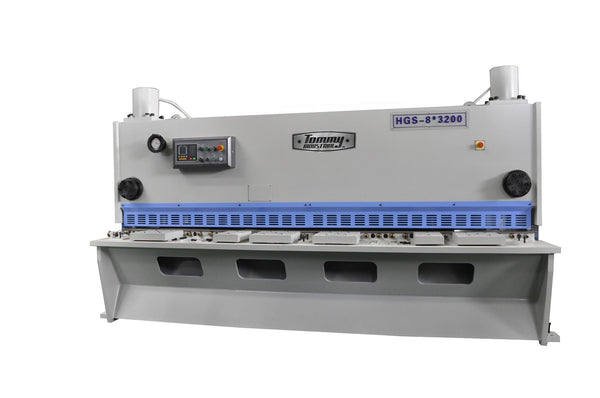

19' X 3/4" Guillotine Sheet Metal Shears


The Tommy Industrial Guillotine Metal Shear Line features 27 models.  All models include hydraulic drive highly accurate vertical shearing action, stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SH19-3/4 Specifications
Item Imperial Metric
Plate thickness (max.) 0.79in 20mm
Working length 236.22in 6000mm
Rear stop 29.53in 750mm
Cutting angle 2.5°
Throat depth 3.94in 100mm
Strokes per minute 4 times per minute
Drive capacity Motor rating main drive 49.60hp 37kW
Measures and weights Overall dimensions (length x width x height) 287.40x98.43x133.86in 7300x2500x3400mm

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
