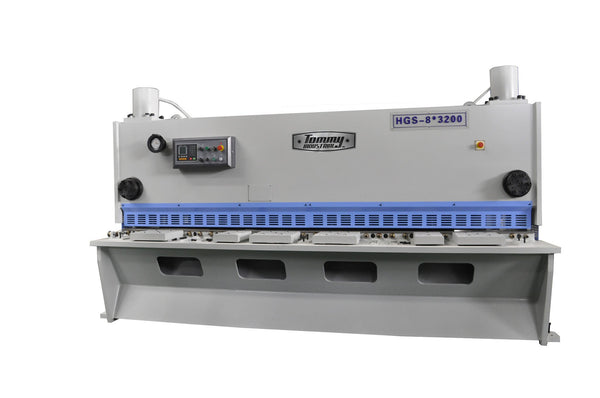

10' X 7/16" Guillotine Sheet Metal Shears

SH10-7/16

The Tommy Industrial Guillotine Metal Shear Line features 27 models.  All models include hydraulic drive highly accurate vertical shearing action, stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SH10-7/16 Specifications
Item Imperial Metric
Plate thickness (max.) 0.47in 12mm
Working length 125.98in 3200mm
Rear stop 29.53in 750mm
Cutting angle
Throat depth 3.94in 100mm
Strokes per minute 10 times per minute
Hold-down
Drive capacity Motor rating main drive 20.11hp 15kW
Measures and weights Overall dimensions (length x width x height) 153.54x70.87x88.58in 3900x1800x2250mm

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
