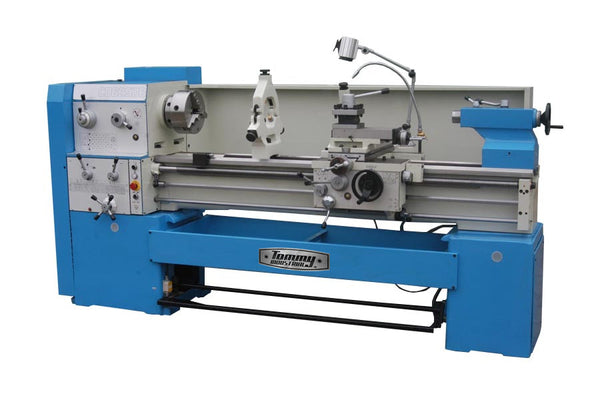

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes:
–Big spindle bore 82mm
–High speed dynamically balanced spindle
–Solid cast iron structure
–Stress relieved bed and induction hardened guide ways
–Precision ground bed slideways
–New-type gear box and high precision spindle structure
–Totally-enclosed feed box making a wide range of thread machining possible
–The lead screw is protected with a metal guard
|Working Area||Workpiece length (max.)||29 in/ 39 in/ 59 in/ 79 in/ 118 in||750 mm/ 1000 mm/ 1500 mm/ 2000 mm/ 3000 mm|
|Turning diameter over bed||26 in||660 mm|
|Turning diameter over support||17 in||440mm|
|Turning diameter over gap bridge||34 in||870 mm|
|Gap bridge length||11 in||280 mm|
|Bed width||15 in||394 mm|
|Travels||Travel X-axis||14 in||355 mm|
|Headstock||Spindle speeds||(16) 26-1700 rpm||(16) 26-1700 rpm|
|Spindle bore||4 in||105 mm|
|Spindle taper||4 in/ 1: 20||110 mm/ 1: 20|
|Feed||Feed X-axis||0.00087-0.029 in/rev||0.022-0.74 mm/rev|
|Feed Z-axis||0.0017-0.058 in/rev||0.044-1.48 mm/rev|
|Tailstock||Tailstock quill diameter||3 in||75 mm|
|Tailstock taper||MT No.5||MT No.5|
|Tailstock quill stroke||6 in||150 mm|
|Tapping||Tapping, metric||(73) 0.35-80 mm||(73) 0.35-80 mm|
|Tapping, diametric||(47) 7/8-160 D.P||(47) 7/8-160 D.P|
|Tapping, module||(45) 0.2-40 MOD||(45) 0.2-40 MOD|
|Drive capacity||Motor rating main drive||10.1 Hp||7.5 kW|
|Measures and weights||Overall dimensions (length x width x height)||92x48x60 in||2350x1226x1520 mm|
|102x48x60 in||2600x1226x1520 mm|
|122x48x60 in||3100x1226x1520 mm|
|142x48x60 in||3600x1226x1520 mm|
|157x48x60 in||4000x1226x1520 mm|
|Weight||4784 lbs/ 4897 lbs/ 5004 lbs/ 5247 lbs/ 7055 lbs||2170 kg/ 2220 kg/ 2270 kg/ 2380 kg/ 3200kg|
