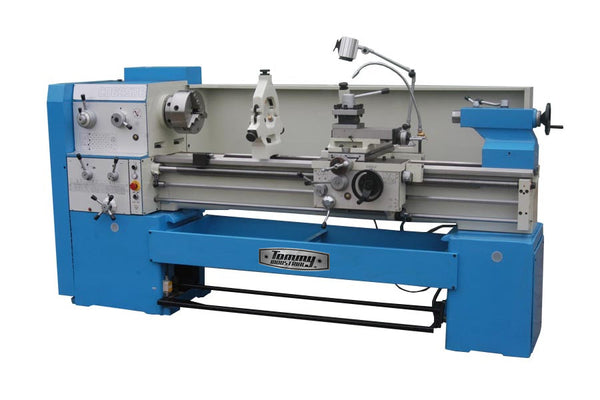

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes:
–Big spindle bore up to 105mm and 130mm
–Multiple center distance to meet user’s requirement
–Large plane, good looking
–Compact structure and stable performance
Level blockMachine tool manual
|Working Area||Workpiece length (max.)||29 in/ 39 in/ 59 in/ 79 in / 118 in/ 177 in/ 236 in||750 mm/1000 mm/1500 mm/2000 mm/3000 mm/4500 mm/6000 mm|
|Turning diameter over bed||37 in||7930 mm|
|Turning diameter over support||26 in||650mm|
|Turning diameter over gap bridge||43 in||1100 mm|
|Gap bridge length||12 in||300 mm|
|Bed width||22 in||550 mm|
|Headstock||Spindle speeds||(18) 10-800 rpm||(18) 10-800 rpm|
|Spindle bore||4 in/ 5 in||105 mm/ 130mm|
|Spindle mount||C11 or D11||C11 or D11|
|Tailstock||Tailstock quill diameter||3.5 in||90 mm|
|Tailstock quill stroke||10 in||260 mm|
|Tapping||Tapping, metric||(53) 1-240 mm||(53) 1-240 mm|
|Tapping, diametric||(47) 60-0.5 tpi||(47) 60-0.5 tpi|
|Tapping, module||(46) 0.0098-2.4 in||(46) 0.25-60 mm|
|Drive capacity||Motor rating main drive||14.8 Hp||11 kW|
|Measures and weights||Overall dimensions (length x width x height)||136x55x79 in||3460x1400x2000 mm|
|141x55x79 in||3590x1400x2000 mm|
|149x55x79 in||3795x1400x2000 mm|
|170x55x79 in||4330x1400x2000 mm|
|209x55x79 in||5310x1400x2000 mm|
|268x55x79 in||6810x1400x2000 mm|
|327x55x79 in||8310x1400x2000 mm|
|Weight||10803 lbs/ 11684 lbs/ 12787 lbs/ 13889 lbs/ 15212 lbs/ 17417 lbs/ 19180 lbs||4900 kg/ 5300 kg/ 5800 kg/ 6300 kg/ 6900 kg/ 7900 kg/ 8700 kg|
