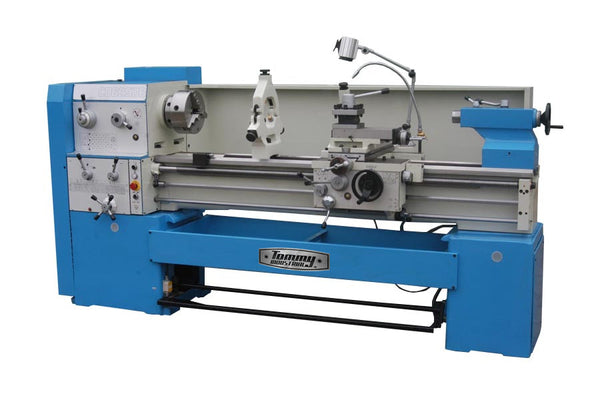

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes
–Big spindle bore up to 105mm and 130mm
–Multiple center distance to meet user’s requirement
–Large plane, good looking
–Compact structure and stable performance
Level blockMachine tool manual
|Working Area||Workpiece length (max.)||59 in/ 79 in/ 118 in/ 177 in/ 236 in||1500 mm/ 2000 mm/ 3000 mm/4500 mm/ 6000 mm|
|Turning diameter over bed||72 in||1830 mm|
|Turning diameter over support||57 in||1440 mm|
|Turning diameter over gap bridge||79 in||2000 mm|
|Gap bridge length||15 in||380 mm|
|Bed width||24 in||610 mm|
|Headstock||Spindle speeds||(18) 10-800 rpm||(18) 7-576 rpm|
|Spindle bore||4 in/ 5 in||105 mm/ 130mm|
|Spindle mount||C11 or D11||C11 or D11|
|Feed||Feed X-axis||0.0016 - 0.38 in/R||0.04 - 9.6 mm/R|
|Feed Z-axis||0.0028 - 0.66 in/R||0.07 - 16.72 mm/R|
|Tailstock||Tailstock quill diameter||5 in||120 mm|
|Tailstock quill stroke||11 in||270 mm|
|Tapping||Tapping, metric||(53) 1-240 mm||(53) 1-240 mm|
|Tapping, diametric||(47) 60-1/2 tpi||(47) 60-1/2 tpi|
|Tapping, module||(42) 0.0098-2.36 in||(42) 0.25-60 mm|
|Drive capacity||Motor rating main drive||14.8 Hp||11 kW|
|Measures and weights||Overall dimensions (length x width x height)||151x83x90 in||3840x2200x2380 mm|
|171x83x90 in||4340x2200x2380 mm|
|204x83x90 in||5170x2200x2380 mm|
|263x83x90 in||6670x2200x2380 mm|
|323x83x90 in||8200x2200x2380 mm|
|Weight||18960 lbs/ 19842 lbs/ 21385 lbs/ 23369 lbs/ 24692 lbs||8600 kg/ 9000 kg/ 9700 kg/10600 kg/ 11200 kg|
