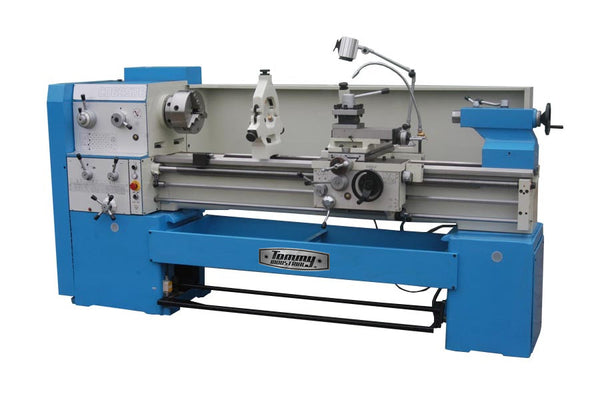

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes
–Heavy duty lathe machine
–The Max.weight of workpiece can up to 8000kg
–The whole bed with high rigidity
–Used for processing high speed steel and hard alloy cutter
–High efficiency, easy operation
Light duty four-jaw chuck
Spindle center sleeve
Socket head wrench
Adjusting bolt of shim plate
Double-headed solid wrenchOperation manual
|Working Area||Workpiece length (max.)||59 in/ 79 in/ 118 in/ 157 in/ 197 in/ 236 in/ 315 in/ 394 in/ 472 in||1500 mm/ 2000 mm/ 3000 mm/4000 mm/ 5000 mm/ 6000 mm/8000 mm/ 10000 mm/ 12000 mm|
|Turning diameter over bed||55 in||1400 mm|
|Turning diameter over support||39 in||1000mm|
|Work piece weight (max.)||17637 lbs||8000 kg|
|Bed width||31 in||780 mm|
|Headstock||Spindle speeds (right)||(21) 0.124 - 12.4 rpm||(21) 3.15-315 rpm|
|Spindle speeds (left)||(12) 0.098 - 9.84 rpm||(12) 2.5-250 rpm|
|Spindle bore||5 in||130mm|
|Rapid feed||Rapid feed X-axis||67 in/min||1700 mm/min|
|Rapid feed Z-axis||134 in/min||3400 mm/min|
|Feed||Feed X-axis||(56) 0.0020-0.24 in/rev||(56) 0.05-6 mm/rev|
|Feed Z-axis||(56) 0.0039-0.47 in/rev||(56) 0.1-12 mm/rev|
|Tailstock||Tailstock quill diameter||6 in||160 mm|
|Tailstock quill taper||Metric 80||Metric 80|
|Tailstock quill stroke||12 in||300 mm|
|Tapping||Tapping, metric||(44) 1-120 mm||(44) 1-120 mm|
|Tapping, diametric||(38) 1/2-56 D.P||(38) 1/2-56 D.P|
|Tapping, module||(45) 0.02 - 2.36 in||(45) 0.5-60 mm|
|Drive capacity||Motor rating main drive||29.5 Hp||22 kW|
