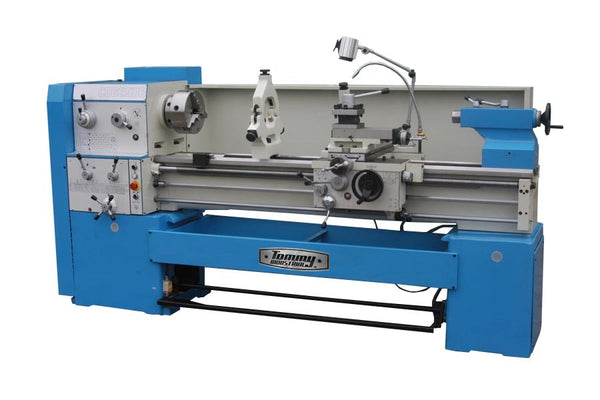

58" OVER BED 40 HP Heavy Duty Lathe

58" OVER BED 40 HP Heavy Duty Lathe

Sku: TICW62148

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise.  This models includes

–Max.workpiece weight is 10000kg

–Wide bed, ground and hardened

–Big spindle bore is 130mm

–Different center distance to meet user’s requirement

–The whole bed with high rigidity

–Used for processing high speed steel and hard alloy cutter

–High efficiency, easy operation

Heavy duty four-jaw chuck

Steady rest

Spindle center

Center sleeve

Electric tailstock

Tailstock center and nut

Adjusting bolt of shim plate

Anchor bolt

Gear

Socket head wrench

Oil gun

Tool post spanner

Operation manual
Model TICW62148 Specifications
Item Imperial Metric
Working Area Workpiece length (max.) 79 in/ 118 in/ 157 in/ 197 in/ 236 in/ 315 in/ 394 in/ 472 in 2000 mm/ 3000 mm/ 4000 mm/ 5000 mm/ 6000 mm/ 8000 mm/ 10000 mm/ 12000 mm
Turning diameter over bed 58 in 1480 mm
Turning diameter over support 39 in 1000mm
Work piece weight (max.) 22046 lbs 10000 kg
Bed width 43 in 1100 mm
Headstock Spindle speeds (right) (21) 0.12 - 12 rpm (21) 3.15-315 rpm
Spindle speeds (left) (12) 0.079 - 7.9 rpm (12) 2-200 rpm
Spindle bore 5 in 130mm
Rapid feed Rapid feed X-axis 67 in/min 1700 mm/min
Rapid feed Z-axis 134 in/min 3400 mm/min
Feed Feed X-axis (56) 0.0020-0.24 in/rev (56) 0.05-6 mm/rev
Feed Z-axis (56) 0.0039-0.47 in/rev (56) 0.1-12 mm/rev
Tailstock Tailstock quill diameter 10 in 260 mm
Tailstock quill taper Metric 80 Metric 80
Tailstock quill stroke 12 in 300 mm
Tapping Tapping, metric (44) 1-120 mm (44) 1-120 mm
Tapping, diametric (38) 1/2-56 D.P (38) 1/2-56 D.P
Tapping, module (45) 0.02 - 2.36 in (45) 0.5-60 mm
Drive capacity Motor rating main drive 40 Hp 30 kW
