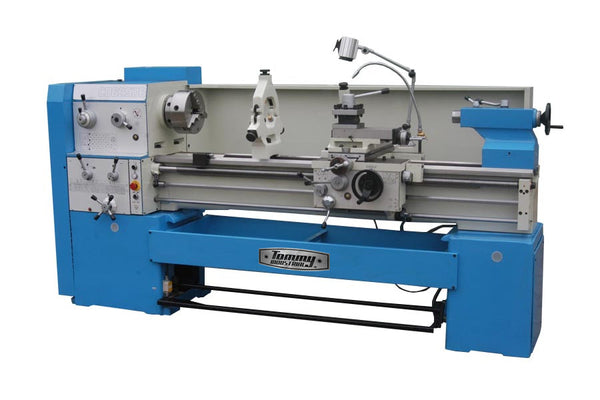

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes
–Max.workpiece weight is 10000kg
–Wide bed, ground and hardened
–Big spindle bore is 130mm
–Different center distance to meet user’s requirement
–The whole bed with high rigidity
–Used for processing high speed steel and hard alloy cutter
–High efficiency, easy operation
Heavy duty four-jaw chuck
Tailstock center and nut
Adjusting bolt of shim plate
Socket head wrench
Tool post spannerOperation manual
|Working Area||Workpiece length (max.)||79 in/ 118 in/ 157 in/ 197 in/ 236 in/ 315 in/ 394 in/ 472 in||2000 mm/ 3000 mm/ 4000 mm/ 5000 mm/ 6000 mm/ 8000 mm/ 10000 mm/ 12000 mm|
|Turning diameter over bed||66 in||1680 mm|
|Turning diameter over support||47 in||1200mm|
|Work piece weight (max.)||22046 lbs||10000 kg|
|Bed width||43 in||1100 mm|
|Headstock||Spindle speeds (right)||(21) 0.12 - 12 rpm||(21) 3.15-315 rpm|
|Spindle speeds (left)||(12) 0.079 - 7.9 rpm||(12) 2-200 rpm|
|Spindle bore||5 in||130mm|
|Rapid feed||Rapid feed X-axis||67 in/min||1700 mm/min|
|Rapid feed Z-axis||134 in/min||3400 mm/min|
|Feed||Feed X-axis||(56) 0.0020-0.24 in/rev||(56) 0.05-6 mm/rev|
|Feed Z-axis||(56) 0.0039-0.47 in/rev||(56) 0.1-12 mm/rev|
|Tailstock||Tailstock quill diameter||10 in||260 mm|
|Tailstock quill taper||Metric 80||Metric 80|
|Tailstock quill stroke||12 in||300 mm|
|Tapping||Tapping, metric||(44) 1-120 mm||(44) 1-120 mm|
|Tapping, diametric||(38) 1/2-56 D.P||(38) 1/2-56 D.P|
|Tapping, module||(45) 0.02 - 2.36 in||(45) 0.5-60 mm|
|Drive capacity||Motor rating main drive||40 Hp||30 kW|
