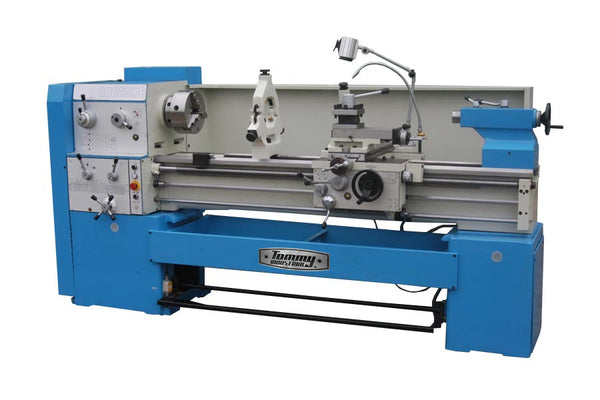

Tommy Industrial Horizontal Lathes are respected in the industry, they are heavy duty and precise. This models includes:
Big spindle bore Ø65mm
Super-audio frequency hardened (>HB400)
Feed rod and leadscrew interlocked
CE-conformity; electromagnetic brake can be amounted
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Main spindle supported at 2 points with precision taper roller bearings
Longitudinal automatic trip
center and center sleeve
oil gunOperation manual
|Working Area||Workpiece length (max.)||39 in/ 59 in/ 79 in||1000 mm/ 1500 mm/ 2000 mm|
|Turning diameter over bed||20 in||500 mm|
|Turning diameter over support||13 in||325mm|
|Turning diameter over gap bridge||25 in||630 mm|
|Gap bridge length||10 in||260 mm|
|Bed width||13 in||330 mm|
|Headstock||Spindle speeds||(15) 22-1800 rpm||(15) 22-1800 rpm|
|Spindle bore||2.6 in||65 mm|
|Spindle mount||ISO-C6 or ISO-D6||ISO-C6 or ISO-D6|
|Spindle taper||Metric 70 mm||Metric 70 mm|
|Feed||Feed X-axis||0.0014-0.079 in/rev||(66) 0.036-2.019 mm/rev|
|Feed Z-axis||(66) 0.0028-0.159 in/rev||(66) 0.072-4.038 mm/rev|
|Tailstock||Tailstock quill diameter||2.6 in||65 mm|
|Tailstock taper||Morse No.5||Morse No.5|
|Tailstock quill stroke||4.7 in||120 mm|
|Tapping||Tapping, metric||(66) 0.5-28 mm||(66) 0.5-28 mm|
|Tapping, diametric||(33) 8-56 D.P||(33) 8-56 D.P|
|Tapping, module||33) 0.020-0.138 in||(33) 0.5-3.5 mm|
|Drive capacity||Motor rating main drive||6.0 Hp or 7.4 Hp||4.5 kW or 5.5 kW|
|Measures and weights||Overall dimensions (length x width x height)||95x45x71 in||2420x1150x1800 mm|
|115x45x71 in||2920x1150x1800 mm|
|Weight||3527 lbs/ 4034 lbs/ 4564 lbs||1600 kg/ 1830 kg/ 2070 kg|
