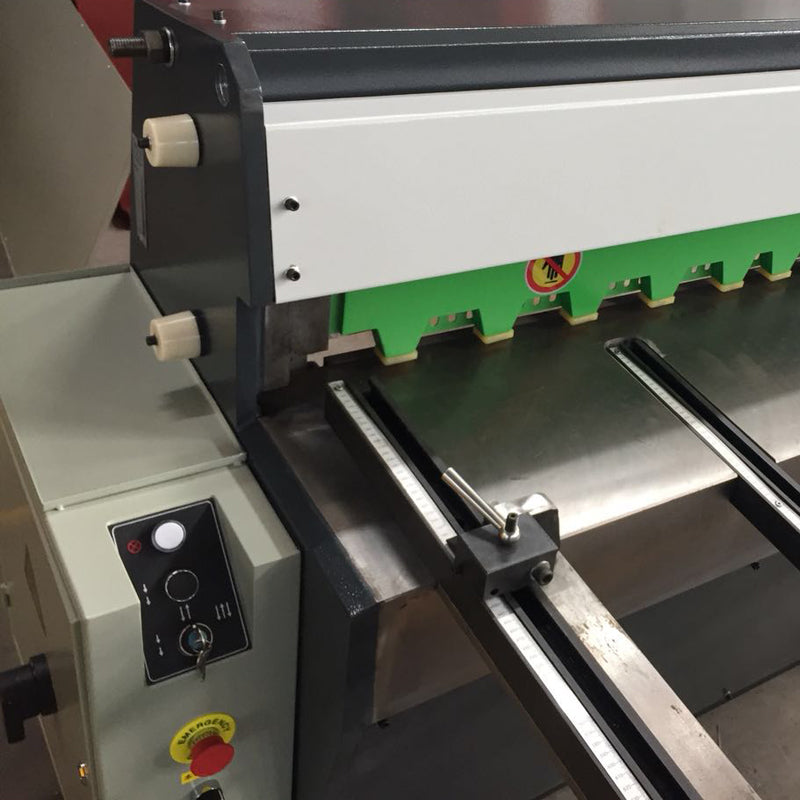

Heavy-Duty Metal Shear QH-3.5 X 1300

QH-3.5 X 1300



  1. Features
  2. This machine is different from the traditional driving method of mechanical shears, it is one of the most advanced mechanical shearers and enjoys good reputation both at home and aboard.
  3. This machine is of simple construction, nice design, sensitive and reliable control and easy maintenance, low energy consumption.
  4. A brake motor driving through a shaft mouthed speed reduction unit and controlled by a selective foot switch for single or continuous strokes provides quiet instantaneous connection.
  5. The low cutting angle and inclined shearing direction reduces bowing and twist to a minimum, blade clearance is easily set by a manually operated ”Quickset” device, it is an ideal true-cut machining equipment of sheet metal and nonferrous sheet metal.
  6. It's widely used in motor, electrical, automobile industries and all shops of other industries   where sheet metal cutting required.
    1. Technical Parameter



    NO.

    SPECIFICATION

    QH-3.5X1300

    1

    Shearing Thickness

    3.5mm

    2

    Shearing Width

    1300mm

    3

    Shearing Angle

    1°20'

    4

    Number of Stroke

    47n/min

    5

    Max. Number of Cuttings Per Minute

    10n/min

    6

    Front-gauge Range

    900mm

    7

    Back-gauge Range

    0-550mm

    8

    Height of Table

    800mm

    9

    Motor

    Type

    YEJ132M-4

    Output

    7.5Kw

    Speed

    1430r/min

    10

    Overall

    Dimensions

    Length

    1800MM

    Width

    1600MM

    Height

    1580MM

    11

    Net Weight

    1340kg

Model QH-3.5 X 1300 Specifications
Item Imperial Metric
