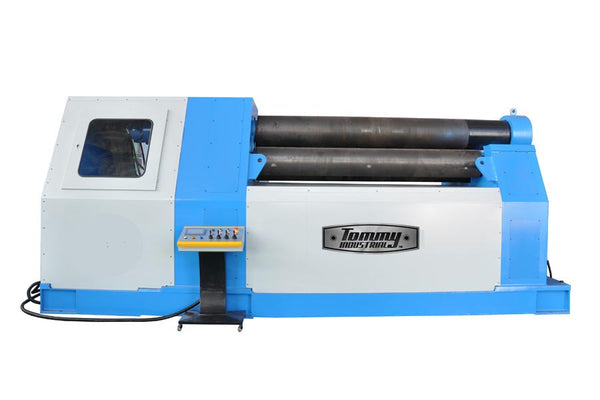

Hydraulic Plate Roll 6' X 1-7/8"

HPR6-1-7/8

Tommy Industrial offers 38 models of Hydraulic Plate Roll Benders, each with 4 Rolls.  The Tommy Industrial Plate Roll Bender line is heavy duty and recognized around the World for dependability and accuracy.   The Tommy Industrial Roll bender is a staple is any fabrication shop that has a need to roll plate.  For more information contact a Tommy Industrial Sales Rep today!

Model HPR6-1-7/8 Specifications
Item Imperial Metric
Max. bending thickness 2 in 50 mm
Pre-bending thickness 1.6 in 40 mm
Max. working length of rolls 80.7 in 2050 mm
Yield limit 245 Mpa
Diameter of top shaft 21.7 in 550 mm
Diameter of bottom shaft 20.1 in 510 mm
Diameter of side shaft 16.5 in 420 mm
Main motor 60.3 hp 45 kW

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
