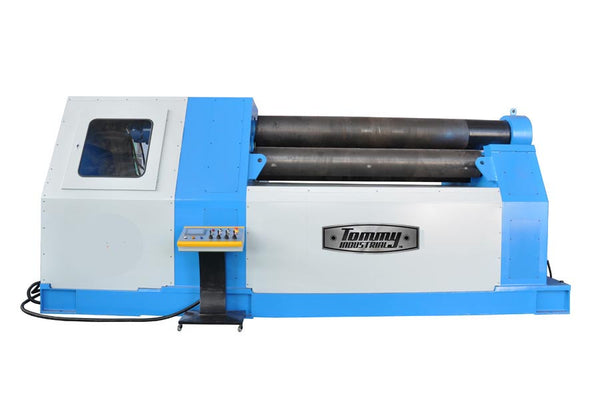

Tommy Industrial offers 38 models of Hydraulic Plate Roll Benders, each with 4 Rolls. The Tommy Industrial Plate Roll Bender line is heavy duty and recognized around the World for dependability and accuracy. The Tommy Industrial Roll bender is a staple is any fabrication shop that has a need to roll plate. For more information contact a Tommy Industrial Sales Rep today!
Item | Imperial | Metric | |
---|---|---|---|
Max. bending thickness | 0.6 in | 16 mm | |
Pre-bending thickness | 0.5 in | 13 mm | |
Max. working length of rolls | 100.4 in | 2550 mm | |
Yield limit | 245 Mpa | ||
Diameter of top shaft | 13 in | 330 mm | |
Diameter of bottom shaft | 11.8 in | 300 mm | |
Diameter of side shaft | 9.4 in | 240 mm | |
Main motor | 14.7 hp | 11 kW |
