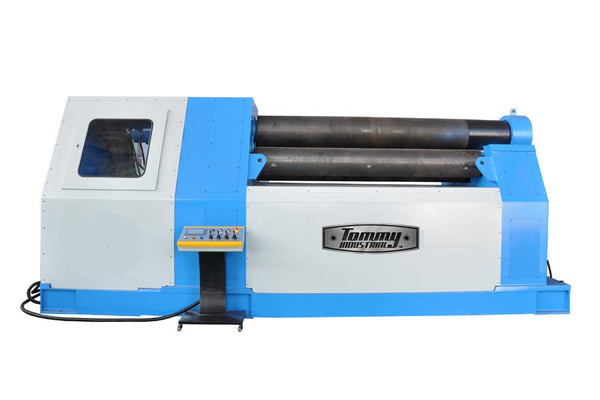

Tommy Industrial offers 38 models of Hydraulic Plate Roll Benders, each with 4 Rolls. The Tommy Industrial Plate Roll Bender line is heavy duty and recognized around the World for dependability and accuracy. The Tommy Industrial Roll bender is a staple is any fabrication shop that has a need to roll plate. For more information contact a Tommy Industrial Sales Rep today!
Item | Imperial | Metric | |
---|---|---|---|
Max. bending thickness | 1.6 in | 40 mm | |
Pre-bending thickness | 1.3 in | 32 mm | |
Max. working length of rolls | 100.4 in | 2550 mm | |
Yield limit | 245 Mpa | ||
Diameter of top shaft | 20.1 in | 510 mm | |
Diameter of bottom shaft | 18.1 in | 460 mm | |
Diameter of side shaft | 15.4 in | 390 mm | |
Main motor | 49.6 hp | 37 kW |
