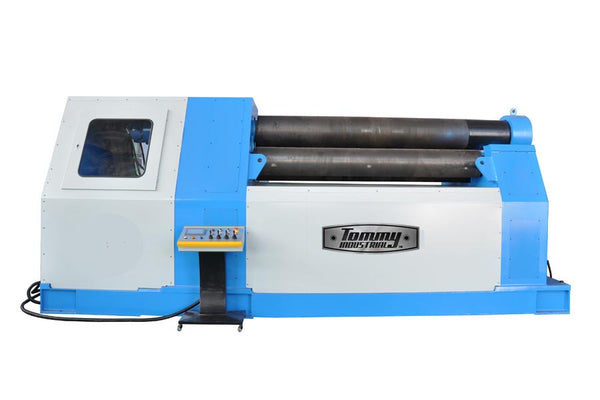

Tommy Industrial offers 38 models of Hydraulic Plate Roll Benders, each with 4 Rolls. The Tommy Industrial Plate Roll Bender line is heavy duty and recognized around the World for dependability and accuracy. The Tommy Industrial Roll bender is a staple is any fabrication shop that has a need to roll plate. For more information contact a Tommy Industrial Sales Rep today!
Item | Imperial | Metric | |
---|---|---|---|
Max. bending thickness | 1.4 in | 35 mm | |
Pre-bending thickness | 1.1 in | 28 mm | |
Max. working length of rolls | 80.7 in | 2050 mm | |
Yield limit | 245 Mpa | ||
Diameter of top shaft | 16.9 in | 430 mm | |
Diameter of bottom shaft | 15.4 in | 390 mm | |
Diameter of side shaft | 13 in | 330 mm | |
Main motor | 29.5 hp | 22 kW |
