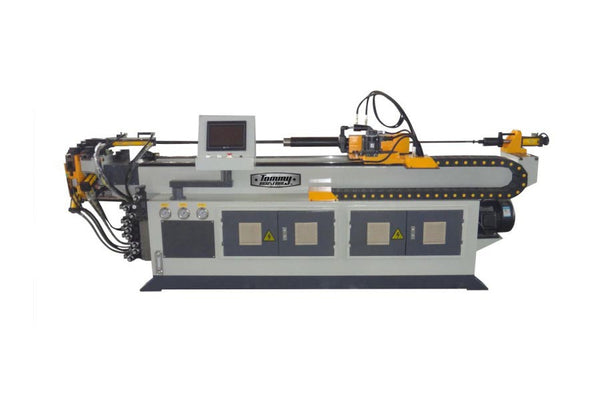

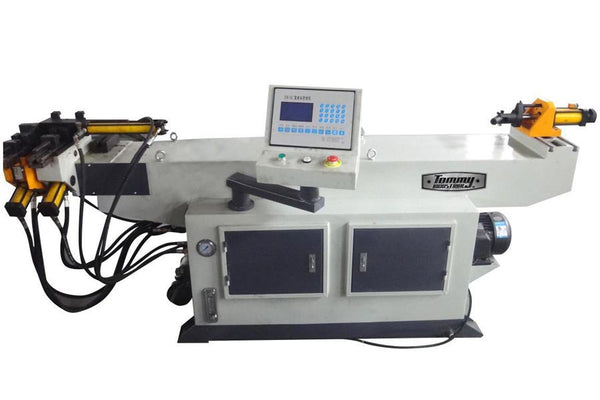

1.5" NC Tube and Pipe Bender

TI DW38NCB

Tommy Industrial NC Tube and Pipe Benders offer exceptional performance and are manufactured using high quality components resulting in a Pipe Bender the delivers exceptional performance.  All Tommy Industrial Tube and Pipe Benders are fully customizable to individual customer needs and specifications.  For more information, contact a Tommy Industrial sales representative today!  Check out the speciation’s:

Model TI DW38NCB Specifications
Item Imperial Metric
Max. Diameter x thickness Φ 1.5x0.08 in Φ 38x2 mm
Max. Bending radius R 10.2 in R 260 mm
Min. Bending radius R 0.60 in R 15 mm
Max. Bending angle 190° 190°
Standard wear core length 63 in 1600 mm
Control system Microcomputer Microcomputer
Max. Bender numbers 16 pieces 16 pieces
Parts in store 16x16 pieces 16x16 pieces
Hydraulic motor power 5.4 hp 4 kW
Max. System pressure 1740 psi 12 mpa
Hydraulic system control Solenoid valve Solenoid valve
Contain capacity 29 gallons 110 L
Measures and weights Size (length x width x height) 102x24x47 in 2600x600x1200 mm
Weight 1653 lbs 750 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
