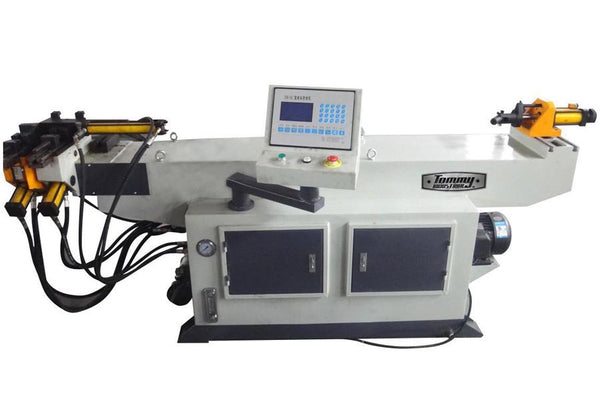

4.5" NC Tube and Pipe Bender

TI DW114NCB

Tommy Industrial NC Tube and Pipe Benders offer exceptional performance and are manufactured using high quality components resulting in a Pipe Bender the delivers exceptional performance.  All Tommy Industrial Tube and Pipe Benders are fully customizable to individual customer needs and specifications.  For more information, contact a Tommy Industrial sales representative today!  Check out the speciation’s:

Model TI DW114NCB Specifications
Item Imperial Metric
Max. Diameter x thickness Φ 4.5x0.6 in Φ 114x15 mm
Max. Bending radius R 26 in R 650 mm
Min. Bending radius R 3.5 in R 90 mm
Max. Bending angle 190° 190°
Standard wear core length 217 in 5500 mm
Control system Microcomputer Microcomputer
Max. Bender numbers 16 pieces 16 pieces
Parts in store 16x16 pieces 16x16 pieces
Hydraulic motor power 25 hp 18.5 kW
Max. System pressure 2031 psi 14 mpa
Hydraulic system control Solenoid valve Solenoid valve
Contain capacity 111 gallons 420 L
Measures and weights Size (length x width x height) 295x51x57 in 7500x1300x1450 mm
Weight 14330 lbs 6500 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
